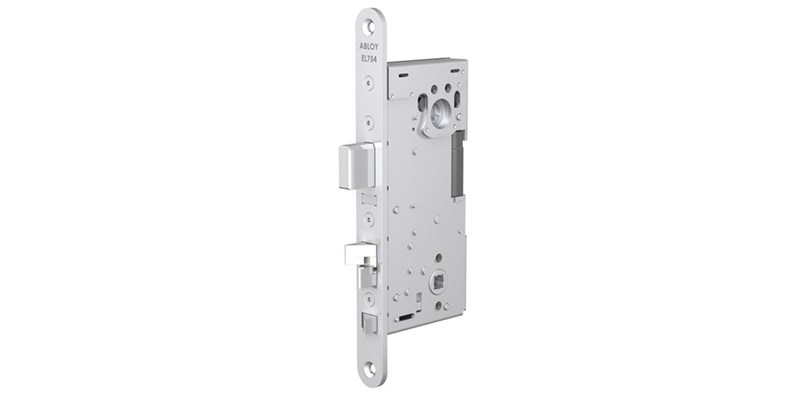

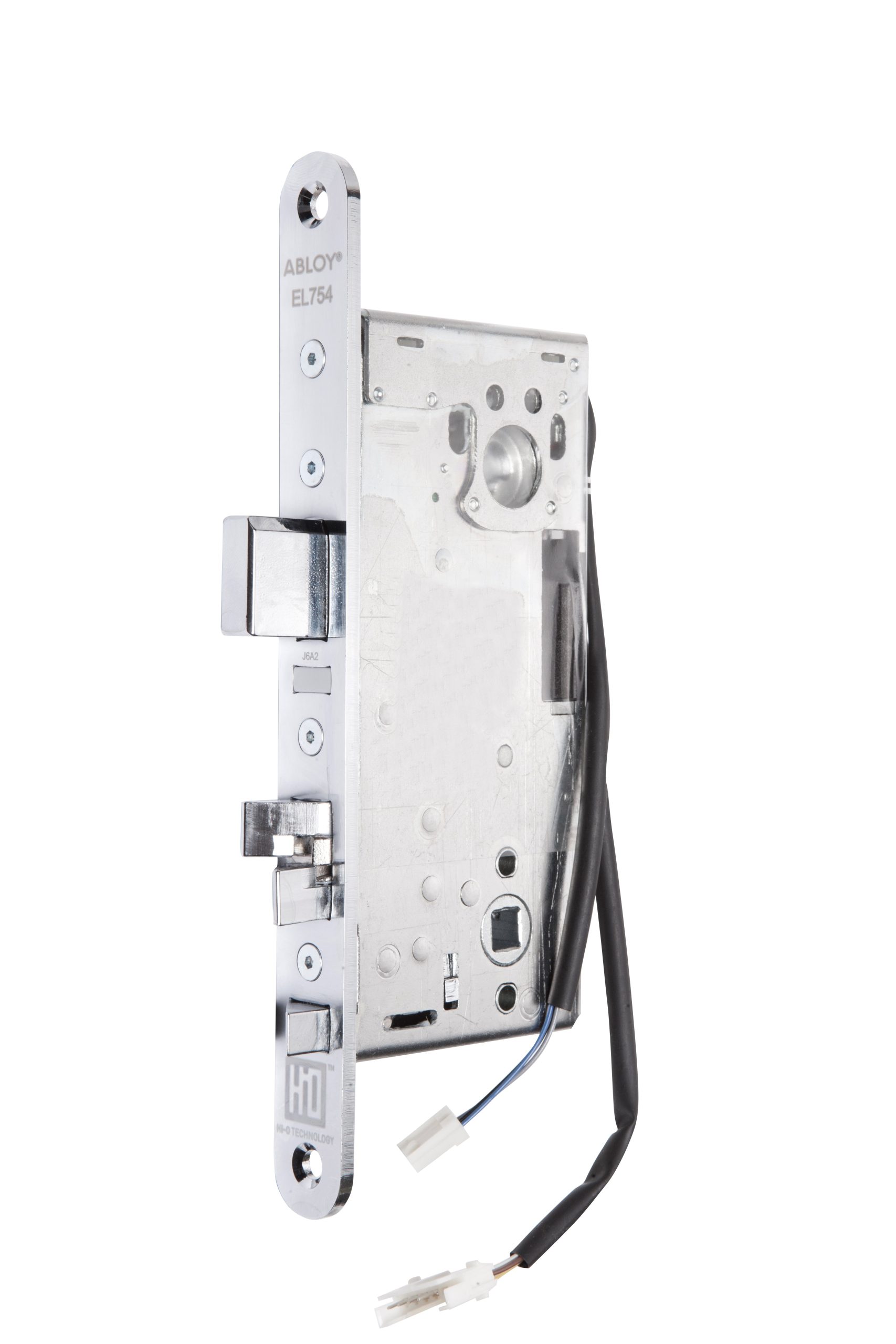

Abloy EL754 Electric Multifunction Motor Lock

Suitable for exterior doors requiring high security. Well suited for doors which are frequently used in daytime. The high security deadbolt is ideal for night time locking requiring greater strength and security. Can be used with fire rated doors. Includes two bolts which can be individually controlled. The double bolt action enables quick and easy locking. Ideal for use with access control systems and can be controlled by a variety of electrical impulse generating equipment such as card readers or timers.

From £2,289.59 (Inc. VAT)

By:



Quantity

+

ABLOY® EL754 is suitable for perimeter doors requiring high security. Typical applications
are e.g. doors of commercial buildings, offices and industrial premises.
ABLOY® EL754 includes two bolts of which each individually can be electrically controlled.
The lock has a double action bolt for quick and easy locking and is therefore especially
well suited for doors that are frequently used in daytime. The high security dead bolt is
ideal for night time locking requiring greater strength and security.
ABLOY® EL754 ideal for use with access control systems and can be controlled by a variety
of electrical impulse generating equipment, i.e. card reader, keypad or timer. The lock is
extremely suitable for use with automatic swing door operators.

FUNCTION

ABLOY® EL754 has three ways of operation which can be chosen remote controlled:
1. Open mode
– Dead bolt is withdrawn and double action bolt is not deadlocked.
2. Locked mode (Day function)
– Deadbolt is withdrawn all the time. Double action bolt is out and deadlocked.
– After an opening impulse the deadlocking of double action bolt is released. After door
use or delay double action bolt is deadlocked immediately by spring force through trigger
bolt.
– Handle use is possible on locked mode only.
3. Security mode (Night function)
– Dead bolt and double action bolt are out and deadlocked.
– After an opening impulse the dead bolt is withdrawn and the deadlocking of double
action bolt is released. After door use or delay double action the bolt is deadlocked
immediately by spring force through trigger bolt. Dead bolt is thrown and deadlocked
by motor and/or spring.

Please see Product Information tab above for further information and product data sheet
