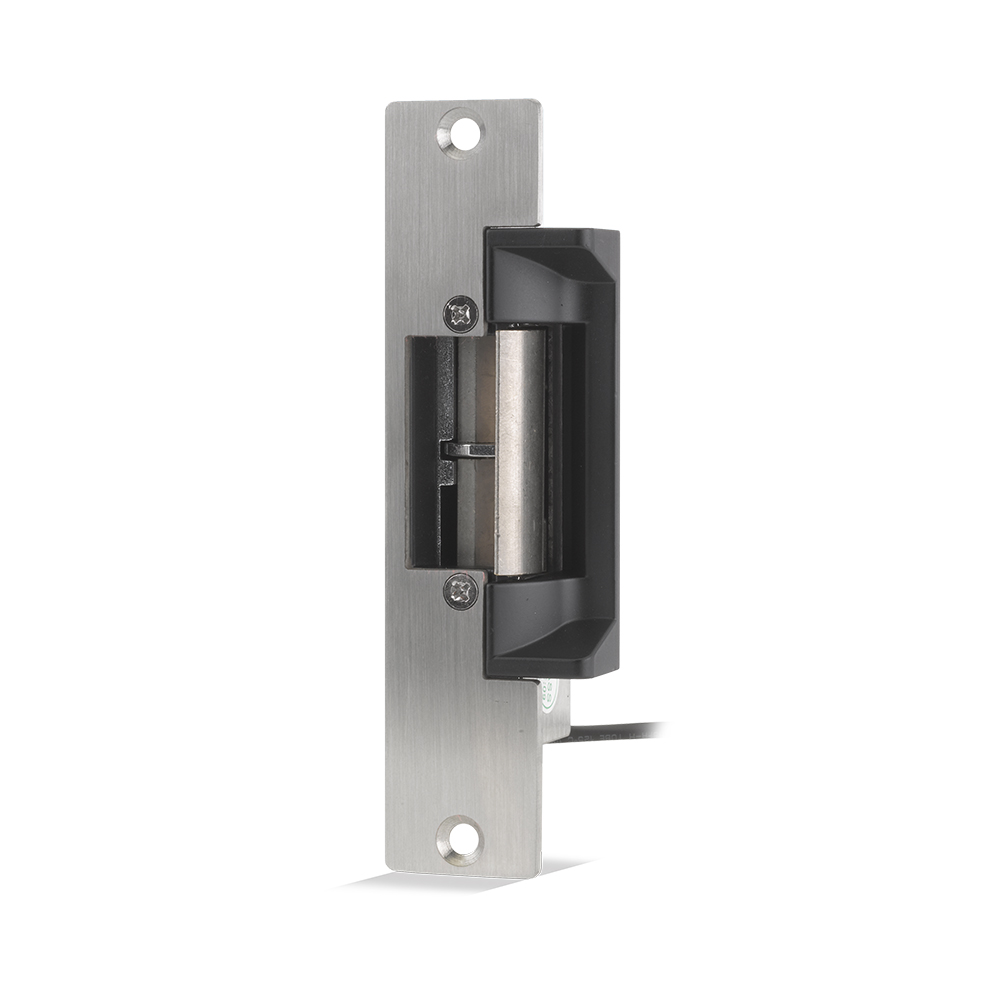

ANSI Style Electric Release 12VDC

ANSI style mortice electric release lock is suitable for low to medium traffic doors and available in fail secure and fail safe versions.

From £41.99 (Inc. VAT)

By:

Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Quantity

– +

• Operating voltage 12Vdc
• Stainless Steel
• Fail-Safe (Power to Lock) Product Code 10145, Fail-Secure(Power to Unlock) Product Code 10143                    • ANSI style release (Budget)

PLEASE SEE ATTACHED DATA SHEETS FOR DIMENSIONS IN PRODUCT INFORMATION TAB ABOVE

Voltage tolerance: ±10%.
• Current draw: 200mA (at temperature
20°C).
• Operating temperature: -10~45°C
(14 to 131°F).
• Lock’s surface temperature: Current
temperature ±20% (when power is on).
• Bolt status output indicates bolt locked
or unlocked status. (SPDT rated 3A at
30Vdc).
• Humidity: 0~95% non-condensing.
• Tested to 5000,000 cycles
• Horizontal or vertical installation.
