CISA 11610 Electric Rim Lock with release button

CISA 11610 electric rim lock dead locking latch bolt system wooden doors internal manual exit button, supplied with 3 keys. check handling options

From £128.39 (Inc. VAT)


Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Refer to the handing diagram below for help



The CISA 11610 at Electric Locking Systems features a voltage of 12V AC with 60mm backset and comes in fail secure right hand, left hand, outward and inward opening versions. Please refer to the handing diagram for correct ordering of the CISA 11610. With a 500kg lateral thrust and 200kg front load, the 11610 electric lock is ideal for internal doors in conjunction with a range of access control systems or released via the internal exit button or external rim cylinder. It features a steel grey case and striker.

Technical Features

  • Certified up to Security grade 3 according to EN 14846
  • Protective barrier against attempts at picking the lock release
  • Dead-locking latch bolt: when the door/gate is locked, the withdrawal of the deadbolt blocks the latch bolt
  • The button on the lock (fitted on certain models) can be blocked by the key, leaving the door/open always open (hold open function)
  • Grey painted steel case and floor striker
  • 12V ac CE
  • Current absorption 2.5A
  • External cylinder length 55 mm

The CISA 11610 is supplied with:

  • Striker

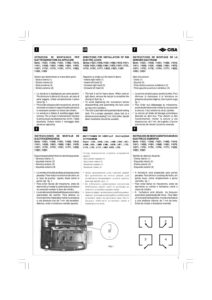

  • Instruction sheet
  • Fixing screws
  • 3 keys

Order the CISA 11610 electric rim lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.

Choose Options & Add to basket
