CISA11931 Electric Rim Lock Inner Snib Key Override

CISA 11931 electric rim lock inner snib key override is a dead locking latch bolt system doors or gates supplied with 3 keys. Please refer to handing diagram

From £149.99 (Inc. VAT)

By:

Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Refer to the handing diagram below for help

Quantity

– +

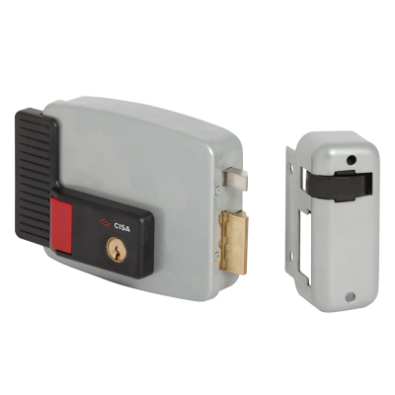

The CISA 11931 electric rim lock with inner snib and key override features a voltage of 12V AC and 60mm backset. The electric lock comes in in fail secure right hand and left hand inward and opening versions. Please use the handing diagram to determine which one you need. The CISA 11931 is a high security lock that gives doors and large entrance doors without deadbolts more security. The dead locking latch bolt feature ensures that when the door is locked, the withdrawal of the deadbolt automatically blocks the latch bolt.

Protect against forced entry with the CISA 11931, certified up to Security grade 3 according to EN 14846, which ensures it is protected against entry attempts in the electric hook bolt area.  A drop in voltage doesn’t prevent the lock from opening due to the adjustable hook bolt system. The button on the lock can be blocked by the key, in order to leave the door or gate open.

The CISA 11931 electric rim lock is certified in compliance with European standard EN 14846:08: grade 3 Security (500 kg lateral thrust and 200 kg front load)

Technical Features

For installation information please see above product information tab.

  • Certified up to Security grade 3 according to EN 14846
  • Protective barrier against attempts at picking the lock release
  • Dead-locking latch bolt: when the door/gate is locked, the withdrawal of the deadbolt blocks the latch bolt
  • When voltage is below the minimum rate (12V), the adjustable electric release system ensures the lock can always be opened electrically
  • The button on the lock (fitted on certain models) can be blocked by the key, leaving the door/open always open (hold open function)
  • Grey painted steel case and floor striker
  • 12V ac CE
  • Current absorption 2.5A
  • External cylinder length 55 mm

The CISA 11931 is supplied with:

  • Striker
  • Instruction sheet
  • Fixing screws
  • 3 keys

Order the CISA 11931 electric rim lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
