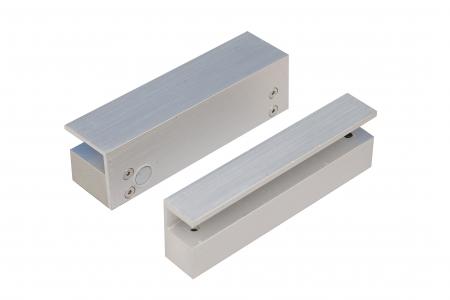

RGL DBGLS150 Drop bolt glass doors & housing
Fail safe drop bolt suitable for use on glass doors and frames, and is suitable for double action in swinging and outward swinging doors.
By: RGL
This solenoid bolt is ideal for use on frameless glass doors with a glass header due to the clamp fixing method. Suitable for single or double-action doors it provides a secure locking method, and includes door position monitoring and variable re-locking.
Suitable for frameless glass doors and headers
• Fail safe (power to lock)
• Door position monitoring
• Variable re-lock delay
• Low holding current
• Anti-tamper design
• Suitable for single or double-action door
Max. glass thickness: 14mm
• Min. air gap required: 6mm
• Input voltage: 12Vdc ±10%
• Activating current 900mA
• Holding current 300mA
• Bolt diameter 16mm
• Bolt throw 16mm
• Monitoring contacts: SPDT (COM, NO, NC)
rated 250mA @ 30Vdc
• Operating temp: -10°C to 45°C
• Humidity: 0~95% non-condensing
DBGLS150
Technical specifications
- Operating voltage – 12VDC
- Standby current – 120mA
- Operating current – 900mA
- Suitable for double action in swinging and out swinging doors.
Features:
- Robust aluminium
- Fail-safe operation
- Long life drop bolt
- Auto locking after 3, 6 or 9 seconds
- Greater than 500,000 operation
- Auto relocking timer setting
