Deedlock External Magnetic Locks
Secure any private or restricted access perimeter with Deedlock’s highly durable external magnetic locks, specifically designed for external gates, either wooden and metal. Deedlock’s external magnetic lock is specifically manufactured and designed for external wooden or metal gates, to allow access to authorised persons only, such as vehicle and pedestrian entrance gates.
By: CQR, Deedlock, Securefast
Deedlock’s external magnetic lock is specifically manufactured and designed for external wooden or metal gates, to allow access to authorised persons only, such as vehicle and pedestrian entrance gates.
We stock the following:
- AEMGATE/F/S – External Magnetic Lock Side and Face Fixed & Monitored
- AEM/MINGATE/F/S – External Mini Gate Magnetic Lock Side and Face Fixed & Monitored
- Z&L Brackets for inward opening gates, to order please see you may also need above left

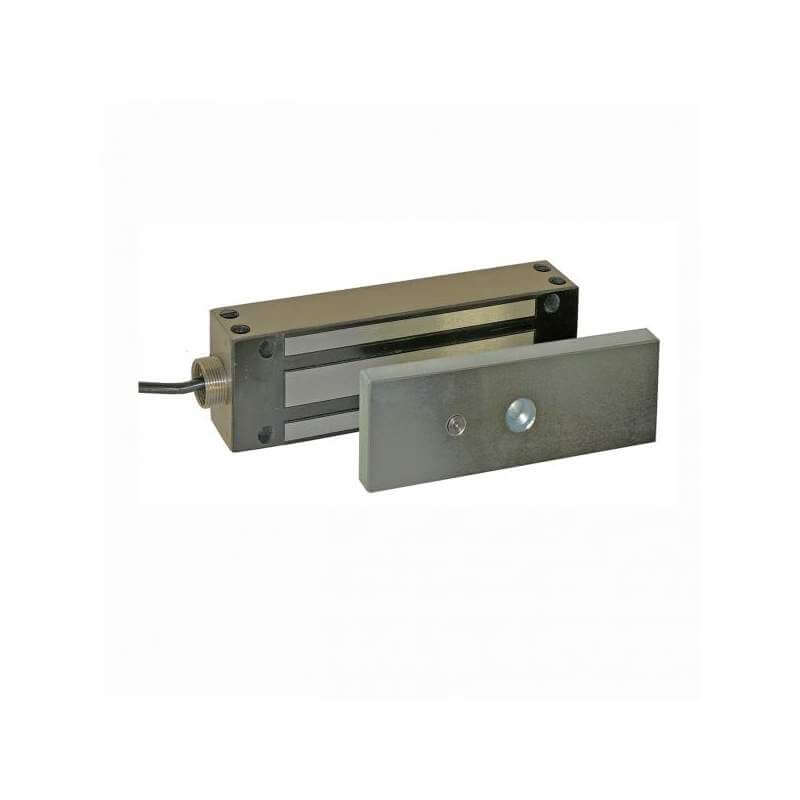

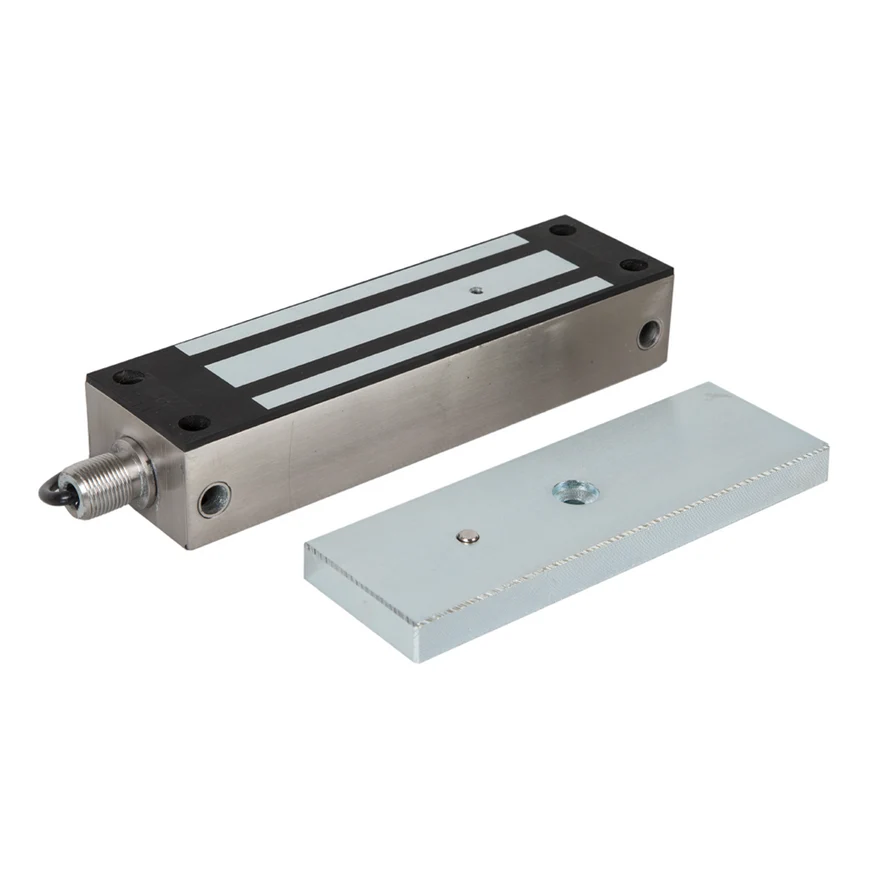

The stainless-steel maglock is available in a voltage of 12DC & 24DC, with a holding force of 1200lbs/544kg. It is suggested that more than one of these magnetic door locks is attached for doors or gates that exceed the holding force of 1200lb/544kg to prevent any distortion or warping.
To enable maximum protection, the magnetic lock consists of reed switch monitoring to enable access to authorised persons only.
For further product and installation information please see product information tab above.
*CE Marked
Product Specification | |
Voltage | 12V & 24V DC |
Holding Force | 1200lb/544kg or 500lb/270kg |
AMP | 0.5/0.25 |
Fixing | Side & Face Fixed |
Monitor Type | Monitored |
