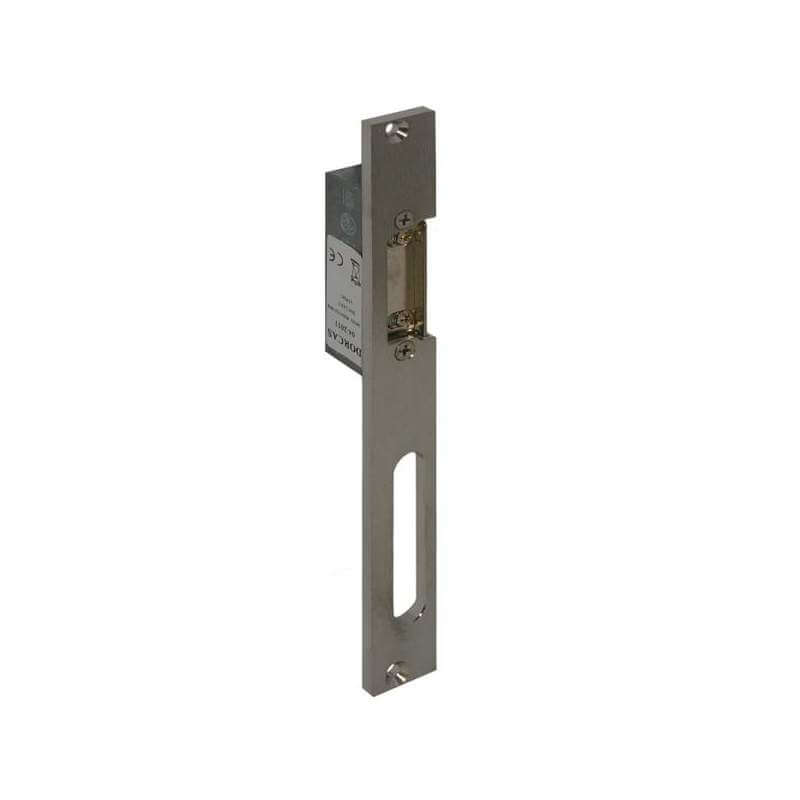

Dorcas UPVC Door Mortice Sash Electric Lock Release

The Dorcas UPVC door mortice sash electric lock release is ideal for plastic doors, and is designed to replace the centre latch and deadbolt keep of a sash lock.

From £117.59 (Inc. VAT)


Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

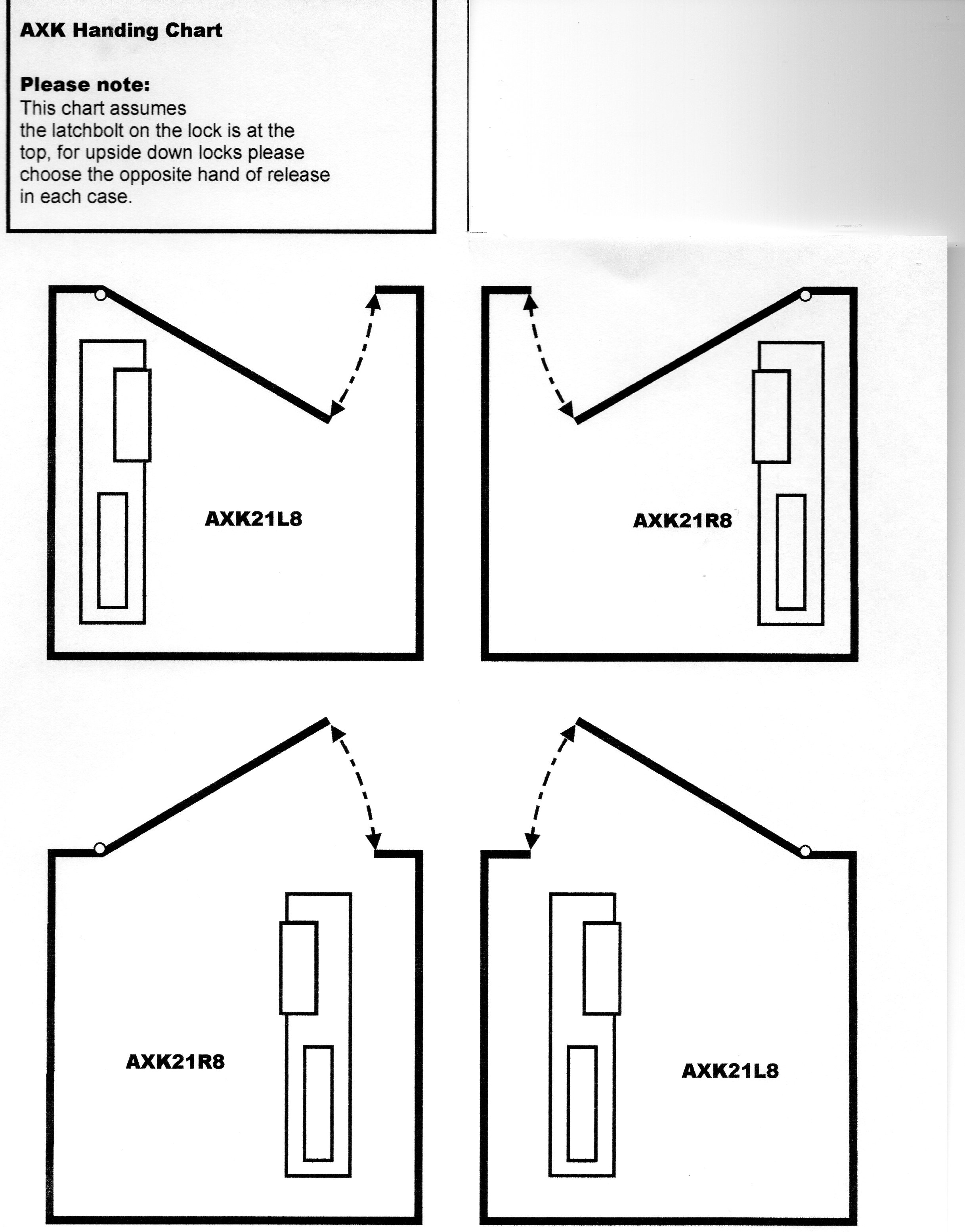

Refer to the handing diagram below for help

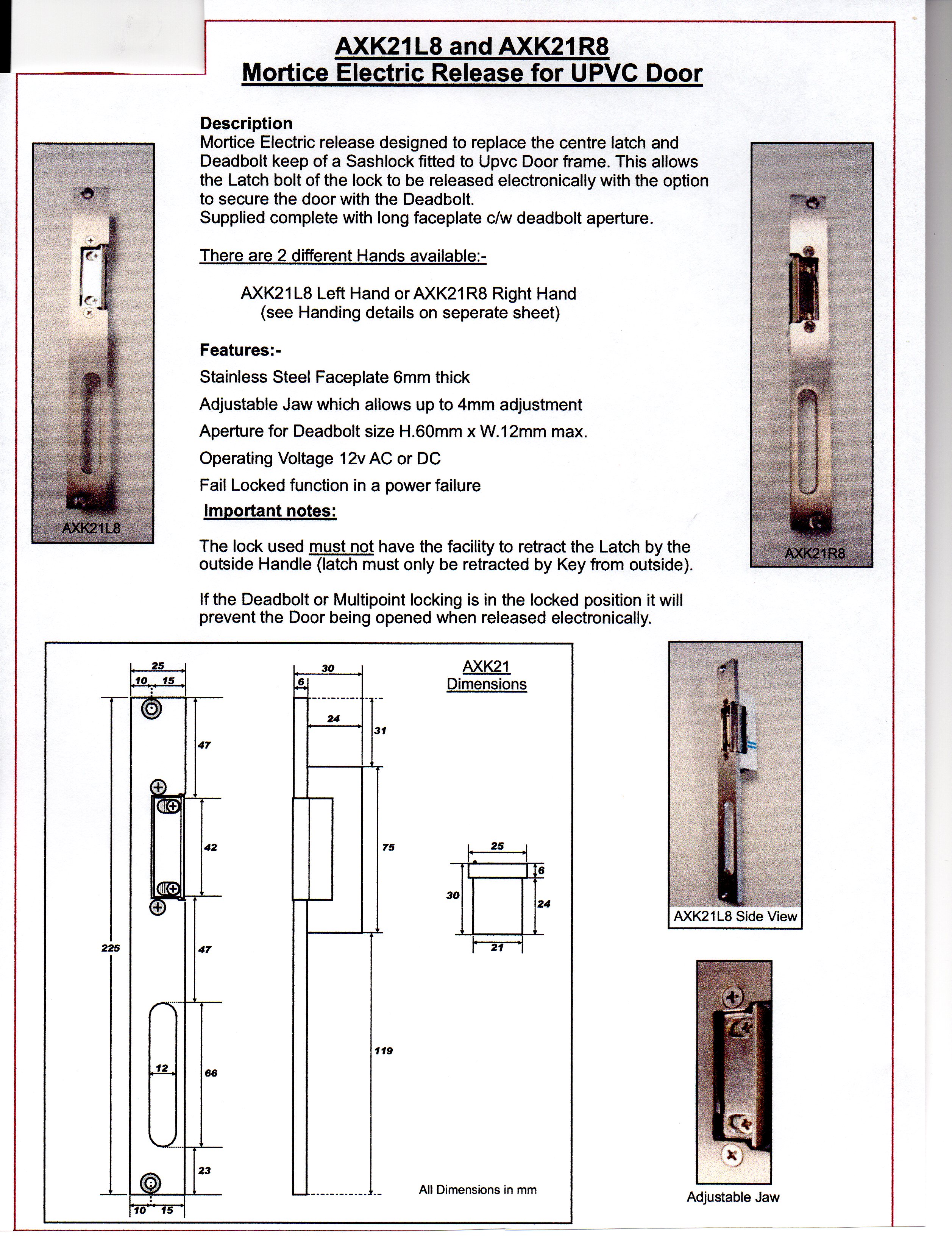

The Dorcas mortice sash lock is a UPVC door electric lock release that enables UPVC doors to lock and unlock electronically.  The Dorcas lock allows the latch bolt of the lock to be released electronically with the option to secure the door with the deadbolt.

The fail secure lock will work in conjunction with access control systems or entry phone systems.

Supplied complete with long faceplate c/w deadbolt aperture.


  • Stainless steel faceplate 6mm thick
  • Adjustable Jaw which allows up to 4mm adjustment perture for Deadbolt size H.60mm x W.12mm max.
  • Operating Voltage 12v AC or DC
  • Fail locked function in a power failure

Please refer to the handing diagram to ensure you order the correct lock, please see above product information tab.

Please note:

The lock used must not have the facility to retract the latch by the outside handle (latch must only be retracted by key from outside).

If the deadbolt or multipoint locking is in the locked position it will prevent the door being opened when released electronically.

Order the Dorcas UPVC door electric lock release online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.

Choose Options & Add to basket
