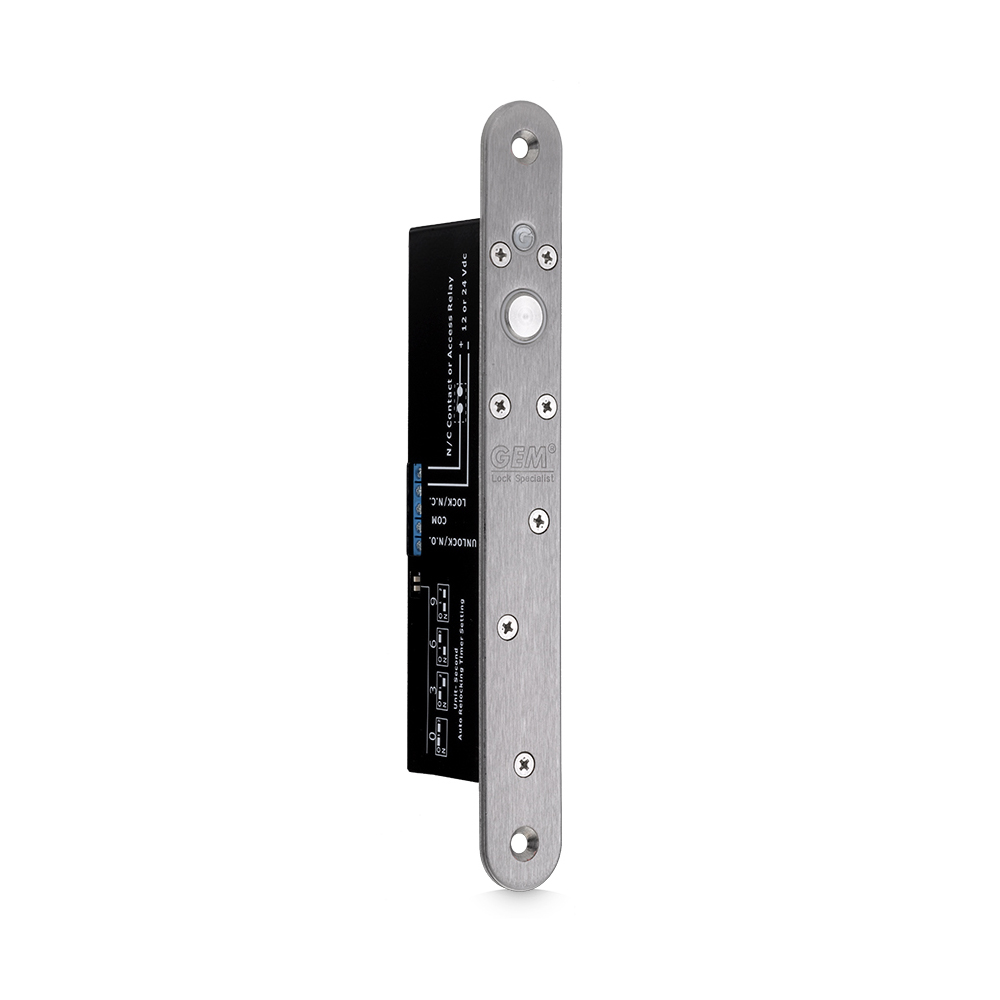

GEM EB180 Narrow Style Electric Solenoid Drop Bolt

GEM EB180 narrow style mortice solenoid bolts provide a high level of security , using a strong steel bolt which provides a secure physical barrier,

From £133.19 (Inc. VAT)

By:



Quantity

+

The Fail-Safe series electric drop bolt can be mounted horizontally or vertically and provides various functions. It is designed for use on double action doors (or single inswing/outswing doors) and ideal for applications where an electromagnetic lock or electric strike is impractical. Surface mount models are also available for hollow metal door or frameless glass door applications.



Features

◆ Fail-safe (Power to lock)
◆ Vandal resistant – The lock cannot be deceived by slipping a metal object between lock and the strike plate
◆ Relock time delay



Specification

◆ Mode: Fail-Safe
◆ Operating Voltage: 12/24 VDC
◆ Operating Temperature: -10°C~+49°C
◆ Humidity: 0~85% non-condensing
◆ Current Draw
– Pull in: 0.9A/12V; 0.45A/24V;
– Holding: 0.15A/12V; 0.1A/24V
◆ Bolt Status Sensor Output (Both)
◆ Relock Time Delay



CP21-N Wiring Diagram

Choose Options & Add to basket
