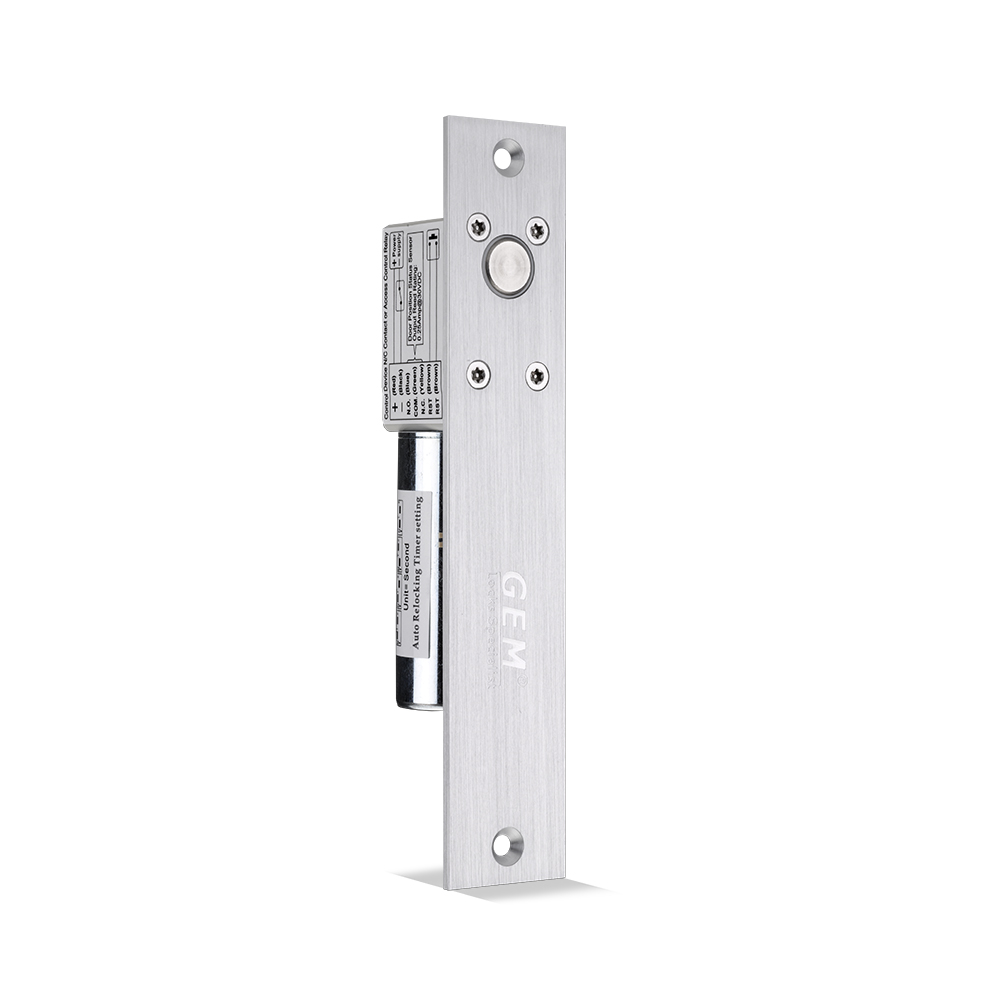

Gem EB200 Solenoid Bolt Mortice 12Vdc

Electrical solenoid mortice bolt lock specifically designed for access control systems such as card & pin or proximity & pin.

From £116.39 (Inc. VAT)




  • Voltage tolerance: ±10%.
  • Fail-Safe (Power to Lock)
  • Current draw: Pull in 0.9A, Holding 0.3A at 12Vdc (at temperature 20°C).
  • Operating temperature: -10~45°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Door position status output indicates door opened or closed status (Reed rated 0.25A at 30Vdc).
  • Humidity: 0~95% non-condensing.
  • Horizontal or vertical installation.
  • Tested to 500,000 cycles.
  • Weight: 0.6kg (approx).

CP21-N Wiring Diagram
