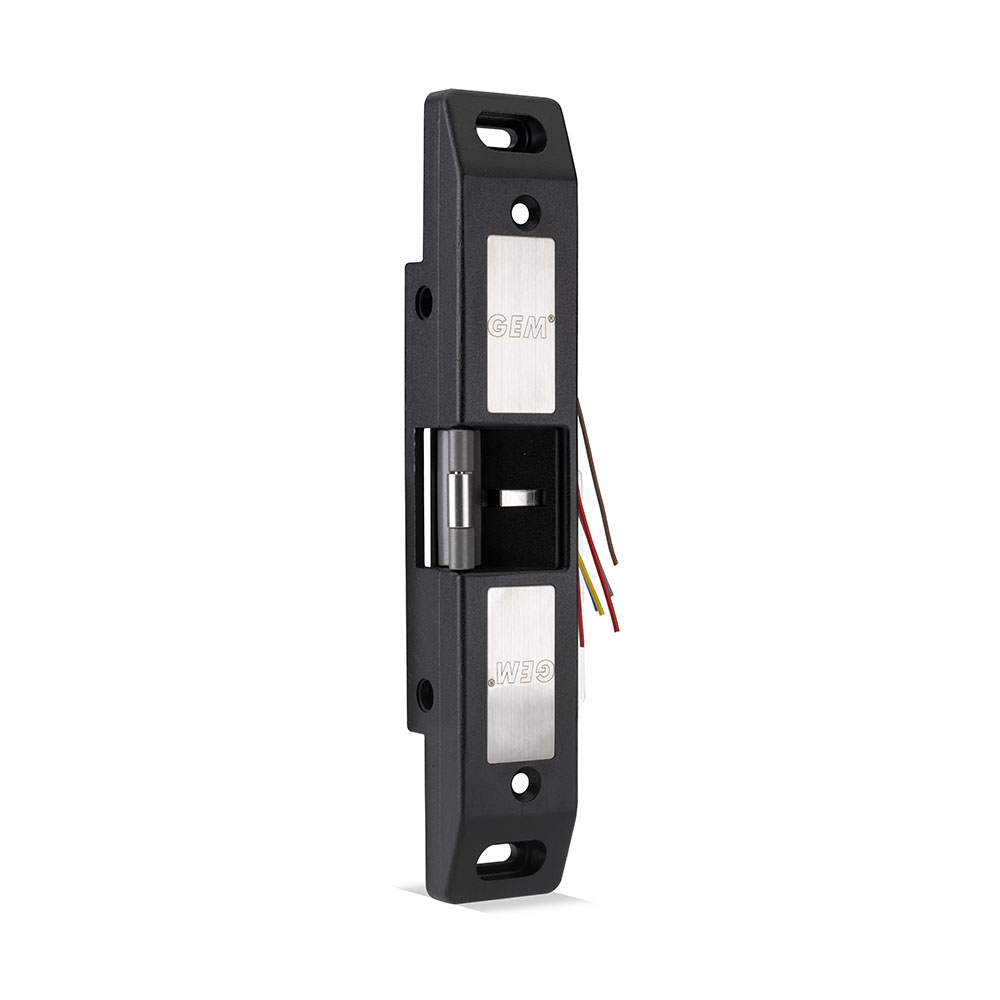

GK1100 Electric Release for Panic Bar Latches

GEM 12-28v AC/DC Lock Release Panic Latches. designed for use with panic bar for exit doors allow exit door used keypad or access control system So that you can turn a door which is a fire door into a entrance door with the use of access control . By putting a keypad ,or card reader or blue tooth reader on the outside . But it still will able to be used as a fire door in the case of fire .
If not sure why not talk to our tech team for free advice form our talk to our tech team via email at
sales@electriclock.co.uk or call 01202 941050 or visit our website at electriclock.net and use live chat
phone at 01202 941050 or on webchat at electriclock.net

From £284.39 (Inc. VAT)

By:



Quantity

+

  • Operating voltage 12~28Vac/Vdc
  • Material: Metal surface
  • Fail-Safe/Fail-Secure (Selectable)
  • Long life solenoid
  • 17mm maximum latch throw
  • Lock & unlock / door status output
  • Suitable with panic bar (Latch)

Description

  • Voltage tolerance: ±15%.
  • Current draw: 230mA at 12Vdc, 140mA at 28Vdc, 440mA at 12Vac, 230mA at 28Vac (at temperature 20°C).
  • Operating temperature: -10~45°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Reed switch rating: 1A/125Vac.
  • Humidity: 0~95% non-condensing.
  • Tested to 1,000,000 cycles (solenoid).
  • 1500lbs jaw strength pulls testing.
  • Net Weight: 752g.
CP21-N Wiring Diagram
