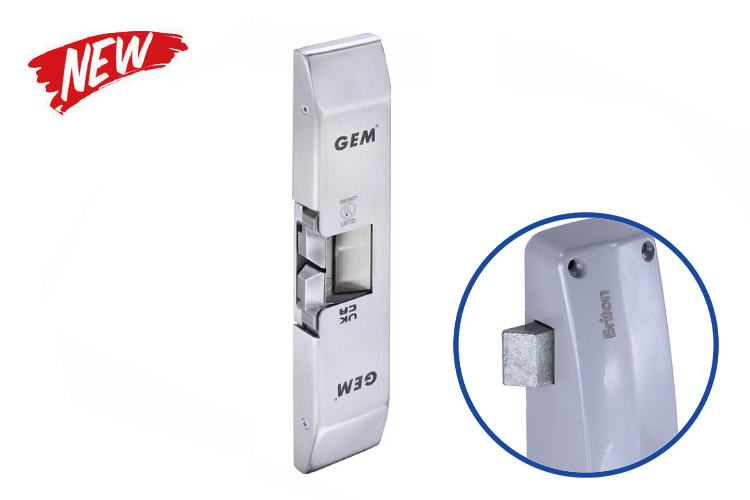

GEM GK1279M Emergency Exit latch or Push pad Electric Rim Strike

GK1279 series surface mount electric rim strikes are suitable for indoor applications and are designed specifically
for emergency exit latch or push pad. The body construction is stainless steel and is field selectable for fail-safe or
fail-secure operation.

FOR PRODUCT INFORMATION AND INSTALLATION GUIDE PLEASE SEE PRODUCT INFORMATION AND VIDEO TAB ABOVE

Field selectable 12/24VDC
Standard Features
GK1279 Rim Strike Series
Static strength 1,500 lbs (680Kg)
Dynamic strength 70 ft-lbs
Field reversible fail-secure or fail-safe
Electric Strikes
Surface Mount Strikes for Pullman Latch Exit Devices
Endurance rating 250,000 cycles factory tested
Brushed stainless steel finish (US32D)
Latch monitor (For model with suffix M)

Operating Voltage: 12/24VDC
Specification
Operating Temperature: 14°F to 120°F (-10°C~+49°C)
Humidity: 0~85% non-condensing
Current Draw: 540mA/12VDC, 270mA/24VDC
Housing Thickness: 3/4″ (19mm)
Field Reversible Fail-Safe or Fail-secure
