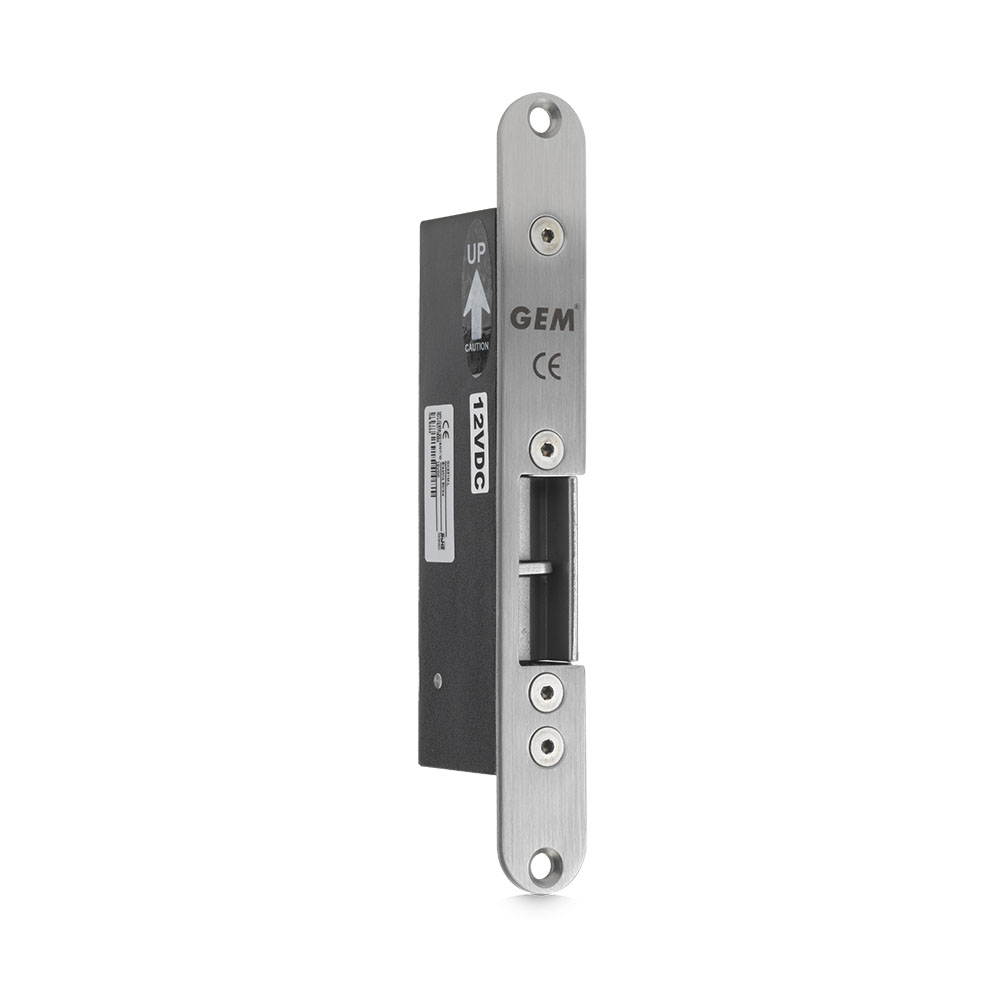

Gem GK231M Monitored Electric Release Fire Rated

Fire rated to 1 Hour with 1500lb holding force and capable with up to 500lbs of side force.

From £361.61 (Inc. VAT)


Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Quantity

+



UK FIRE TESTED BS EN1634:1 FD30 & FD60 DOORS

FD30 + FD60 Rating
• Operating voltage 12Vdc
(24Vdc available to order)
• Stainless Steel
• Fail-Safe
• 1500lbs holding force
• 500lbs side-load
• 1 Hour UK fire certificate

GEM has  designed this mortice type strike release which has been tested in accordance with fire resistance standards BS EN 1634-1:2014 and BS EN 1363-1:2012, providing a solution for scenarios where access control is required on a fire door.

With its stainless steel construction, rigorous endurance testing to over 250,000 cycles, and impressive holding force of 680kg (1,500 lbs), this is a truly robust and solidly built door release mechanism, and what’s more, it can still operate with up to 227kg of side-load pressure on the door (thats an impressive 500lbs of preload).

What’s more, these strike releases offer a monitoring output also; which means you can use the separate output from the strike to allow a monitoring system or similar, to know whether or not the trigger inside the strike (which is activated by the latch entering it), is being compressed or not.

Capable of accommodating a full 12mm of latch throw, the jaw on these is suited to most latches when considering the standard gap between the door and the frame, and of course with fire door use in mind, these come as fail-safe, so in the event of power failure the latch can simply pass through the strike.
