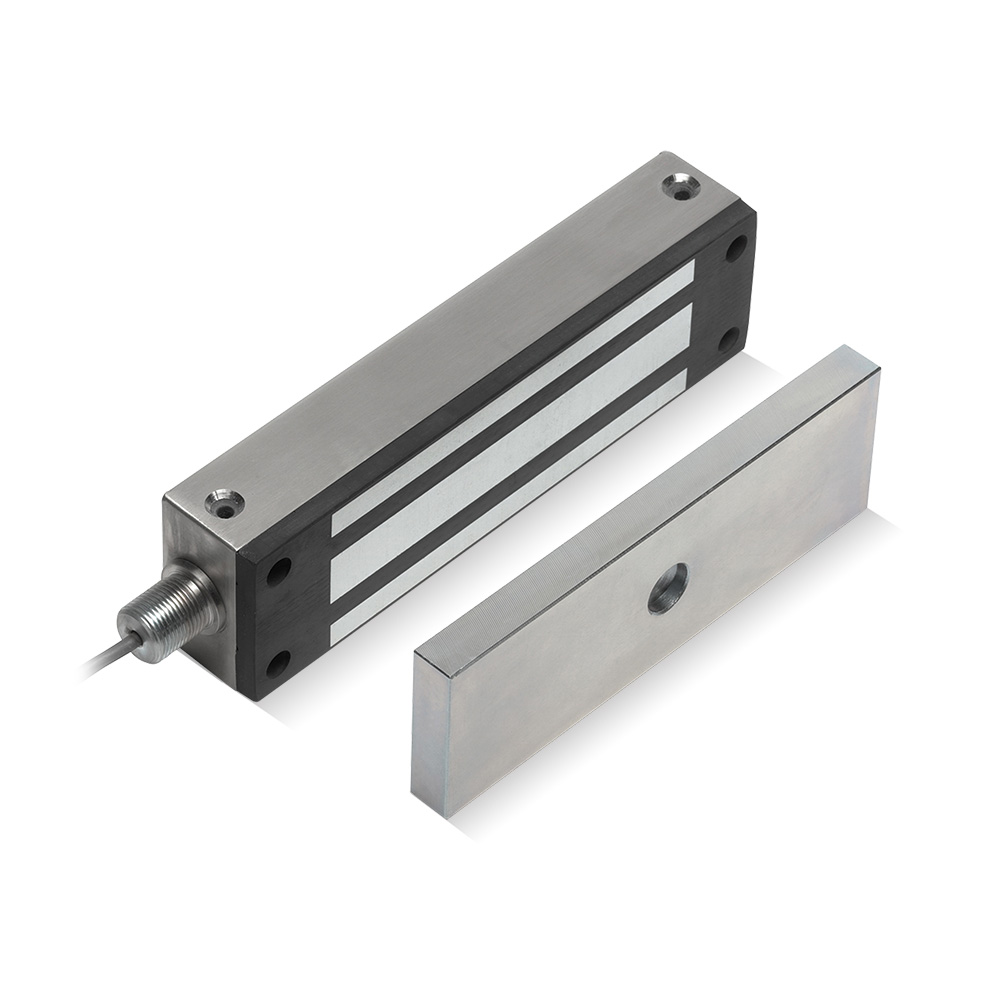

GEM GL1200NTBR External Standard Stainless Steel Magnet

Secure any private or restricted access perimeter with GEM'S highly durable external magnetic locks, specifically designed for external gates, either wooden or metal.

From £148.79 (Inc. VAT)

By:



Quantity

+

  • Operating voltage 12~24Vdc
  • Stainless Steel
  • Holding force up to 1200lbs (545kg)
  • Weather resistant: IP67
  • Vandal resistant
  • Standard or face fix

    Description

    • Voltage tolerance: ±15%.
    • Current draw: 460mA at 12Vdc (at temperature 20°C).
    • Operating temperature: -10~55°C (14 to 131°F).
    • Lock’s surface temperature: Current temperature ±20% (when power is on).
    • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
    • Humidity: 0~95% non-condensing.
    • Special Zinc finishes for magnet and armature plate.
    • Weight: 5.0kg (approx).
    • If You Require Z&L Brackets please see above you may also need

CP21-N Wiring Diagram
