Gem GS705-30&35 Magnetic Shear Locks

Secure your property with GEM GS705 discreet and versatile magnetic shear locks, suitable for internal timber and metal doors, both single or double with an incredible 2000lbs holding force.

From £335.99 (Inc. VAT)

By: ,



Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Quantity

+

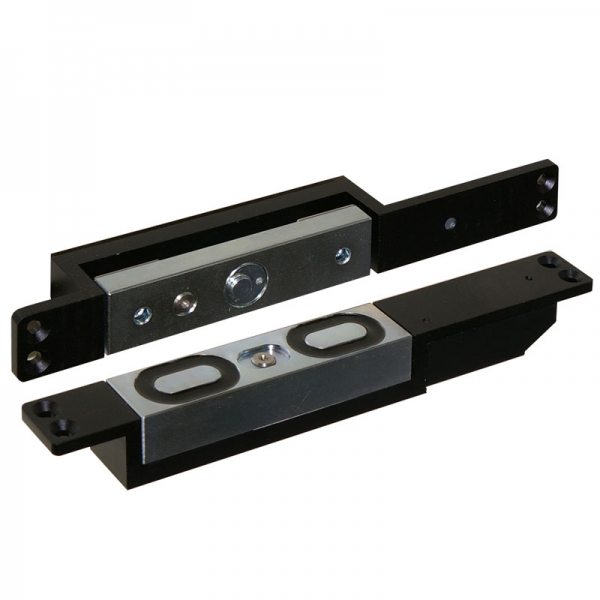

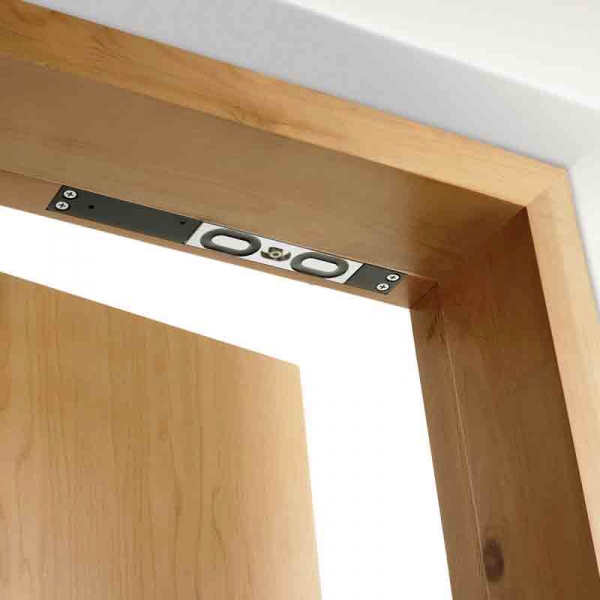

Discover the GEM GS705  magnetic shear lock, ideal if you need to conceal a lock but ensure a high level of security with a holding force up to 2700lbs. The shear maglock can be fitted to timber and metal doors and appears fully concealed within the frame. It can be used horizontally in the transom or fitted vertically in the frame jamb.

The GEM GS705 Shear range of mortice magnetic shear locks provide a stronger holding force due to a central shear pin. They can be installed on a variety of door types including aluminium, wooden, steel or exit doors. The GEM GS705 shear locks are designed for flush fixing into the frame and door.
In the event of a power failure the lock will release (fail safe option). There is also an adjustable 1-6sec timer to allow the door to close before the power is applied.

There are 2 options

The GS705-30 30mm width & GS705-35 35mm width.

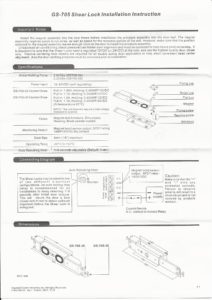

For installation and dimensions please see product information tab above



GEM GS705 Shear Range Specifications:

Description GS705-30

  • Voltage tolerance: ±10%.
  • Current draw:
    Pull in: 2.2A, Holding: 0.5A at 12Vdc.
    Pull in: 1.4A, Holding: 0.3A at 24Vdc.
  • Operating temperature: -30~55°C (-22 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 1A at 30Vdc).
  • Humidity: 0~95% non-condensing.
  • Horizontal or vertical installation.
  • Special Zinc finishes for magnet and armature plate.
  • Housing black powder coated.
  • Weight: 1.8kg (approx).
CP21-N Wiring Diagram

Description GS705-35

  • Voltage tolerance: ±10%.
  • Current draw:
    Pull in: 2.2A, Holding: 0.5A at 12Vdc.
    Pull in: 1.4A, Holding: 0.3A at 24Vdc.
  • Operating temperature: -30~55°C (-22 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 1A at 30Vdc).
  • Humidity: 0~95% non-condensing.
  • Horizontal or vertical installation.
  • Special Zinc finishes for magnet and armature plate.
  • Housing black powder coated.
  • Weight: 1.8kg (approx).
CP21-N Wiring Diagram
