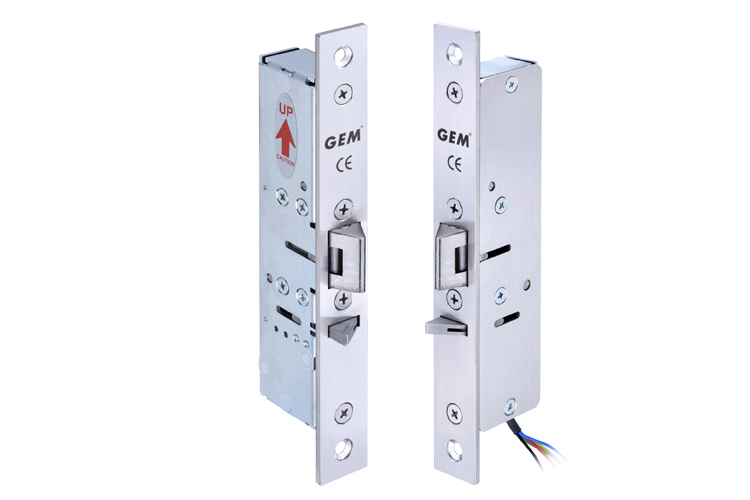

GEM ML450M Monitored Electric Lock

The ML-450M series electric locks are high performance locks for single/double action swing doors and
designed for installation on any type of door and frame. They offer different types of double action latch bolts,
allowing deadlocking automatically when the door is closed to be secured for ease of use and convenience.
Standard Features
For single/double action swing doors
For narrow frames (25 mm wide faceplate)
Brushed stainless steel construction Latch Status Output Contact Rating: 1A/125VAC
Current Draw: 280mA/12VDC; 180mA/24VDC
Specifications
Operating Voltage: 12~24VAC/DC
Endurance Rating: 250,000 cycles (Factory tested)

Robust, Fail-Safe & Preload Capable
The ML-450M series features stainless steel construction and is designed with a high preload release capability
of up to 500 lbs of preload which allows smooth operation under varying loads on the doors and overcomes door
preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Fire Resistant
Fail-safe operation
Horizontal/Vertical installation
Door/Latch monitor
Static Strength: 1,500 lbs
Preload: 500 lbs of pressure strength
