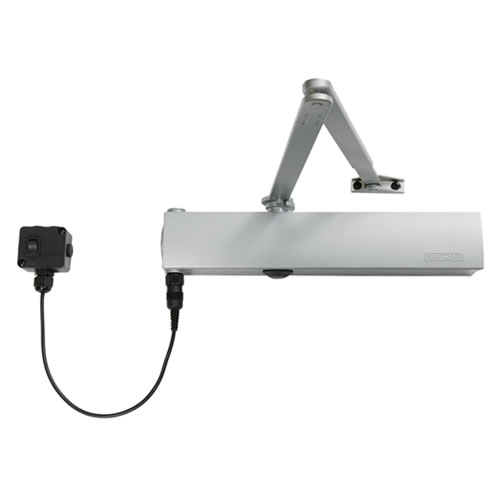

Geze TS 4000 E Hydraulic Overhead Door Closer

The Geze TS 4000 E overhead hydraulic door closer features an electro hydraulic hold open function and is authorised for use as a fire and smoke door closer.

From £457.19 (Inc. VAT)


Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

24V DC
TS400 E



The TS 4000 E overhead hydraulic door closer at Electric Locking Systems is ideal for use as a smoke or fire door closer. The electro hydraulic hold-open device ensures that in the event of fire or a power failure, the hold-open function is released and the door closes safely. The closing force and the thermo stabilised closing speed with large optical display can be easily adjusted from the front.

Product features:

  • Door closer TS 4000 E with link arm for doors with up to 1400 mm leaf widths
  • Operating voltage 24 V DC
  • Closing force, infinitely adjustable EN 1-6
  • End stop adjusted using the arm, closing speed can also be adjusted
  • Optical closing force display
  • Hold-open range 80°-180° (electro hydraulic)
  • Low power consumption
  • Can be used for right and left swing doors without conversion
  • For fire and smoke protection doors

Order the Geze TS 4000 E overhead hydraulic door closer online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
