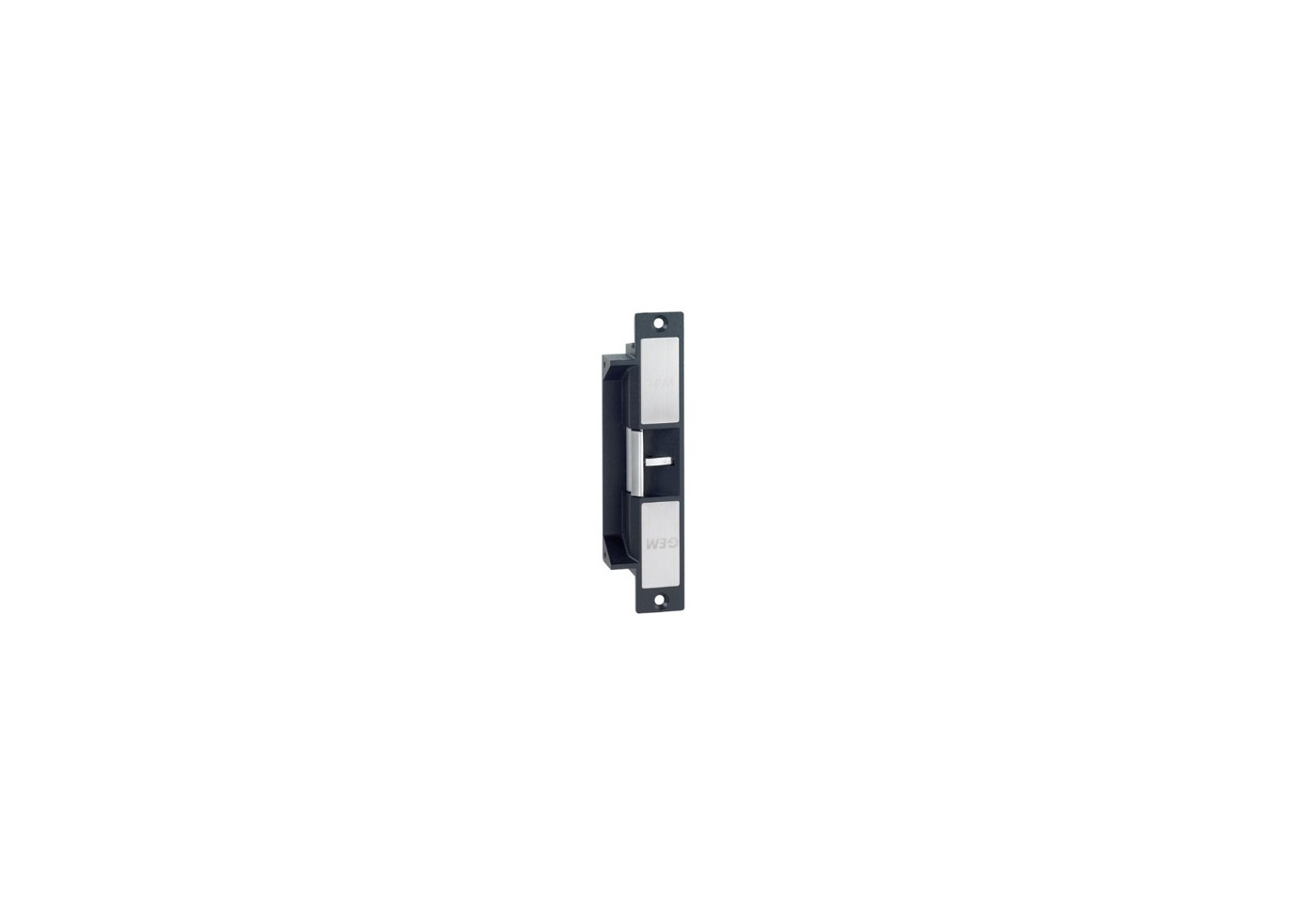

GK700 High Security Electric Release 12 /24 V AC/DC, Dual Monitored

The GK700 series high security electric strikes with upto 1500lbf Holding Force , dual monitored,12/24VAC/DC, designed for use with all access control systems.

From £148.79 (Inc. VAT)

By: ,



Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Fail Safe & Fail Secure
12VDC/12VAC or 24VDC/24VAC
Dual Monitored
680kg
GK700

Quantity

+

The GK700 series electric strikes are high in security, with upto 1500lbf (680kgf/6672N) holding force ,they are  designed for use with all access control systems. The strikes are suitable for use with hinged doors which require security control as part of a building management system. The strikes offer great on-site flexibility being able to change from fail safe to fail secure with the simple adjustment of the controlling screw and are dual voltage 12 or 24V DC or 12Vac 24vac. They offer a strong, dependable and long-lasting electric strike solution.
Key features include, fail safe/fail secure changeable on site, high security with 1500lbf (680kgf/6672N) holding force, stainless steel locking pins, Low Current consumption – 230mA @ 12Vdc / 140mA @ 28Vdc
440mA @ 12Vac / 230mA @ 28Vac, and are recommended for High traffic areas. The GK700 offers double monitoring of the Solenoid, Door position and lock  in addition to 12 or 24V DC,12Vac 24Vac power selectable on site.

For more detailed information on product, installation and dimensions please see product information tab above.

Features & Benefits
• Lock Sensor, Cam Sensor
• upto 1500lbf  Holding Force
• CE marked and EMC tested
• Easy installation
• 12 or 24V AC/DC on site selectable
• DC Fail Safe/Fail Secure selectable
• Dimensions – H 175 x W 44 x D 27mm
• Max Voltage & Current-230mA @ 12Vdc / 140mA @ 28Vdc
440mA @ 12Vac / 230mA @ 28Vac210mA / 12V DC
140mA / 24 V DC
