ICS Slimline Magnetic Locks Contract Range

ICS contract range of slimline maglocks are mini magnetic door locks featuring upto 600lbs of holding force in a compact casing that’s easy to install.

From £31.19 (Inc. VAT)

By:



Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Quantity

+

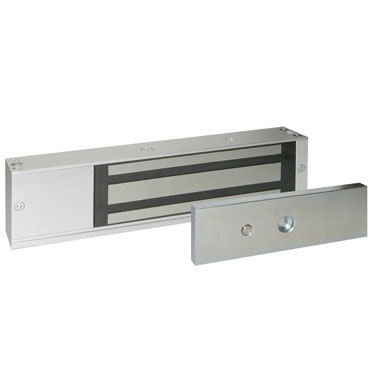

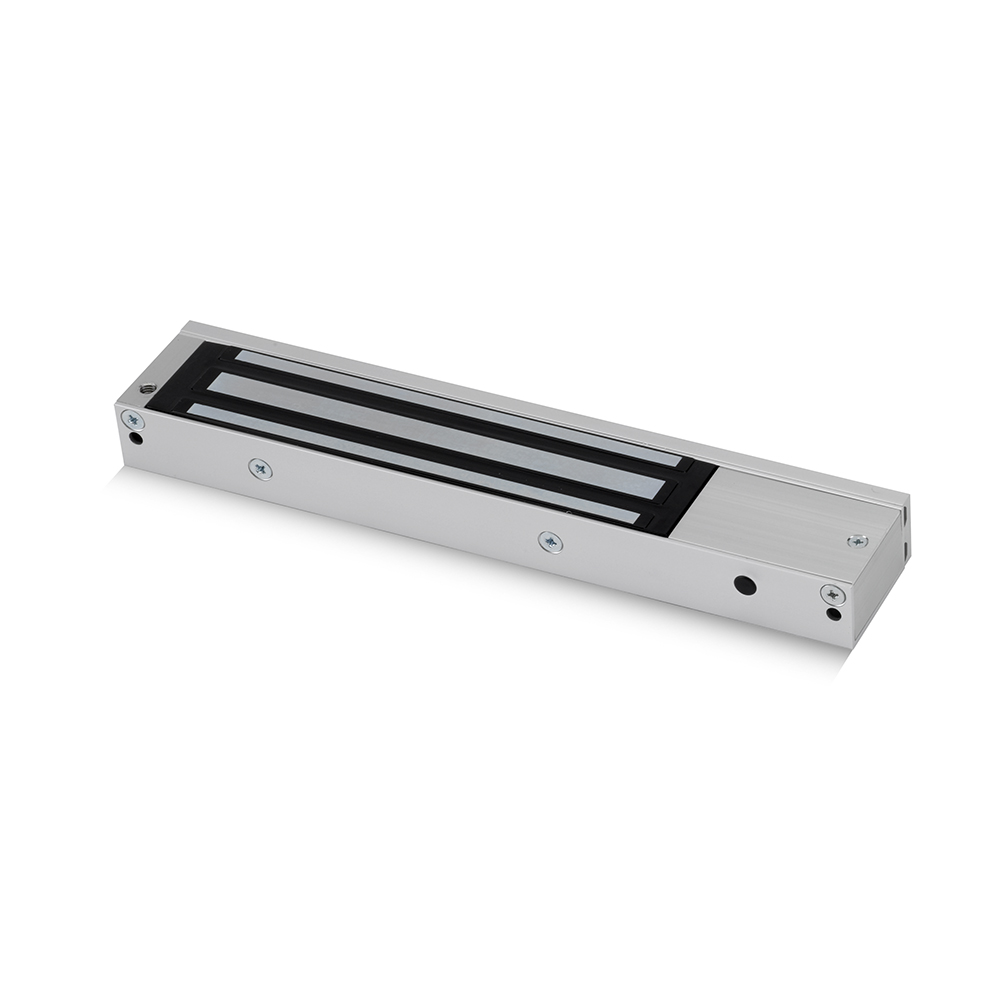

ICS contract range of slimline single or double mini magnetic locks at Electric Locking Systems in monitored and unmonitored versions, with a surprisingly powerful holding force of upto 600lbs. These small maglocks will work as part of a standalone 1 door access control system with just a keypad and press to exit button or part of a more sophisticated multi door system. Features of the Deedlock slimline magnetic locks are the continuous housings provided to improve aesthetics for high quality installations, with a satin anodised aluminium finish.

We stock the following versions:

  • A10001 – Slimline Mini Single Magnetic Lock Unmonitored
  • A10002 – Slimline Mini Single Magnetic Lock Monitored
  • A10004 – Slimline Mini Double Magnetic Lock Unmonitored
  • A10005 – Slimline Mini Double Magnetic Lock Monitored

For Brackets please see you may also need above left



Description

  • Voltage tolerance: ±15%.
  • Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~55°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Humidity: 0~95% non-condensing.
  • Special Zinc finishes for magnet and armature plate.
  • Weight: 2.0kg (approx).
CP21-N Wiring Diagram
