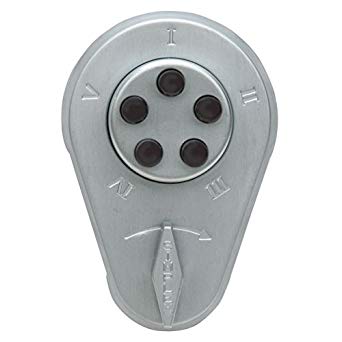

Kaba Simplex 900 Push Button Mechanical Digital Lock

Purchase the Kaba Simplex 900 push button mechanical digital lock at Electric Locking Systems to eliminate problems and costs associated with other access control systems and locks that require keys, access control cards and fobs. Best of all, the Kaba Simplex 900 can be re-coded without taking the system apart. It is factory handed for left hand doors, and easily field reversible for right hand doors; simply invert the lock.

We stock the Kaba Simplex 917, 919 and 938 – versions with a deadbolt spring latch featuring 16 mm throw, flat faceplate, automatic relocking and key override (select models). Mechanical digital locks don’t need a battery and Kaba locks are renowned for their vandal resistant, solid metal push buttons. The lock is constructed of purely metal cast front housing, force-resistant, clutch-protected thumbturn, metal exterior trim plate.

Kaba Simplex 900 specifications:

• Kaba 917 push button lock – ⅝” (16 mm) with deadlocking spring latch, flat front, 1⅜”–1½” (35 mm–38 mm) thick and latch holdback.
• 919 push button lock – ⅝” (16 mm) with deadlocking spring latch , flat front,1¾”–2⅛”(44 mm–54 mm) thick and latch holdback.
• 938* push button lock – ⅝” (16 mm) with deadlocking spring latch, flat front, 1¾”–2⅛” (44 mm–54 mm) thick, latch holdback and key override.

* Key override orders will consist of all locks on the order being keyed alike, unless there is a specific key cut called out or the locks on the order are requested to be keyed differently

Technical Data

Backset: 2 9⁄16″ (65 mm) for outswing doors, 2½” (64 mm) for inswing doors

Door Thickness:

• 1⅜” (35 mm) to 1½” (38 mm)
• 1¾” (44 mm) to 2⅛” (54 mm)
• Model 929: Lockset for D.O.D. standards, 1¾” (44 mm) to 2⅛” (54 mm) only
• Model 927: Lockset for D.O.D. standards, 1⅜” (35 mm) to 1½” (38 mm) only
• Latch: 1″ (25 mm) deadbolt; ⅝” deadlocking spring latch

Strike: Includes strike plate for outswing doors, cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit

Durability: Weather resistant

Order the Kaba Simplex 900 push button mechanical digital lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
