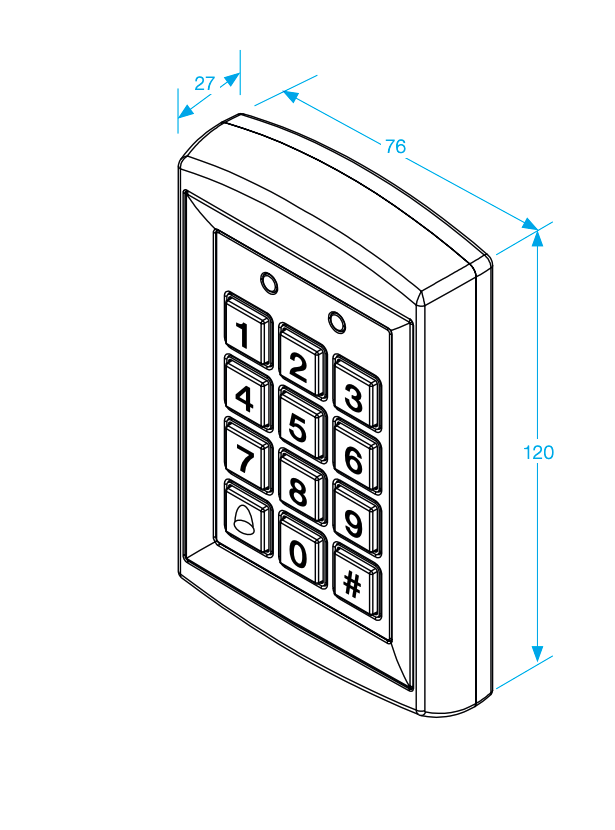

KP-500 Proximity Keypad Access Supplied 10 Fobs

Simple to operate standalone Proximity and Pin Keypad with back lit keypad and 2 LED display lights, Supplied with 10 Fobs but more can be added why not get free help and advise from Electric Locking System limited contact us via email at
or via webchat at our website or even by phone on 01202 941050

From £108.54 (Inc. VAT)




Please see the information below as to how to program the keypad. But if you require free help and advice why not contact electric locking systems? Who will be happy to help you please contact them via phone on 01202 941050 email or via their website at and use the online chat.

The unit is Vandal resistant and Die-cast Aluminium. Which Operating at voltage: 12 – 24 Vac or Vdc.
It has a Programmable 5-digit code against some that only have four. It works at a Frequency of EM125khz.
With a range of 5cm in a noise-free environment.
This keypad comes with a 12 Digit backlit keypad from 0 to 9 as well as * #

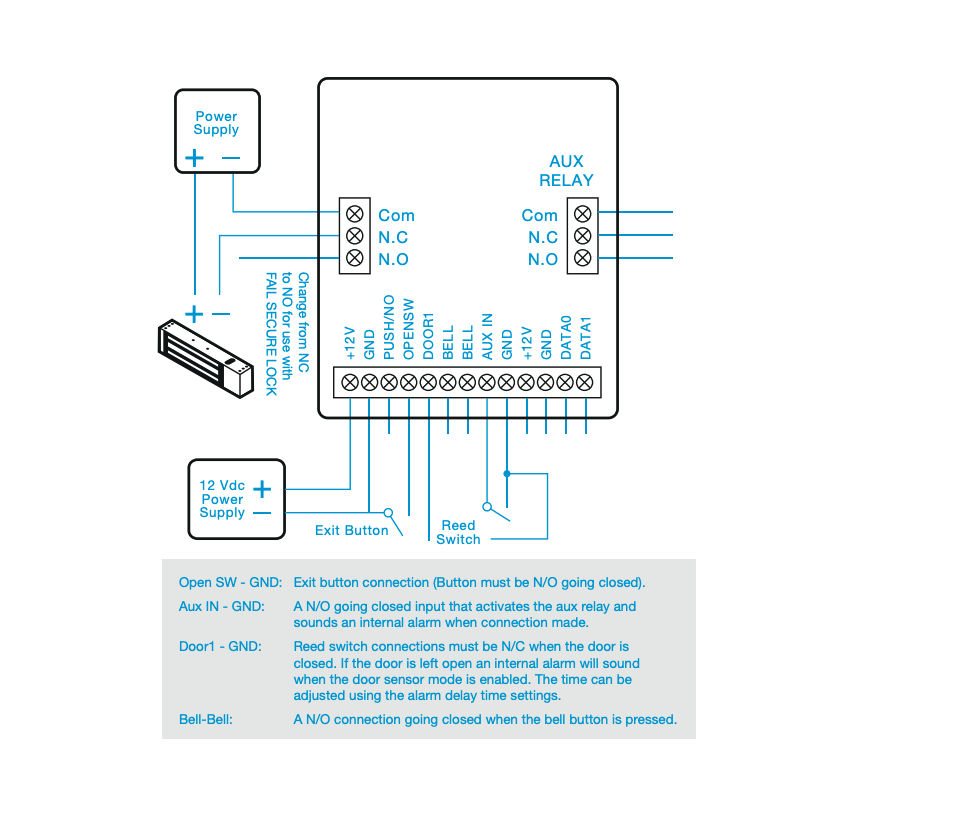

The keypad has Output 2 relays Com /NO /NC

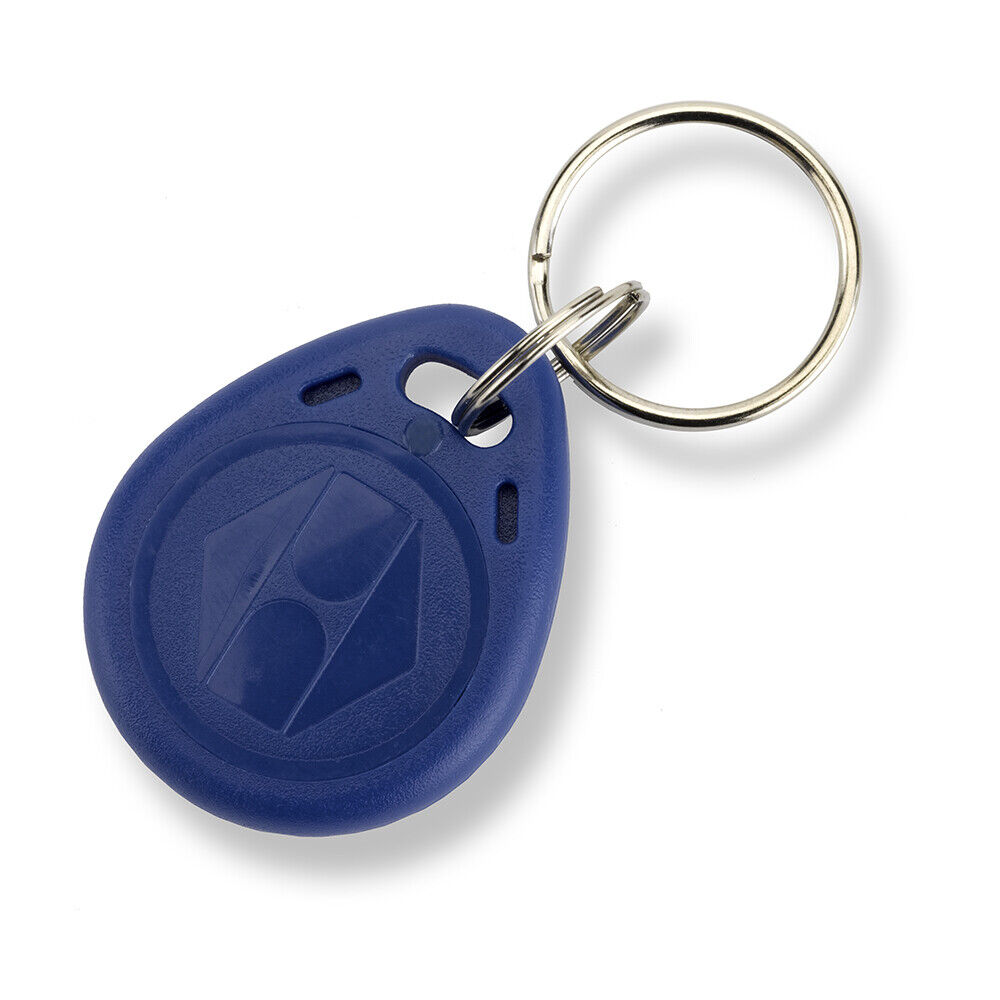

10 Proximity cards are included with the keypad.
Can take over 1000 proximity cards or fobs. But must strike in 1 to 99 seconds or in toggle mode.It has 2 Led indicators that are green and red .
