GEM PBA-860 Panic Push Bar for Exit Doors
GEM emergency exit door push bar PBA-860 comprised of an actuator and micro switch where a pressure push cuts a switch unlocking a magnetic lock. Available in Green or Silver Finish.
The GEM PBA-860 panic bar allows users to open and unlock a door by pushing the bar. The panic bar lock is designed to comply with EN13637 for Electrical Panic & Emergency Exit Systems, making it ideal for use in commercial buildings and offices. The actuator push bar allows touch/push bar operation across the door width to activate an electronic locking device, ideal for use with face to face fixed electro-magnets.
- Dual switching for lock activation and monitoring
- Operates 12C or 24V DC max. 5 A
- Aluminium
- 2 pole
- Surface mount

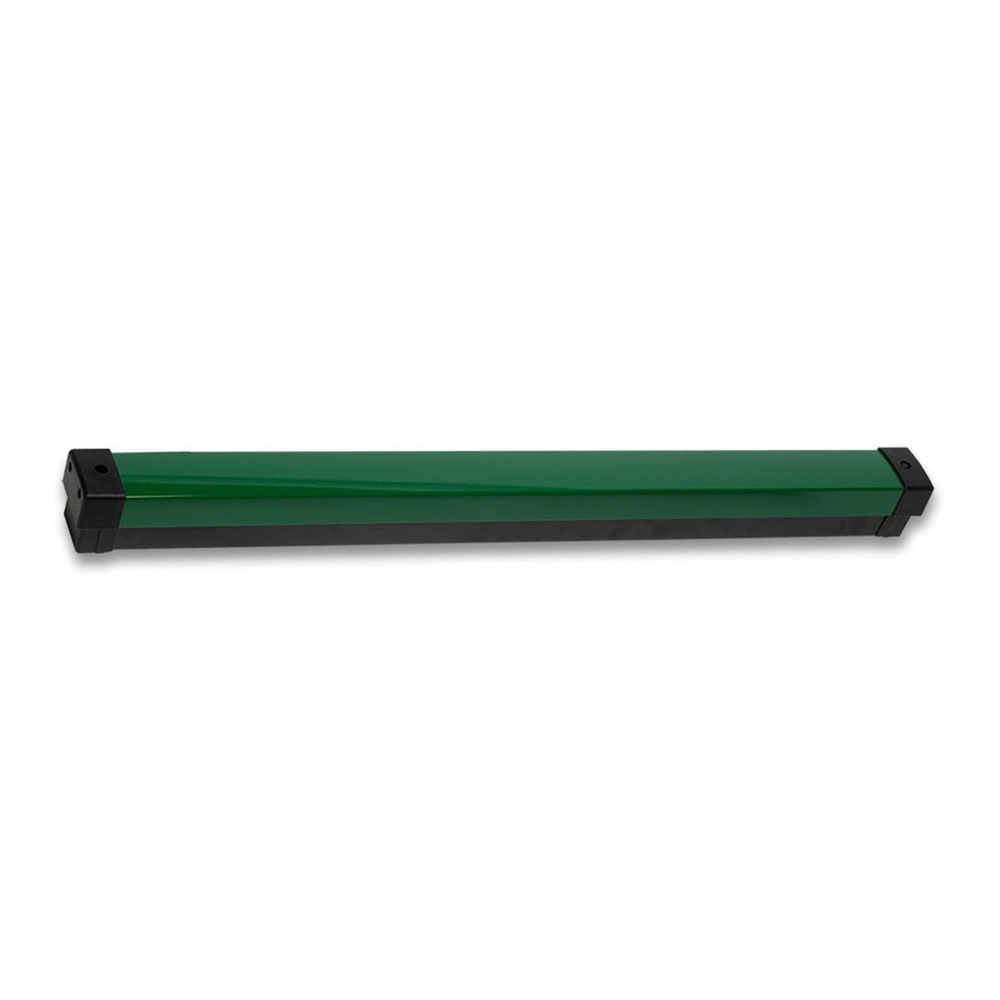

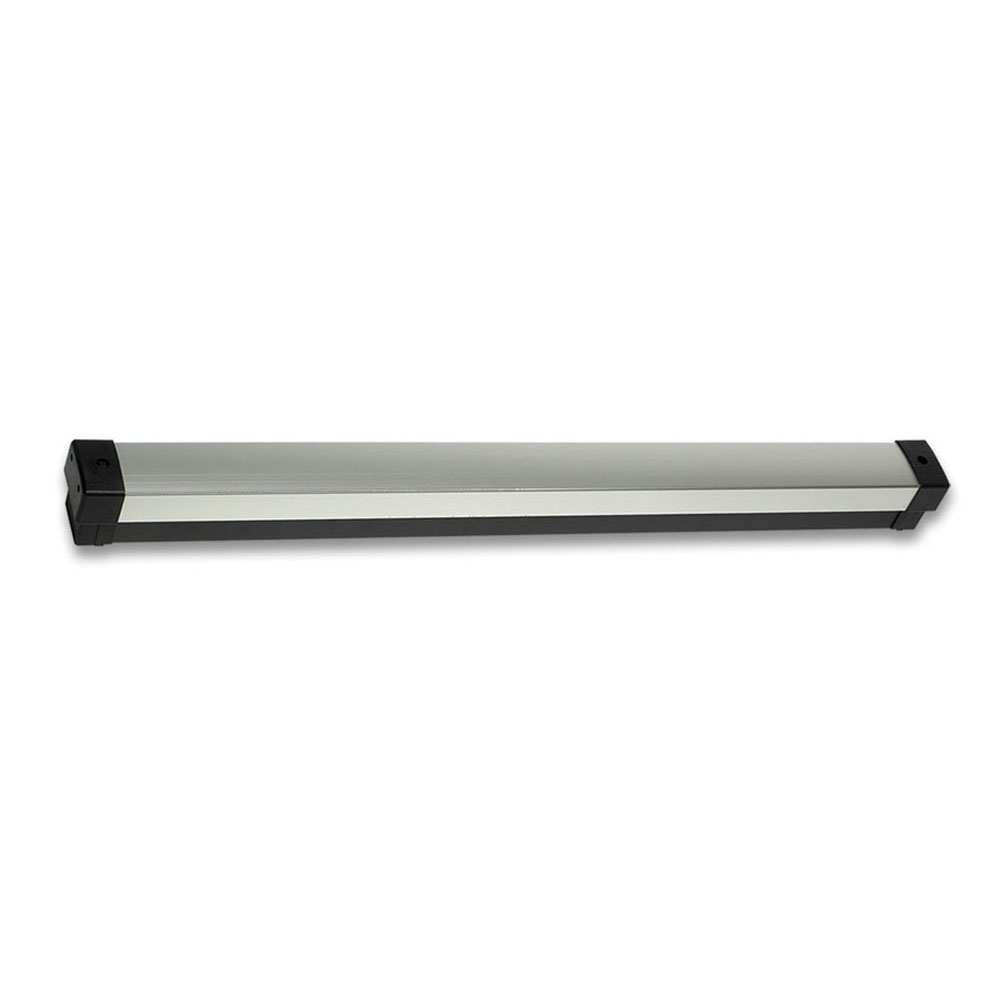

- Available in Silver (PBA860S) or Gloss green finish(PBA860G)
- COM / NO / NC / Change-over-contacts
