PHTM0 Motorised Single Point Touch Bar Latch

Motorised device can be used with a variety of access entry systems such as digital keypad, proximity reader or swipe card system to allow controlled access from outside. The panic touch bar will always override this and be operable from inside to allow safe egress.

From £0.00 (Inc. VAT)

By:

PHTM0

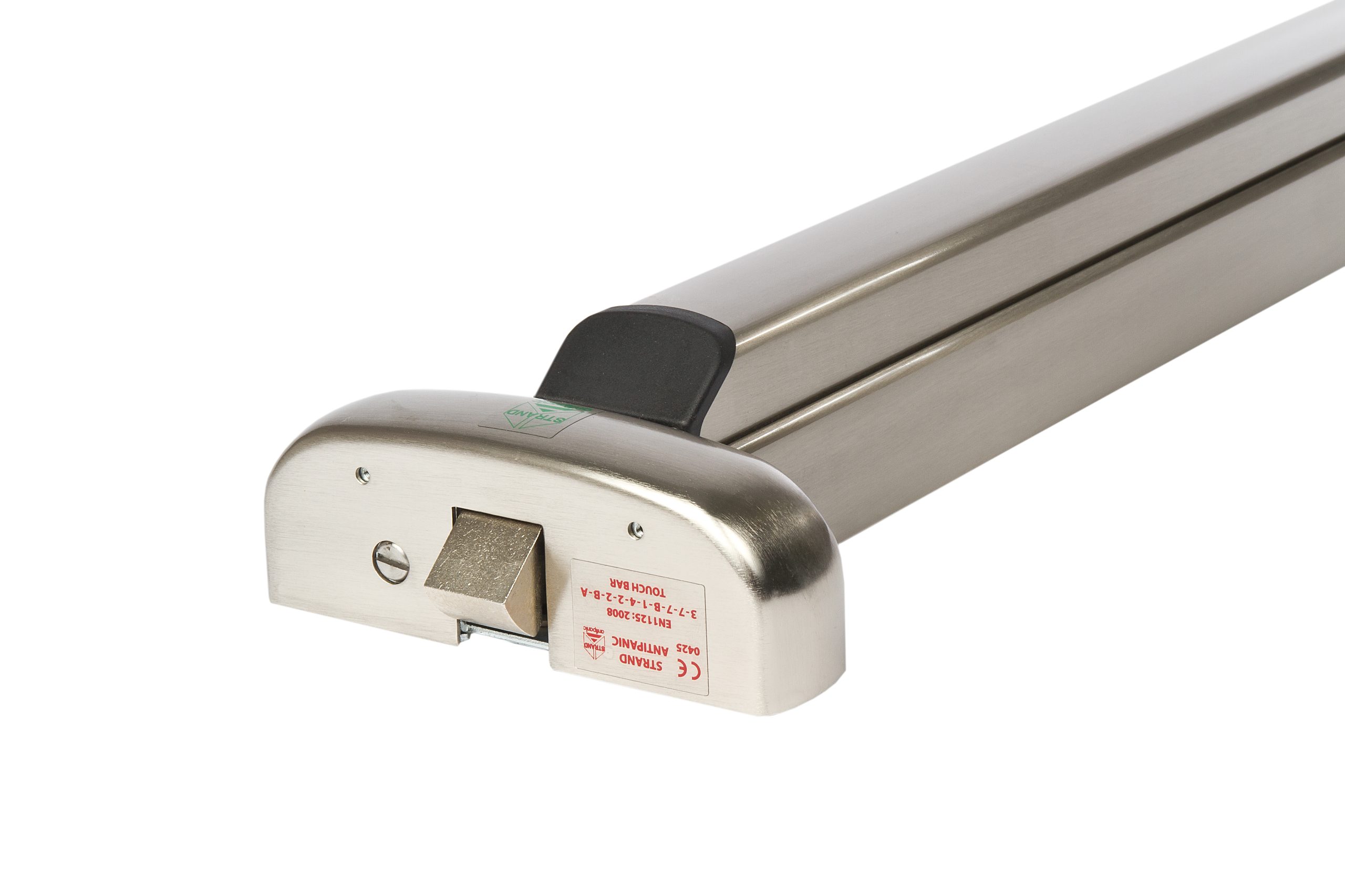

Motorised single point touch bar latch for use on a single door (timber, metal or PVCu) or the active leaf of a pair of rebated doors.

Comprises a  touch bar containing a motor and modular mechanism. Motor operates on 12-24v DC (stabilised) or 12v AC. 2 amp power supply.

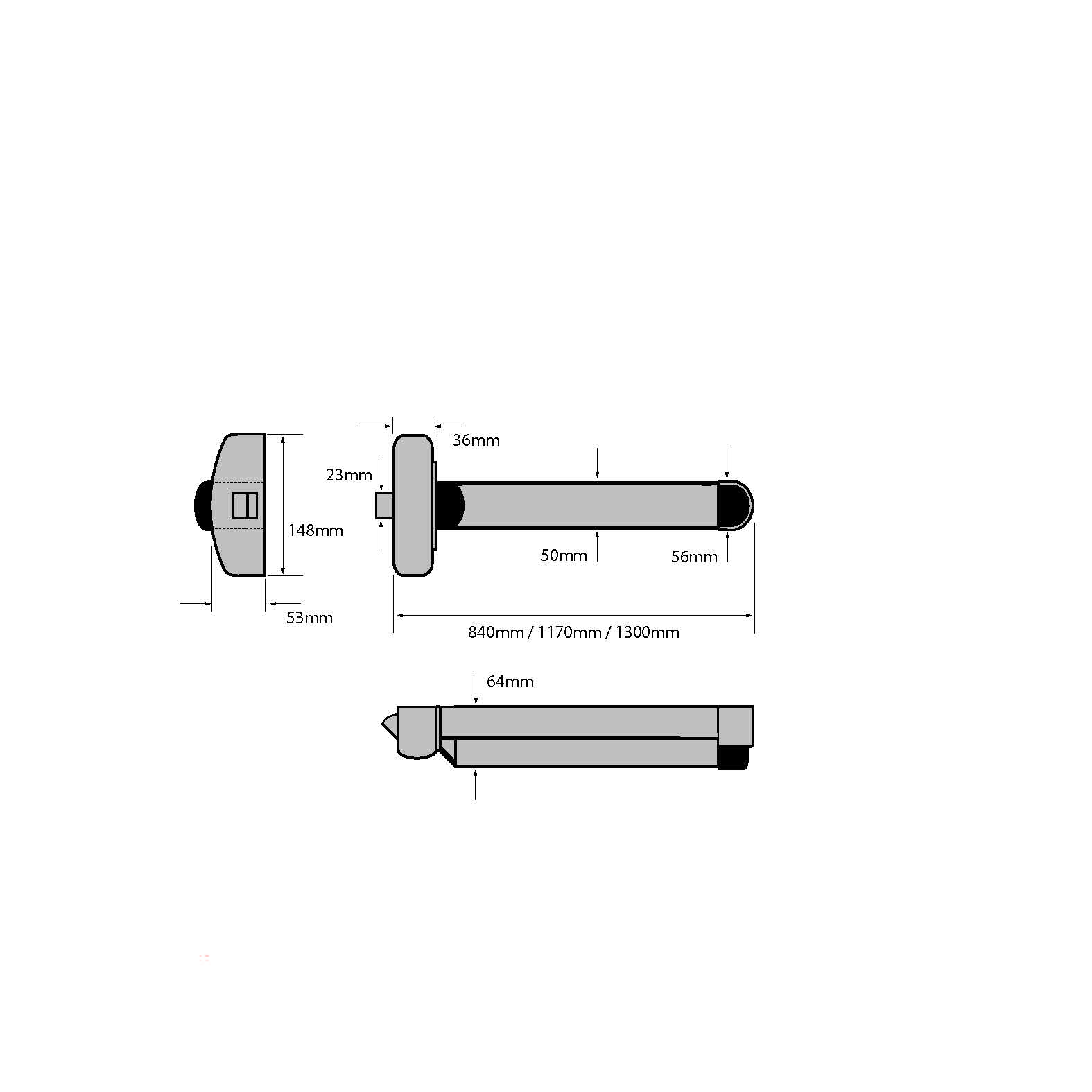

Standard size – 840mm suitable for doors upto 860mm wide, longer version – 1170mm for wider doors available.
Supplied with strikers for timber or metal doors as standard – strikers for PVCu available separately

Micro-switch can be fitted in the mechanism, this allows the door to be fitted to equipment that monitors the door status. If required state when ordering.

Can be supplied with dogging but not supplied as standard.  The dogging (hold-back) facility should not be used on fire/smoke door assemblies but fine for escape doors. If dogging is required please state when ordering.

Supplied with strikers for timber or metal doors as standard – strikers for PVCu available separately

For Fitting Instructions, Certificate of Performance please see product information tab above



Ordering Information

For all ordering please phone in on 01202 941050 or email your requirement to sales@electriclock.co.uk as all push bars are special order items.

Part code – PHTM00320
Description – motorised single point touch bar latch 840mm, silver

Part code – PHTM00325
Description – motorised single point touch bar latch 840mm, white

Part code – PHTM00301
Description – motorised single point touch bar latch 840mm, black

Part code – PHTM00344
Description – motorised single point touch bar latch 840mm, satin stainless steel plated

Part code – PHTM00381
Description – motorised single point touch bar latch 840mm, black with green touch bar front

Part code – PHTM00380
Description – motorised single point touch bar latch 840mm, black with silver touch bar front

Part code – PHTM00382
Description – motorised single point touch bar latch 840mm, silver with green touch bar front

For 1170mm version use codes above but replace the second zero with a 1. E.g.
Part code – PHTM01320
Description – motorised single point touch bar latch 1170mm, silver

If dogging is required please state when ordering

If microswitch is required state when ordering

Other colours and finishes available to special order

Specification Information

Touch bar panic devices can be fitted to doors in public buildings such as schools, hospitals, retail outlets, nightclubs etc where people are unfamiliar with the surroundings. PHTM0 motorised single point touch bar latch is suitable for single timber or metal doors or the active leaf of a pair of rebated doors.

Motorised devices can be connected to a variety of access entry systems such as digital keypad, proximity reader or swipe card systems that allow controlled access from the outside. The touch bar will always override this and operate from the inside to allow safe egress.

Certification

Tested and certified to EN 1125:2008 – classification 3-7-7-B-1-4-2-2-B-A

CE / UKCA Marked

Certifire approved 120 minutes (Certificate CF5394)

Two year warranty (conditions apply)
