PHTM5 Motorised Three Point Touch Bar Bolt

Motorised device can be used with a variety of access entry systems such as digital keypad, proximity reader or swipe card system to allow controlled access from outside. The panic touch bar will always override this and be operable from inside to allow safe egress.

From £0.00 (Inc. VAT)

By:




PHTM5


Motorised three point touch bar bolt for use on a single door (timber, metal or PVCu), the inactive leaf of a pair of rebated doors or both leaves of a pair of straight edged doors.

Comprises a touch bar containing a motor, modular mechanism and covered connecting rods and vertical latching pullman latches at the top and bottom. Motor operates on 12-24v DC (stabilised) or 12v AC. 2 amp power supply.

The centre mechanism can be blanked off with plate supplied to convert it into a two point device when using it on double doors.

Can be supplied with dogging but not supplied as standard.  The dogging (hold-back) facility should not be used on fire/smoke door assemblies but fine for escape doors. If dogging is required please state when ordering.

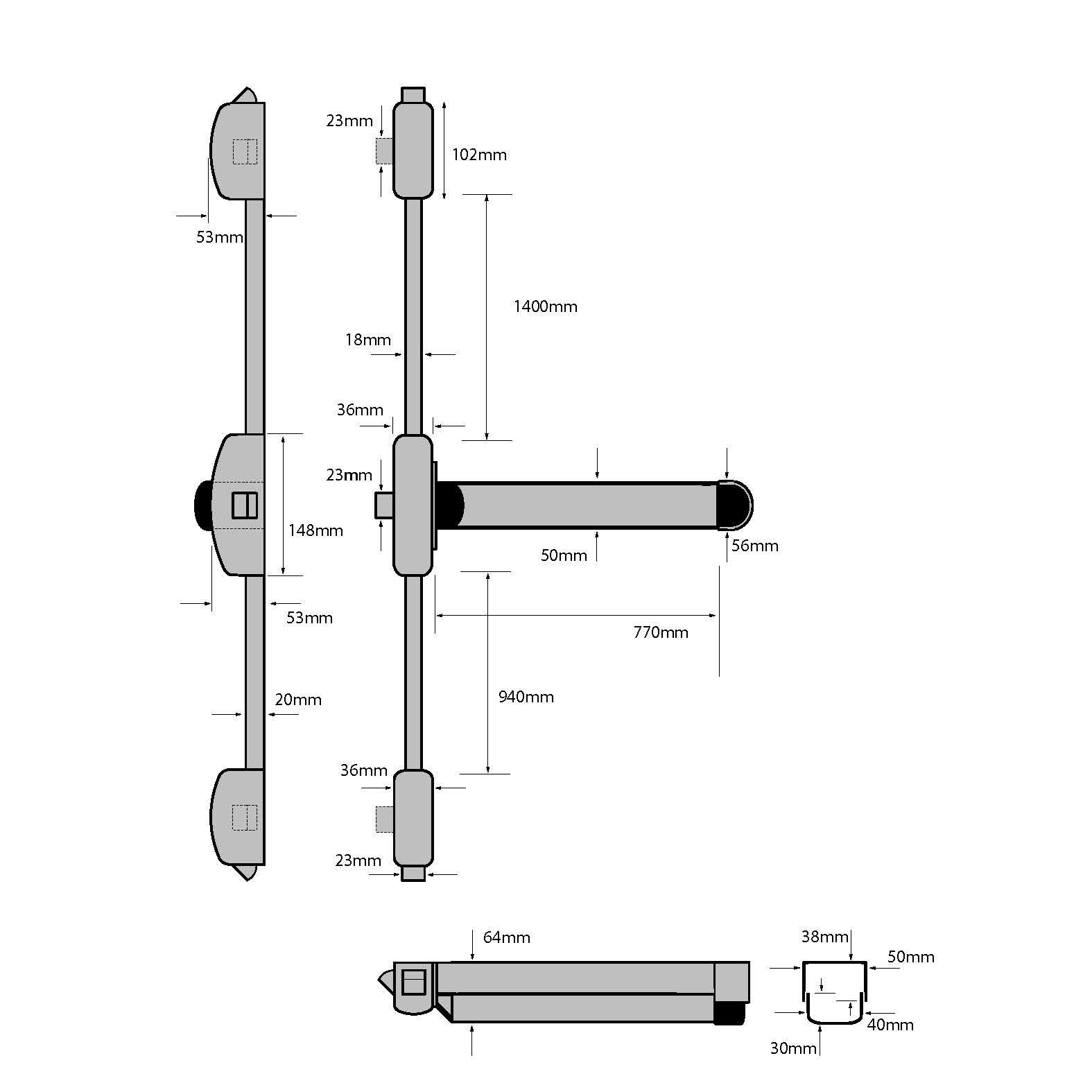

Standard size – 840mm suitable for doors upto 860mm wide, longer version – 1170mm for wider doors available.  Suits doors upto 2585mm high as standard, longer rods are available to suit doors upto 3150mm high.

Micro-switch can be fitted in the mechanism, this allows the door to be fitted to equipment that monitors the door status. If required state when ordering.

Supplied with strikers for timber or metal doors as standard – strikers for PVCu available separately

1. Product range, PH (Crossarm/Push pad modular range), PHT (Touch bar range), PHTM (Motorised touch bar range).
2. Panic Bolt (Vertical pullman latches at top and bottom), or single or 3 point latch (Horizontal pullman latches).
3. Door/frame material ( If PVCu – the profile name is also required).
4. Single leaf or pair of doors ( if double doors – are they rebated or straight edged?).
5. If outside access is required.
6. Size of door (if larger than standard size is required).
7. Finish required.
Specifications and
For Fitting Instructions, Certificate of Performance please see product information tab above





Ordering Information

For all ordering please phone in on 01202 941050 or email your requirement to sales@electriclock.co.uk as all push bars are special order items.

Part code – PHTM50320
Description – motorised 3 point touch bar bolt 840mm, silver

Part code – PHTM50325
Description – motorised 3 point touch bar bolt 840mm, white

Part code – PHTM50301
Description – motorised 3 point touch bar bolt 840mm, black

Part code – PHTM50344
Description – motorised 3 point touch bar bolt 840mm, satin stainless steel plated

Part code – PHTM50381
Description – motorised 3 point touch bar bolt 840mm, black with green touch bar front

Part code – PHTM50380
Description – motorised 3 point touch bar bolt 840mm, black with silver touch bar front

Part code – PHTM50382
Description – motorised 3 point touch bar bolt 840mm, silver with green touch bar front

For 1170mm version use codes above but replace the zero with a 1. E.g.
Part code – PHTM51320
Description – motorised 3 point touch bar latch 1170mm, silver



If dogging is  required please state when ordering

If microswitch is required state when ordering

Other colours and finishes available to special order
