RGL Electric Lock Power Supply 12/24 VOLT D/C
. Power your electric lock with a RGL electric lock power supply unit with various amp and voltage for entry control systems these will take a battery
By: RGL
These are power supplies that work with door entry systems. They can carry a full current to load
Have a 13.8 VDC regulated output.
13.8 VDC regulated output. It also has the Addition of a battery Charging. As well as Deep discharge protection.
This has a Current Limiting a Short Circuit and a Mains transient Protection.
It is Compliant to EMC EN61000-6-1 & 3. The unit has house space to up a 12v 9Ah.
Switch mode technology inside the Mild steel construction. That is white-powered coated metal.
Which has a LED indicators showing mains and battery output.
Comes with a Separate fused mains connections and Full electronic protection which includes Onboard tamper protection.
Converts power more efficiently (switch mode) .Has also a lot of Multiple cable entry.
Plus wiring Instructions included.
1201SM-1
1202SM-1
1203SM-1

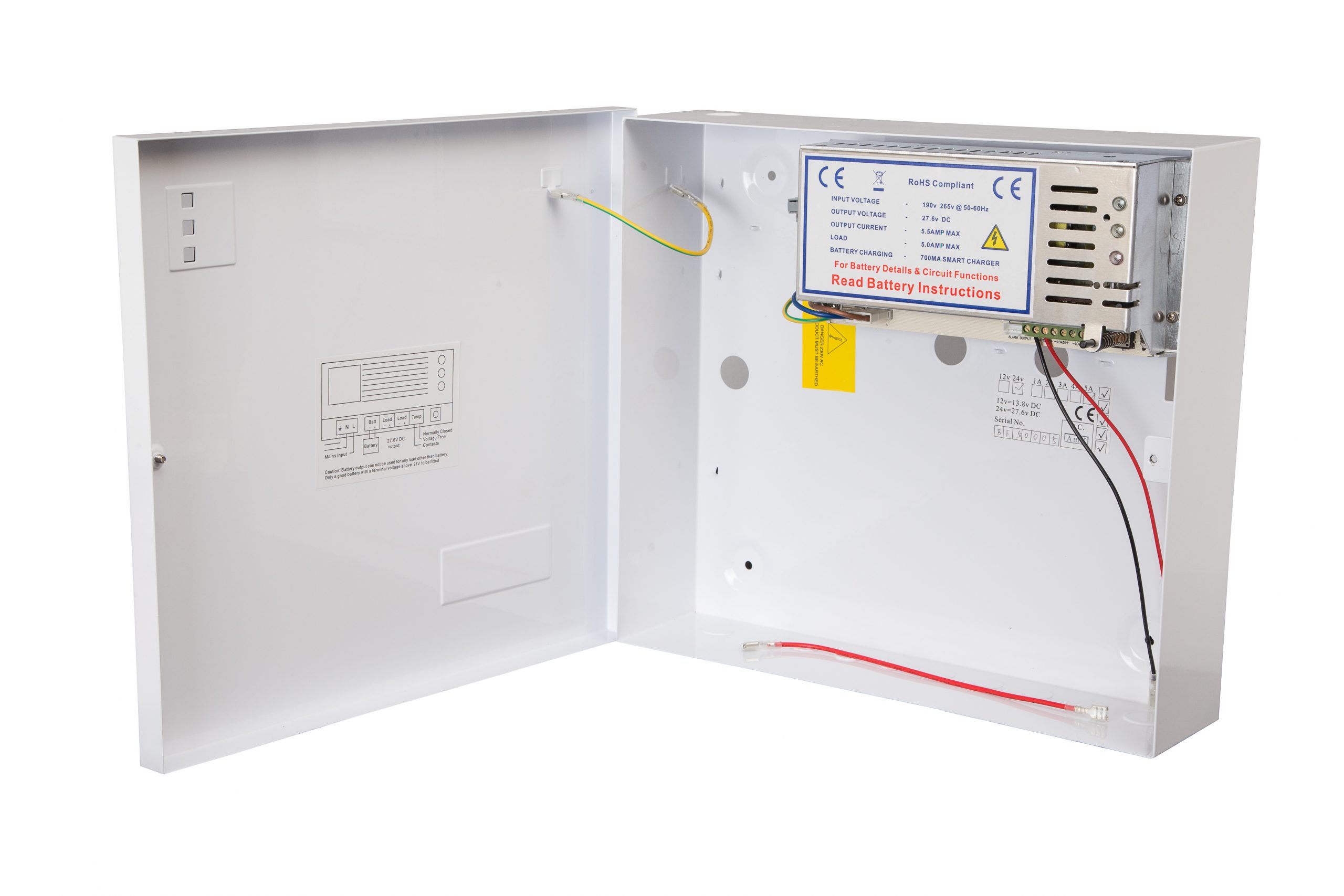

1205SM-2(Large box310x340x80 (mm)
Technical specifications
- Full current to load.
- 13.8 VDC regulated output.
- Additional battery charging.
- Deep discharge protection.
- Current limiting.
- Short circuit protection.
- Mains transient protection.
- Compliant to EMC EN61000-6-1 & 3
- Can house a battery up to 12V 9Ah
Features:
- Switchmode technology.
- Mild steel construction,
- White powder coated.
- LED Indicators (mains, battery output.)
- Seperate fused mains connections
- Full electronic protection
- On board tamper protection.
- Converts power more efficiently (switch mode)
- Multiple cable entry (inc rear)
- Wiring Instructions included
2401SM-2
2402SM-2
2403SM-2
2405SM-2
Technical specifications
- Full current to load
- 27.6VDC regulated output
- Additional battery charging
- Deep discharge protection
- Current limiting
- Short circuit protection
- 230V fused input
- Mains transient protection
- Compliant to EMC EN61000-6-1 & 3
Features:
- Switchmode technology
- Constructed in a modular arrangement
- Allows for quick upgrade to Monitored PSU
- Mild steel construction
- White powder coated
- LED Indicators (mains, batt, output)
- Seperate fused main connectors
- Full electronic protection
- Onboard tamper protection
- Converts power more efficiently
- Multiple cable entry
- Wiring instructions included
- Allows for 2 x 9Ah batteries
