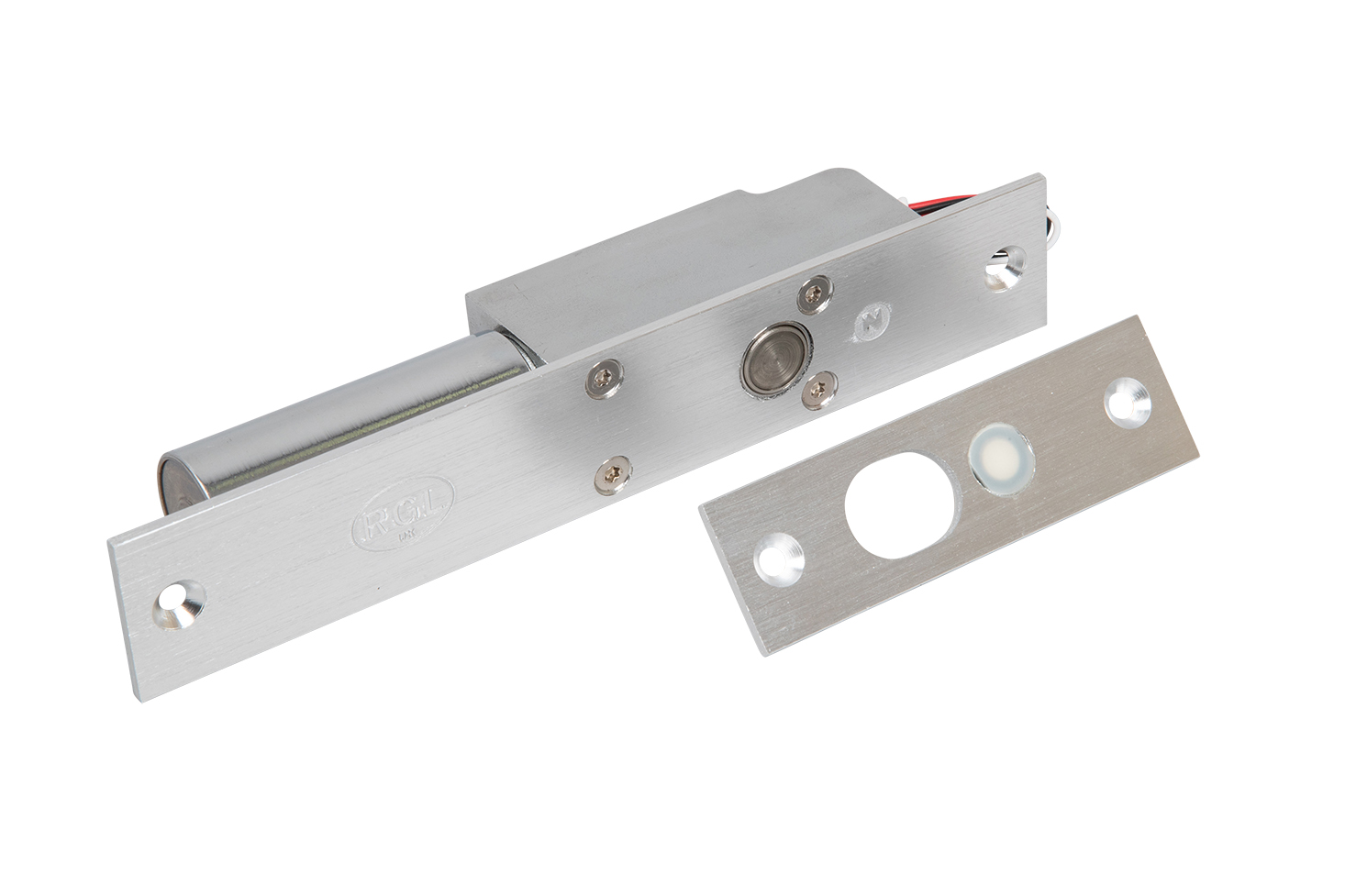

RGL SB-200LS Solenoid Electric Bolt Lock

This RGL Security slimline solenoid bolt door lock offers an excellent level of security for such a compact solution with up to 1000kgs holding force.

From £75.59 (Inc. VAT)





Technical specifications

  • Operating voltage – 12VDC
  • Standby current – 250mA
  • Operating current – 650mA
  • Power to Lock
  • Holding force 1000Kg
  • Fail-safe operation
  • Delay timer (0/3/6/9) seconds
  • Locking by detector plate
  • Monitored output for door status (NO Pair)
  • Suitable for wooden doors
  • Concealed when fitted flush
Dimensions: 200x35x38 (mm)
