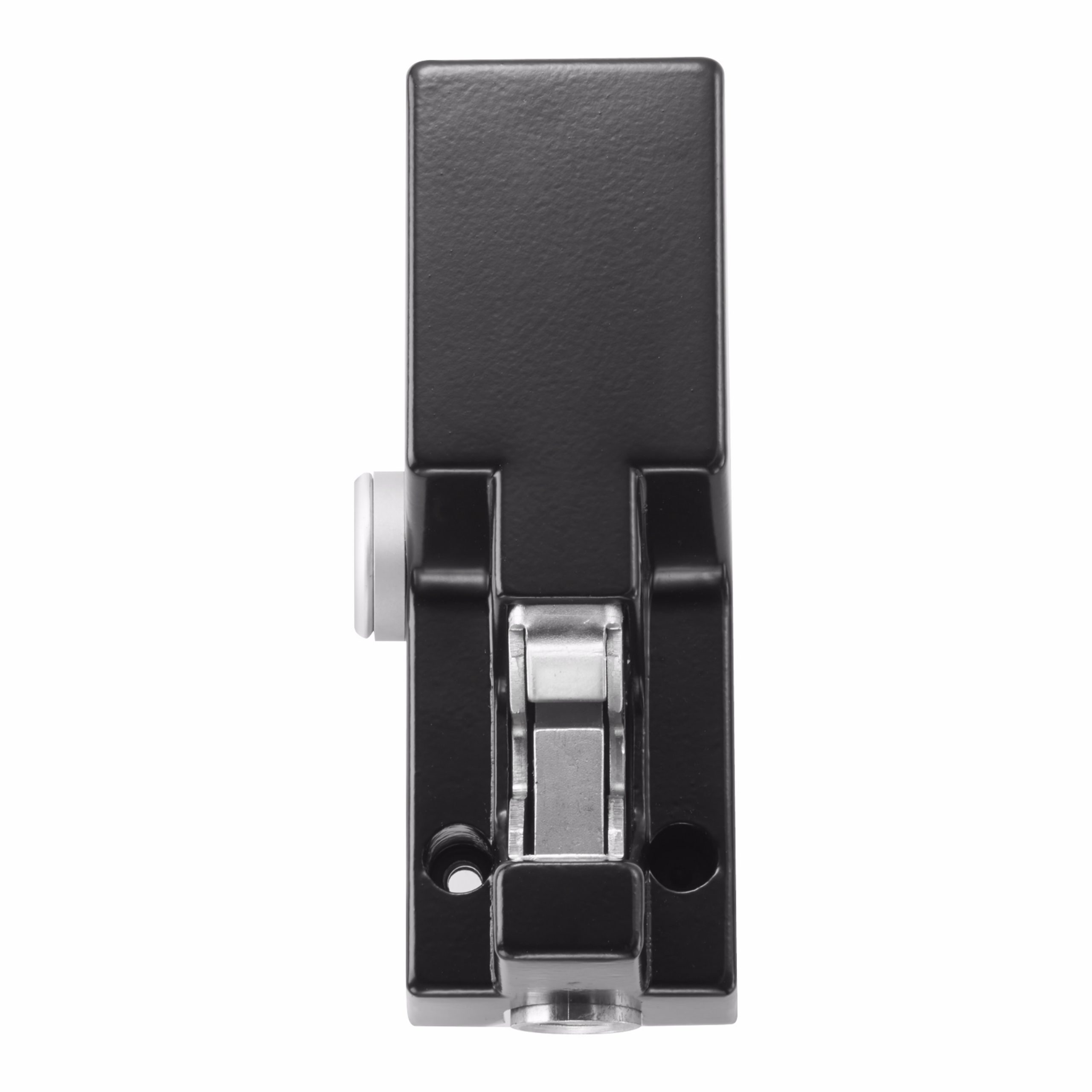

Securitron GL1 Electric Gate Lock

The heavy-duty Securitron gl1 electric gate lock made by Securitron has a large holding force of up to 2000lb/907kg, suitable for both electric and manual-operated gate installations, such as swing gates, sliding gates that are made for heavy gates. It is also great for farm gates as well.

The GL1 electric gate lock can withstand all extreme weather conditions. It will operate with all types of access control and door/gate entry systems. It is often found in airport facilities remote storage yards and large gates it is a fail-secure lock with a key override. So if there is a power failure the gates will still be locked.

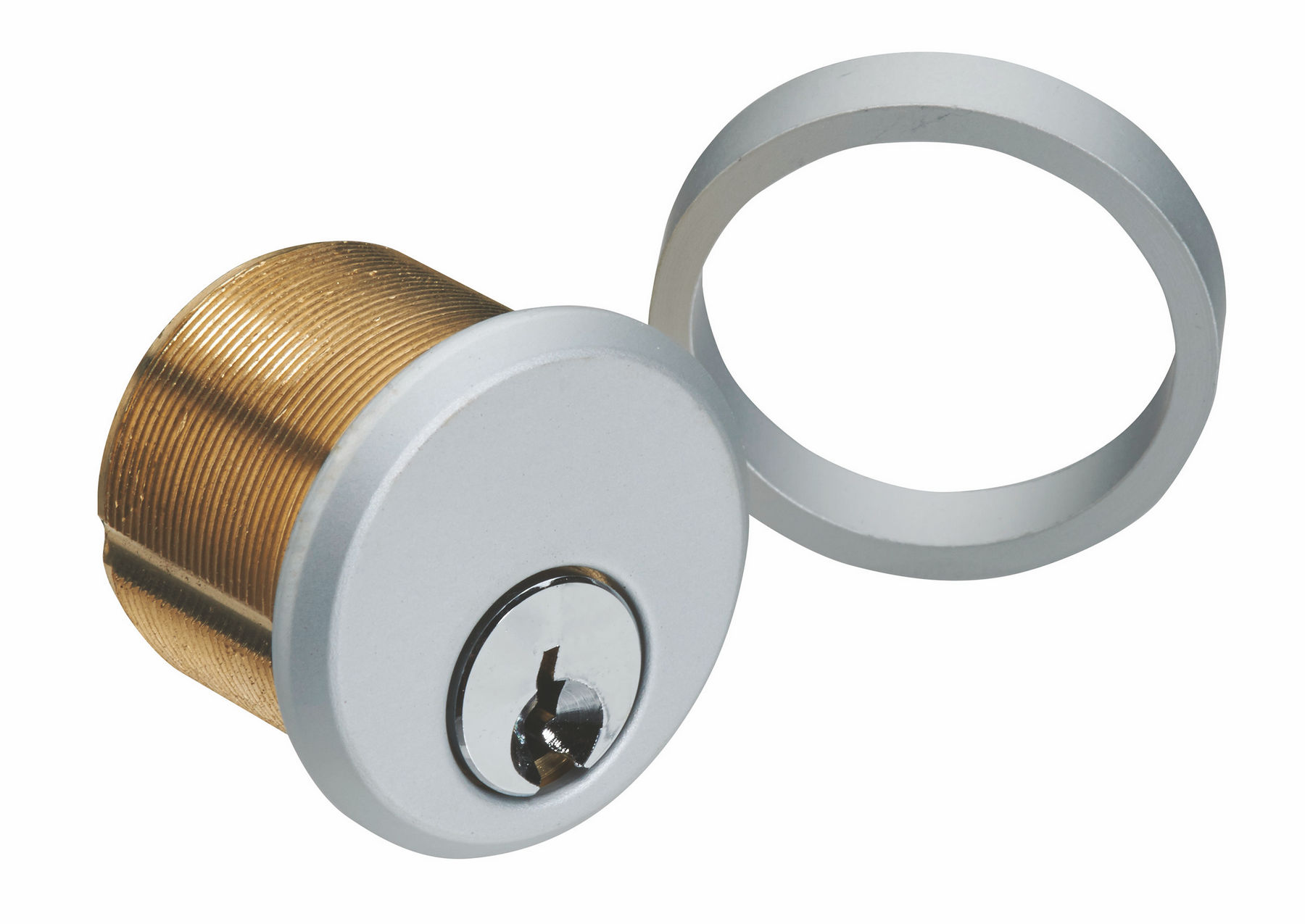

Available in both fail-safe and fail-secure models. Please note if ordering the fail-secure GL1 you will also be required to order the Securitron GMC Gate Lock Mortise Cylinder to enable key override to allow access in case of power failure To Order Please see the above left you may also need..

The GL1 electric lock is available with an optional latch status monitor and a no-fault manufacturer warranty.

Please order before 2 pm for same-day dispatch depending on what delivery option you have chosen. if you require further information why not contact electric locking systems via email at sales@electriclock.co.uk or via our website at electriclock.net and use our online chat. Or even call us on 01202 941050.

2,000 lbs holding force
Operates under preload up to 100 lbs
Automatic dual voltage – no field adjustment required
Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
Self-aligning receiver (+/- 1/2″ horizontally) helps compensate for gate misalignment and sag
Tamper-resistant cast housing
Optional latch status monitor
Surface mount
Strength & Durability
Holding Force (lbs) : 2000

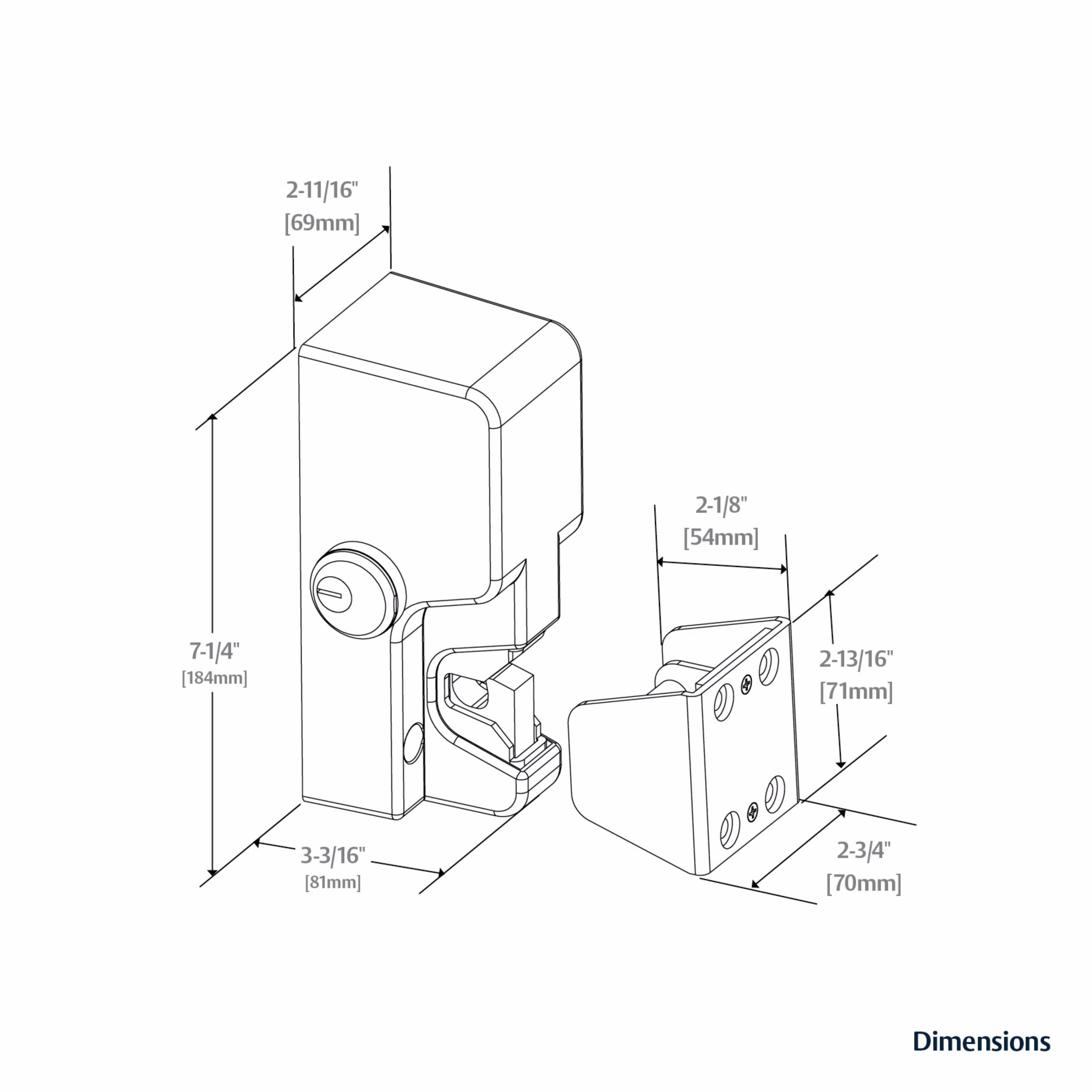

Weights & Dimensions
Height (in) : 2.75
Width (in) : 7.25
Depth (in) : 3.25
Shipping Weight (lbs) : 6
Environmental
Maximum Operating Temperature (F):167
Minimum Operating Temperature (F):-58
Weather Resistance: Indoor/Outdoor
Electrical
Voltage: 12/24 VDC
Current 12v DC (mA): 870
Current 24v DC (mA): 720
