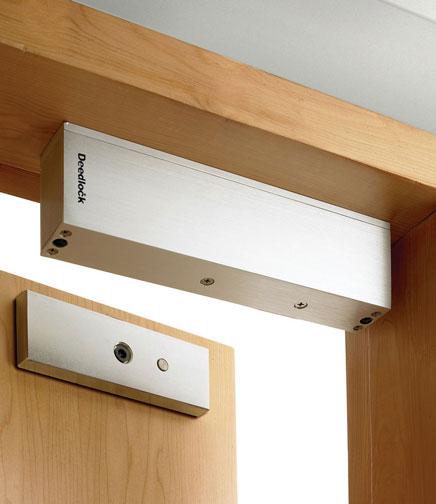

Superior Electro-Magnetic Locks (Grade 4)
Deedlock superior range of electro-magnetic locks have been fully tested to TS010:2016 and meets the requirements of grade 4 holding force,where a Minimum holding force: for Grade 4 - 5000N (1124 lbs/f),these magnets were tested and achieved Holding Force: 5900N (1326 lbs/f) (600 kg/f).
The system of magnets are suitable for a wide range of applications on internal and entrance doors or high traffic situations.
The Deedlock superior range of electro-magnetic locks have been fully tested to TS010:2016 and meets the requirements of grade 4holding force. The comprehensive system of magnets are suitable for a wide range of applications on internal and entrance doors or high traffic situations.
The range includes a single electro-magnetic lock with door status monitoring.
A Z & L bracket for inward opening doors and an L bracket for outward opening doors is available, to order please see you may also need above left
Please see product information tab above, for more detailed product, installation information and fire test assessment report.
Ideal for improved security on external security doors, as a PAS24 test requires doors to be held securely with a minimum holding force of 4.21kn.
Features & Benefits
• CE marked
• Low maintenance with no moving parts
• Safety bolts prevent the magnet from
detaching from the bracket itself
• Dual voltage 12 / 24V DC (Selectable on site)
• Suitable for single or double doors, Inward
or outward opening
• Satin anodised aluminium finish
• For medium to high usage traffic
• Minimum holding force:
Grade 4 – 5000N (1124 lbs/f)
• Tested Holding Force:
5900N (1326 lbs/f) (600 kg/f)
TS010:2016 – Report Number WTE-18-021
Fire rated to EN1634-1 on Timber Doors
for 30 & 60 minutes
EN61000-6-3:2007 + A1:2011

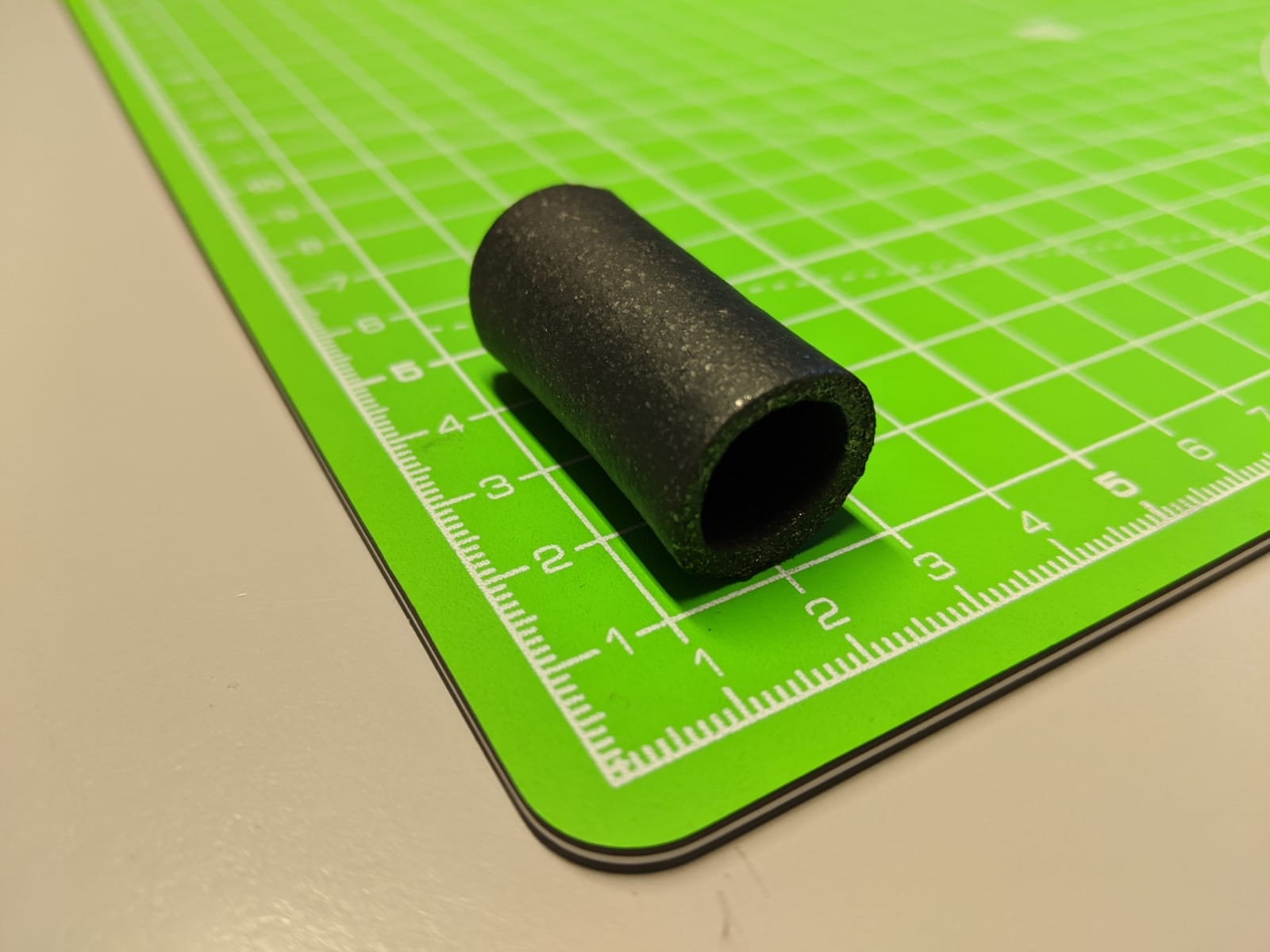

To comply with fire rating you need to order Intumescent pack for fire door applications, please see above you may also need
