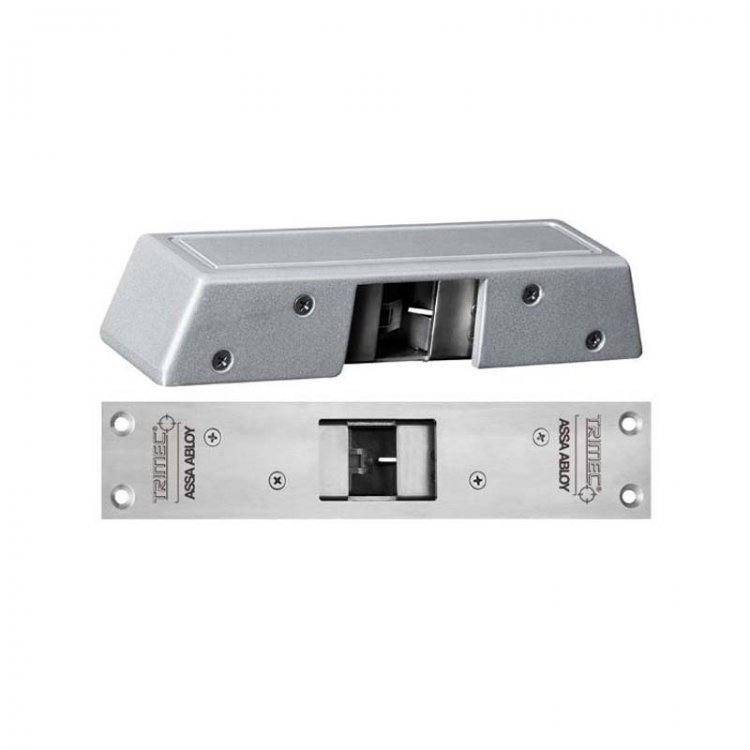

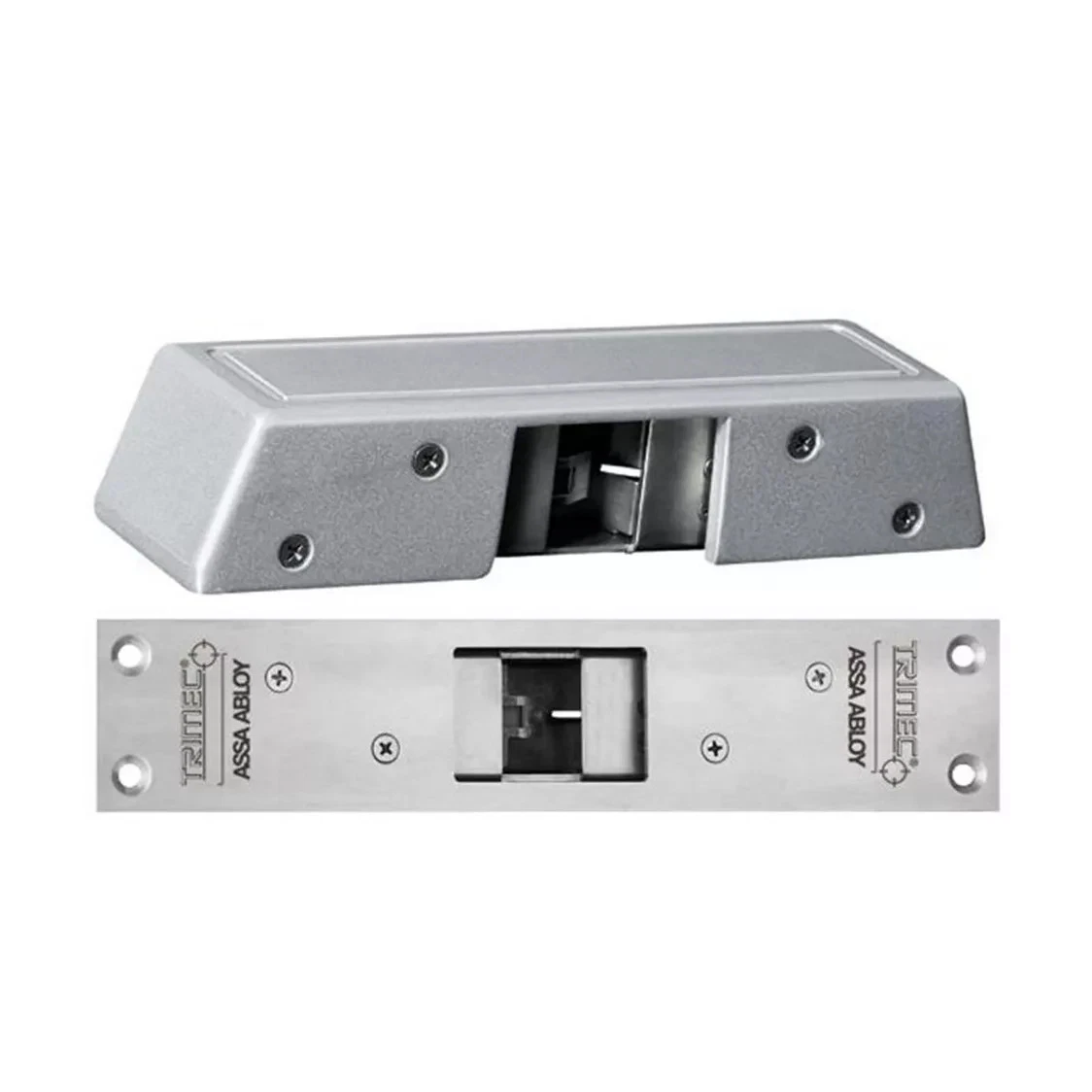

Trimec ES6000 Electric Hook Lock FREE UK SHIPPING!

The Trimec ES6000 electric hook lock is suitable for swinging and sliding doors and easily attached to wood or steel door frames.

From £445.99 (Excl. VAT)

By:



Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

12V DC & 24V DC
700kg
0.83/0.53
Vertical or Horizonal
Monitored
Stainless Steel
116001-000
Fail Safe

Quantity

+

The Trimec ES6000 is heavy duty electric lock designed with its high pre load (side load) capability of up to 300 kg, high holding force of up to 700 kg and up to 4 hours fire rating. We stock the ES6001SS Mortice, Hook Lock Monitored, 12 – 24V Fail Safe SS Faceplate (Recessed) version (product code: 116001-000), but please call to enquire if you would like the following:

  • ES6001SIL Surface, Hook Lock Monitored, 12 – 24V Fail Safe Silver Cover 116001-010
  • ES6002SS Mortice, Hook Lock Monitored, 12 – 24V Fail Secure SS Faceplate (Recessed) – 116002-000
  • ES6002SIL Surface, Hook Lock Monitored, 12 – 24V Fail Secure Silver Cover – 116002-010

The ES6000 electric hook lock recess mounted version is completed with elegant satin stainless-steel faceplate. The surface mounted version is completed with a cast aluminium cover. Mount it vertically and horizontally, with self-latching ability without power for fire applications.

Trimec ES6000 Specification:

  • Side load (pre-load) capable operates freely with up to 300 kg of side pressure
  • Will self-latch without power for fire applications
  • 680kg holding force, 70 foot-lbs. dynamic strength rating and tested to 300kg pre-load capability
  • Robust construction with stainless steel components used
  • Low profile so will protrude only 40mm into door headroom
  • Multi voltage: Automatic selection 12 to 30Vdc with back EMF protection and reverse polarity protection
  • Low current consumption
    • 12VDC- 250mA after 1 sec. (initial current 830mA)
    • 24VDC- 140mA after 1 sec. (initial current 530mA)
  • Tested to 300kg pre-load capability
  • Endurance of 250,000 cycles endurance testing
  • Internal testing achieved: 2,000,000 cycles of operation
  • Pre-load: 660lbs (300kg) pre-load capability
  • Environmental operational temperature range of -20°C to + 60°C
  • Lock body: cast aluminium construction and solid stainless-steel construction
  • Lock bolt: solid stainless steel

Order the Trimec ES6000 online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
