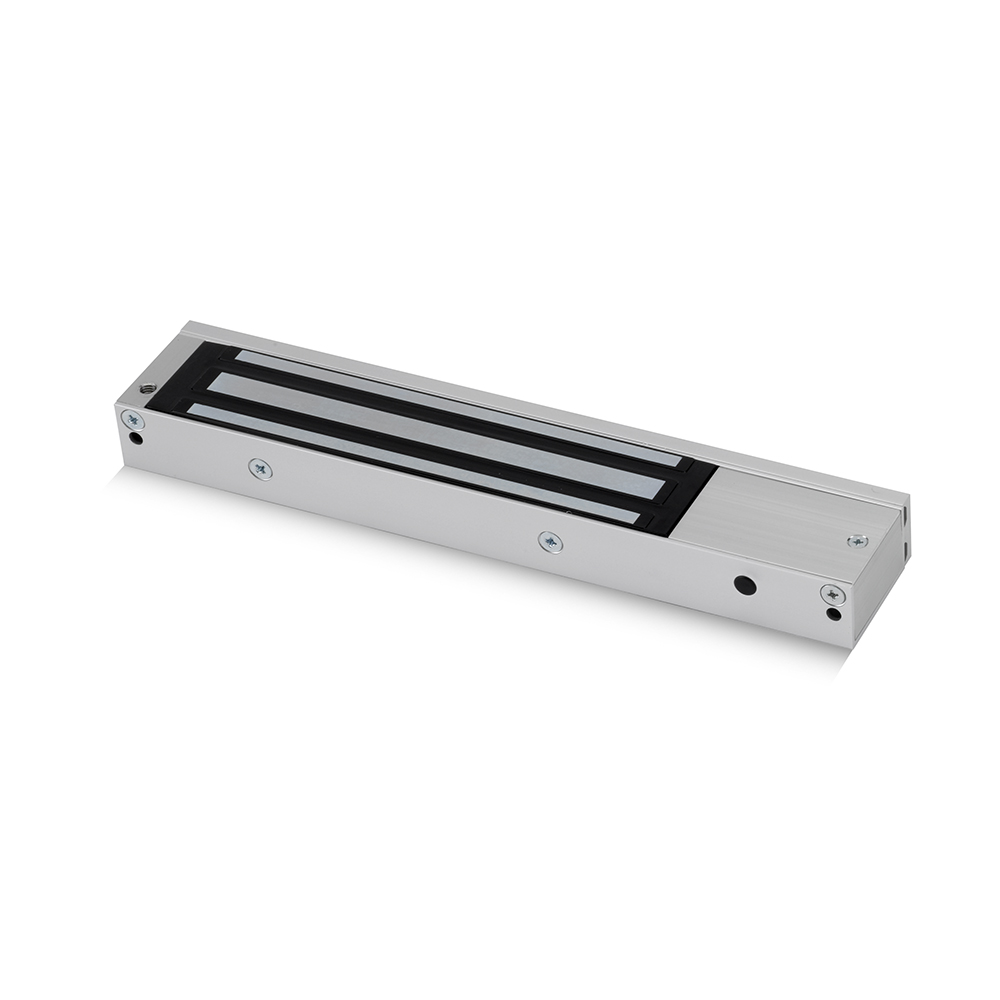

ICS Slimline Magnetic U-Range Fire Rated Locks

Slimline maglocks locks with up to 600lbs/272kg holding force, housed in a compact casing that’s easy to install, and fire-rated to EN1634-1 for 30 & 60 minute timber doors.

From £47.99 (Inc. VAT)

By: ,

Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!



  • FD30 + FD60 Rated
  • Operating voltage 12~24Vdc (Selectable)
  • Aluminium housing
  • Monitored and unmonitored
  • Safety bolts fitted
  • Fire tested: BS EN1634:1
  • Holding force up to 600lbs (272Kg)
  • Electro-less nickel plated armature
  • Fail-Safe
  • 1 Hour UK fire certificateFIRE-RATED-LOGO.-electriclock.net
  • Status LED: Red and Green



  • Voltage tolerance: ±10%.
  • Current draw: 480mA at 12Vdc, 240mA at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~55°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
  • Humidity: 0~95% non-condensing.
  • Aluminum housing, nickel plated armature.
  • Weight: 2.0kg (approx).
  • CP21-N Wiring Diagram
