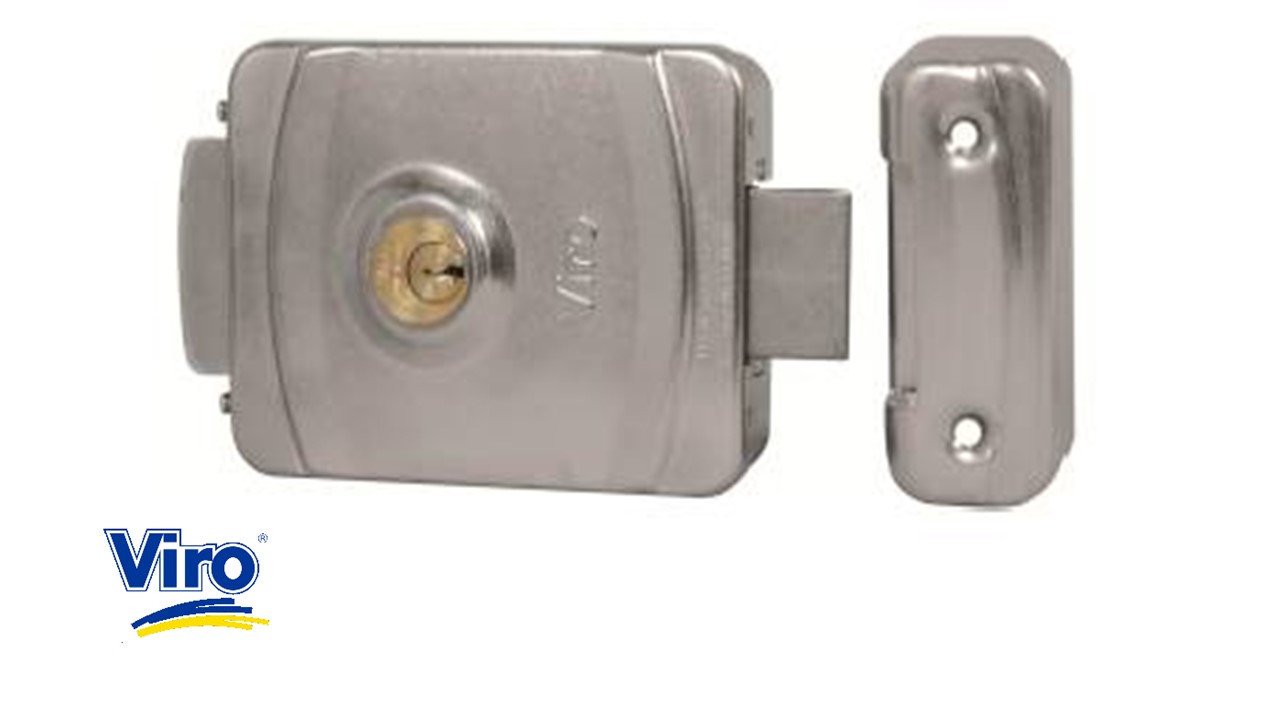

Viro V9083 Electric Lock

The Viro V9083 electric lock at Electric Locking Systems includes a rotating deadbolt lock, service and security function, and a holding force of 540kg. Please note that the Euro Cylinder is not supplied with this Viro lock.

The service function provided, with the V9083 lock, opens with the electric impulse and only resets once the gate has been opened and then closed. It can be opened with a key from the outside, and with a key or electric impulse from the inside

The use of an electric lock with a rotating deadbolt is particularly recommended on automated main doors and drive-through gates, which subject the lock to considerable stress during each opening and closing cycle.

The double coil uniformly distributes the electrical load, therefore prolongs the life of one of the most stressed components in electric locks.

The V9083 can be installed both vertically and horizontally. If requiring horizontal installation, the V9083 is supplied with the suitable striker (item 9083.117), however if you require vertical installation, please request the floor striker (item 9986), instead of the standard striker.

• Interchangeable with the V90 (7920 series) and V83 (7910 series) electric locks.
• Ideal for installation in considerable temperature ranges.

Fixing screws, counter-strike for horizontal installation and Allen key included to adjust the entry.

If you require the lock to run on DC please see above left you may also need Viro electric lock coil converter to convert Viro locks from 12V AC to 12V DC or 24VDC.

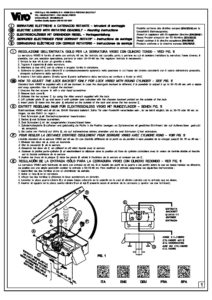

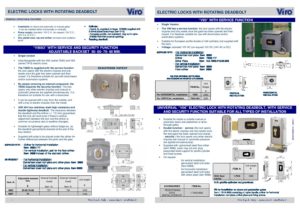

Please view product information and video tab above for lock installation information.
