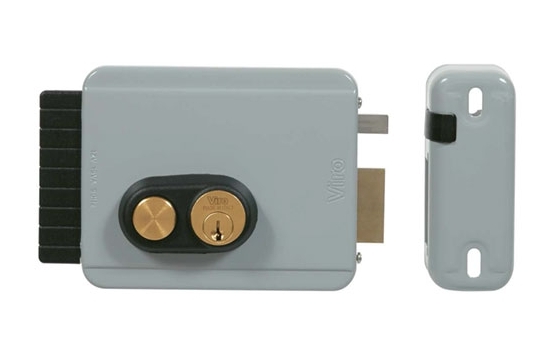

Viro V97 Electric Rim with or without Push Button

The Viro V97 electric lock with push button exit is suitable for inner and outer doors but ideal for use on pedestrian gates. Easily interchangeable with existing electric locks on wooden or metal doors in surroundings subject to considerable temperature changes. Outward opening.

From £107.99 (Inc. VAT)

By:



Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Refer to the handing diagram below for help

Quantity

+

Replace your current electric lock with the Viro V97 electric gate lock with push button exit at Electric Locking Systems whilst maintaining the old striker. The Viro V97 includes a side adjustable back set from 50 to 80mm, with the Allen key supplied and various install options.

Please see video tab above for installation & Product Information tab for detailed product information.

Features of the electric gate lock:

  • Installation: horizontal.
  • Backset: adjustable from 50 to 80 mm, by means of a simple operation .
  • Double replaceable coil: which distributes the load uniformly and ensures a long working life.
  • Voltage: standard 12V AC (on request 12V DC; 24V AC or DC).
  • Case: one-piece galvanized steel.
  • Cover: galvanized steel.
  • Handle: nylon, and nylon cylinder ring nut.
  • Latch: solid brass, self-locking with the device locked.
  • Ejector: nickel-plated steel, separate from the latch to ensure the correct working of the lock even if there is vertical adjustment between the lock and the striker (caused by weather changes).
  • Push button: brass.
  • Cylinders: solid brass, fixed internal, fixed external.
  • Keys: supplied with 3 Viro profile nickel-plated brass keys.
    • Versions available with universal profile keys to replace the most common electric locks already installed without the need to withdraw keys in use. (Cylinders can be re-keyed with keying kit).
  • Mechanism:
    • if the key is turned from the inside, it is possible to:
      • block or activate the button function;
      • block or activate the “dogging device” function (possibility to keep the lock always open, if required);
    • brass pins;
    • mushroom brass counterpins, pick-resistant;
    • phosphor bronze pin springs.
  • Striker: steel, adjustable height to compensate for any vertical adjustment between the lock and the striker. Self-lubricating nylon support in contact with the ejector.
  • Supplied with: galvanized and painted steel striker, oval brass escutcheon,  fixing screws.
  • Packaging: single box.

Order the Viro V987 electric gate lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
