Assa ABLOY EL411 Electric Solenoid Bolt Narrow Lock

Assa ABLOY EL411 electric solenoid lock with single action ideal for narrow interior and exterior doors of commercial premises and flats. fail safe .

From £493.19 (Inc. VAT)

By: ,

Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

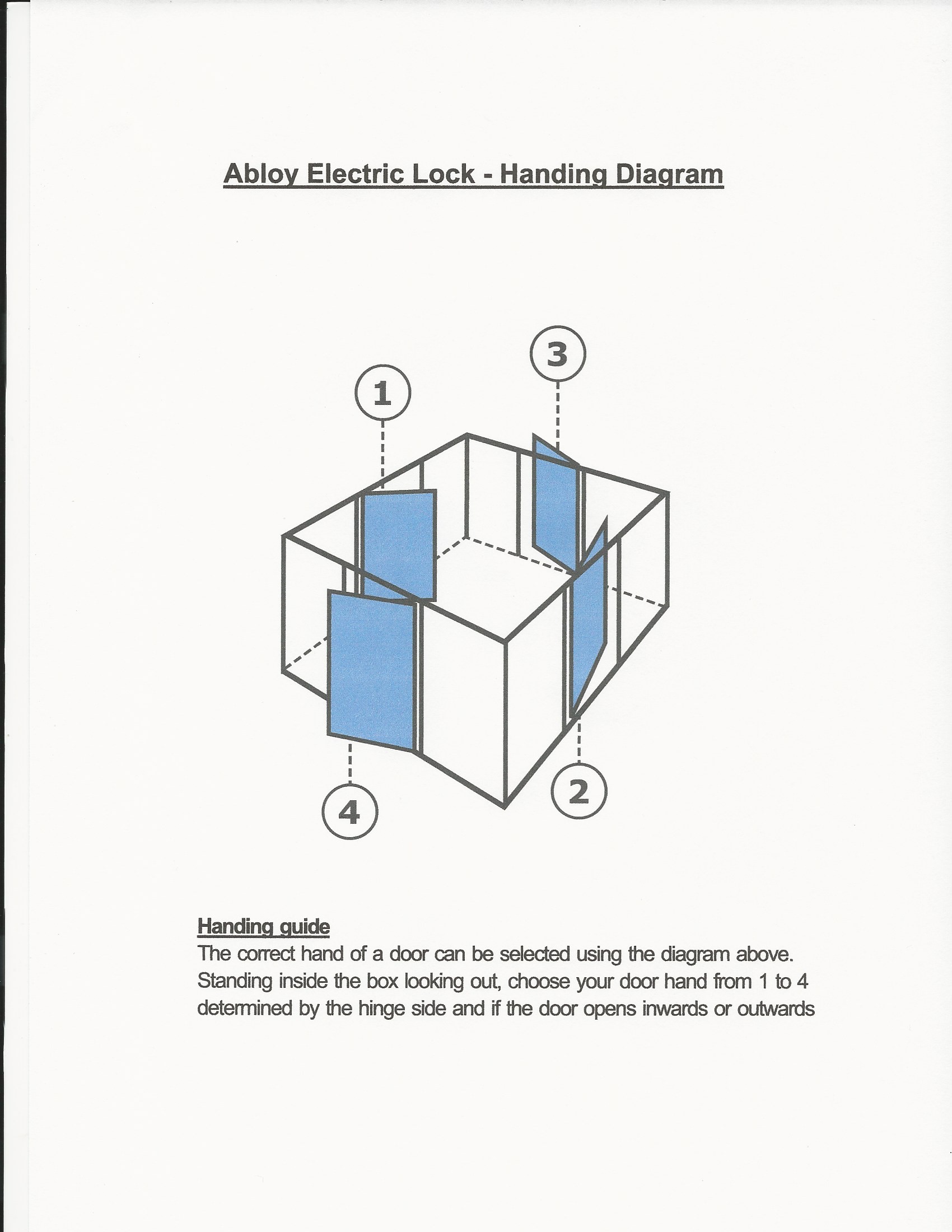

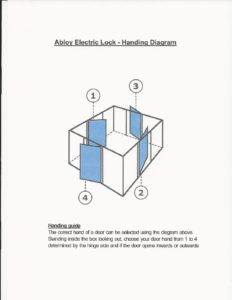

Refer to the handing diagram below for help

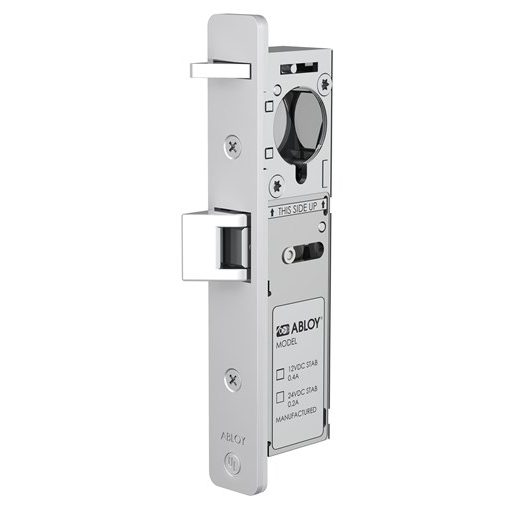

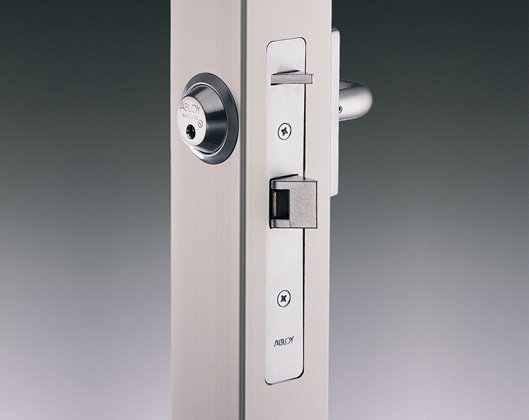

The ABLOY EL411 electric solenoid lock at Electric Locking Systems can be used as a narrow, push and pull door lock and is available in 12 or 24V DC and backsets of 24.6mm or 28.6mm (this is a special order item so allow extra time for delivery). Please refer to the handing diagram to ensure you order the correct hinge side and opening.

Use the ABLOY EL411 electric lock with automatic doors, indoor and outdoor doors, and doors that require a high security lock. As the push and pull lock can always be opened with the inside handle, it can also be used for emergency exits.

As the ABLOY EL411 is a fail-safe lock, the door can be opened by pushing or pulling when the electric control is switched off. When the electric control is switched on, the lock can be operated using a key from outside and by handle from the inside. In locked mode ABLOY EL410 and ABLOY EL411 electric locks are always automatically deadlocked when the door closes. Lock cases are equipped with an integral microswitch to indicate unlocked/locked position.

Features of the ABLOY EL411 include:

  • Bolt deadlocks when door closes
  • Bolt collapses into lock case as door is opened (push or pull)
  • Inside handle always operates
  • Control switches – bolt collapses when power on
  • Monitoring – Request to exit (RQE) on inside handle


The door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). The inside handle always opens the lock.

Order the ABLOY EL411 electric bolt narrow door lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
