ACT 10 Digital Keypad entry system 2 code entry

Discover the ACT 10 digital keypad made of vandal resistant die cast zinc with backlit stainless-steel keys, ideal for door and gate access control.

From £166.79 (Inc. VAT)

By: ,

Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

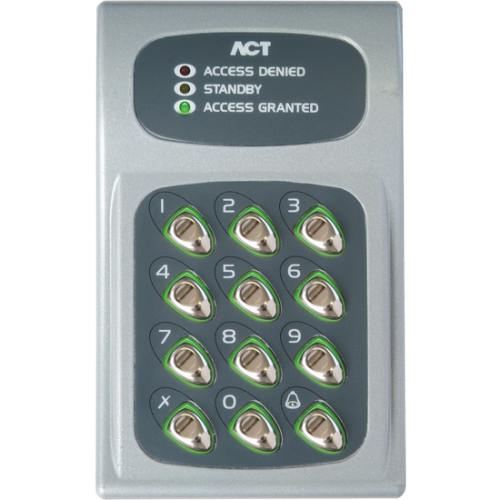

ACT 10 Digital Keypad Lock



The ACT 10 digital keypad at Electric Locking Systems is a sturdy and durable unit. The pin only digital keypad is for standalone doors, a multiple purpose  product including access control, door monitoring and interlock applications. The keypad allows 10 user codes, 2 output relays for 2 doors and 2 user groups.

The ACT 10 keypad can be used with a flush kit or weather shield.

ACT 10 Specifi­cation:

  • Operating Voltage: 12/24 Volts AC/DC
  • Current Consumption: 40/120 mA
  • Weight: 700 grams
  • Operating Temperature: -10 to +50 C
  • Dimensions (HxWxD): 138 x 87 x 37 mm
  • Mounting: Surface or Flush
  • Installation: Indoor or Outdoor

ACT 10 keypad features:

  • push to exit input
  • incorrect code lockout
  • door monitoring / contact input
  • tamper output
  • fire alarm override
  • interlock
  • toggle mode
  • 12 – 24 Volt AC / DC supply
  • 2 x 5 amp, 30 Volt DC relays
  • 2 x 100 mA Darlington Driver outputs
  • zinc diecast housing, stainless steel keys
  • keypad backlighting
  • indoor / outdoor (IP54)

Order the ACT 10 digital keypad online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
