ACTpro EM1050e Keypad and Proximity Reader

View the ACTpro EM1050e keypad and proximity reader for ACT RFID & HID key access cards and fobs.

From £239.99 (Inc. VAT)

By:



Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

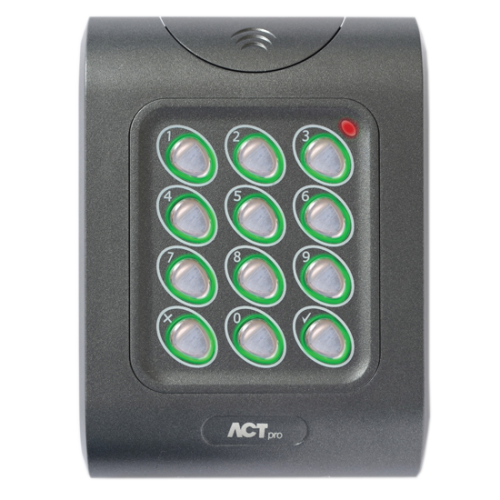

ACTpro 1050e Keypad & Card Lock

Quantity

+

The ACTpro EM1050e is a multi-format keypad and proximity reader for use with the ACTpro range of products. It supports ACT RFID cards and fobs as well as 3rd party tokens including HID cards. The ACTpro EM1050e can be surface or flush mounted and is suited to both indoor and outdoor installation.

The ACTpro RFID card reader may be installed in exposed outdoor conditions (IP67) The maximum distance between the ACTpro 1050e and the ACTpro controller or door station is 100m with 12V DC (up to 30m with 5 V DC) Use 8 core screened cable to connect the ACTpro reader to the ACTpro controller and door station.

The ACTpro proximity reader can be paralleled for entry and exit readers to a maximum current of 500mA if powered from the ACTpro 1500 or ACTpro 100e door stations.

Features:

  • ACTpro x key access cards and fobs supported
  • Hid cards and fobs supported
  • “Clock & data” or “wiegand” output
  • Tri-colour led indication
  • Built-in bleep tone for audible indications
  • Robust polycarbonate housing
  • Keypad backlighting (on request)
  • Potted electronics
  • Indoor / outdoor (ip67)
  • Surface / flush
  • Mounts on standard single gang electrical back box

Order the ACTpro EM1050e keypad and proximity reader online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
