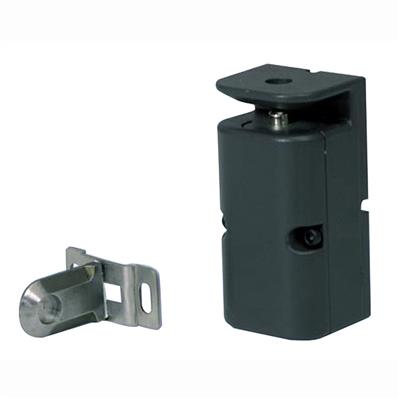

Alpro ACL200 Cabinet Lock 12/24 DC fail open/secure

The Alpro ACL200 electronic cabinet lock is designed to be fitted in display cases, cabinets and lockers with either swing or sliding doors requiring electronic control and were keys are not a practicable solution.

From £151.19 (Inc. VAT)


Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

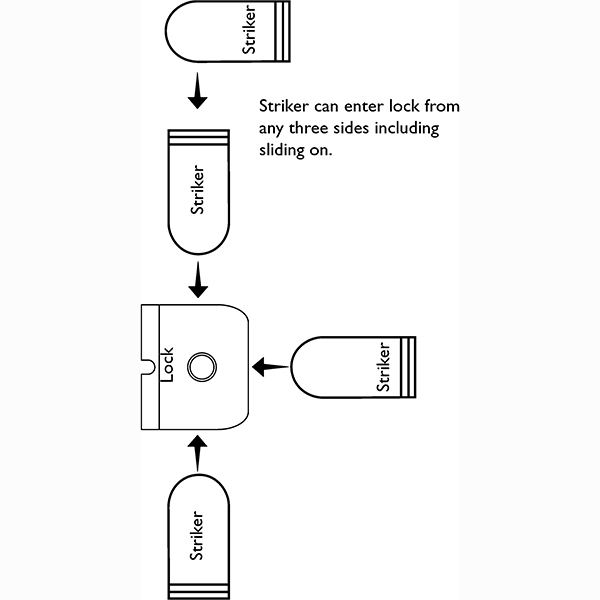

The innovative design of the Alpro ACL200 electronic cabinet lock enables the lock to be fitted vertically or horizontally whilst receiving the striker plate from the front, side or slide entry positions.

It offers maximum flexibility and alignment adjustment whilst maintaining an excellent level of security for its use. We offer the following options of the Alpro ACL200, including fail safe and fail secure lock versions:

12vDC cabinet lockFail open/PTLACL212 PTL
12vDC cabinet lockFail secure/PTOACL212 PTO
24vDC cabinet lockFail open/PTLACL224 PTL
24vDC cabinet lockFail secure/PTOACL224 PTO


Features Include:

  • CE approved
  • 3 Year guarantee

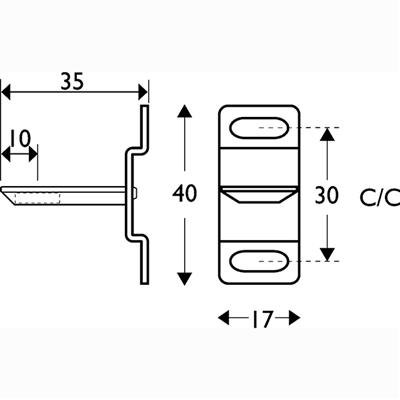

  • Stainless steel striker
  • Holding force of 250Kg
  • Flexible alignment with 5mm vertical/horizontal adjustment after installation
  • Power consumption of 180 mA – 12vDC continuous (+/- 15%) and 90 mA – 24vDC continuous (+/- 15%)
  • Compact case size of 70mm (H) x 35mm (W) x 30mm (D)

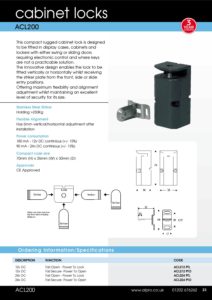

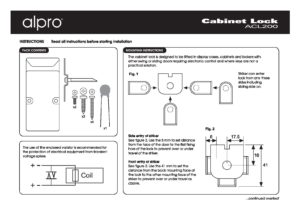

  • For detailed product and installation details please see product information tab above.

Order the Alpro ACL200 electronic cabinet lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
