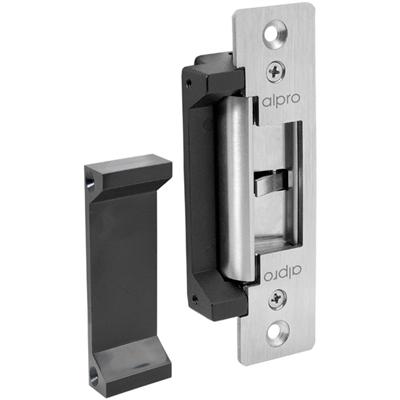

Alpro EL900 Electric ANSI Electric Strike Release

The EL900 ANSI electric door strike is a compact electric strike with long or short faceplates for use in metal and timber applications. An extension lip is also included within the kit. It has a 35mm deep, compact stainless steel body design.

This electric strike is further available with or without monitoring and a full fixing kit is also supplied.

Features Include

• Innovative function change over
• Compact Body
• Low Current Consumption
• Accessories supplied as standard
• 3 Year Guarantee

Construction

• Compact body design – 35mm depth

Function

• Innovative function change over from fail secure (PTO)/fail open (PTL)

Electrical Features

• Low current consumption

Accessories

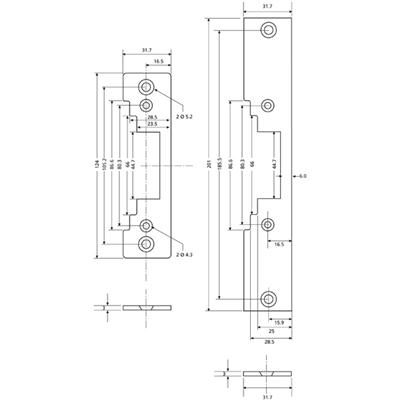

• Long and short ANSI stainless steel faceplates supplied as standard
• 25mm extension supplied as standard
• Mounting Kit supplied as standard

Technical Information

• Power consumption and current draw
• 12vDC – 300mA
• 24vDC – 150mA

Wiring Monitoring

• Red + Blue NC
• 12vDC – Green C
• Red Yellow
• The EL900 can be used in either fail open (PTL) or fail secure (PTO) mode.

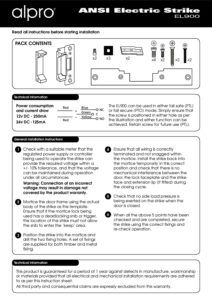

• Simply ensure that the screw is positioned in either hole as per the illustration and either function can be achieved. Retain the screw for future use (PTO).
