Alpro EB1001 Solenoid Electric door Bolt Lock

The Alpro EB1001 is available as a fail safe, dual monitored 12V DC electric bolt lock. We stock the following:

• 12vDC electric bolt lock in Fail open/PTL. Product code: EB1001/34MM/R1
• Surface mounting kit in chromated steel. Product code: EB1001/SMHKIT 34MM
• To order the surface housing please order the bolt first add to basket then reset selection, select accessories choose option of surface mount kit to order the housing then add to basket.

Features of the Alpro remote access lock:

• Concealed mortise mounting
• Auto relock function
• Door & bolt position sensor
• Versatile installation
• 3 Year guarantee
• Will work with access control and door entry systems

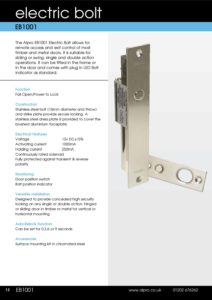

• For more detailed info on product and installation please see product information tab above and video tab.

Construction:

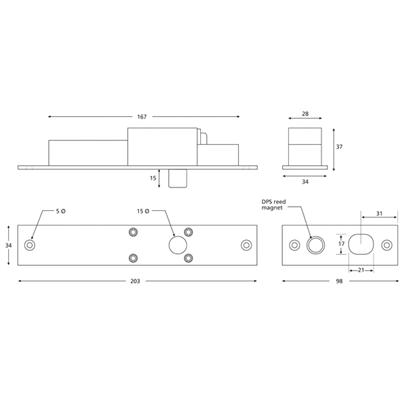

Stainless steel bolt (15mm diameter and throw) and strike plate provide secure locking. A stainless-steel dress plate is provided to cover the brushed aluminium faceplate.

Electrical Features:

• Voltage 12v DC±15%
• Activating current 1000mA
• Holding current 250mA
• Continuously rated solenoid
• Fully protected against transient & reverse polarity

Monitoring:

• Door position switch
• Bolt position indicator

Versatile Installation:

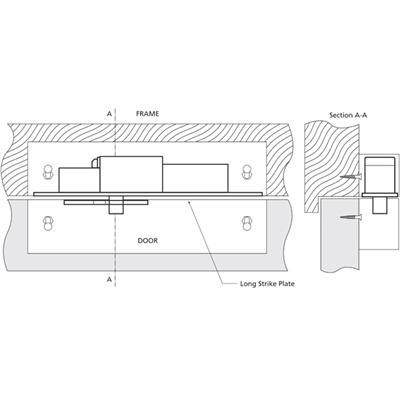

The Alpro EB1001 is designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Auto Relock Function:

Can be set for 0, 3, 6 or 9 seconds

Order the ALPRO EB1001 high security lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
