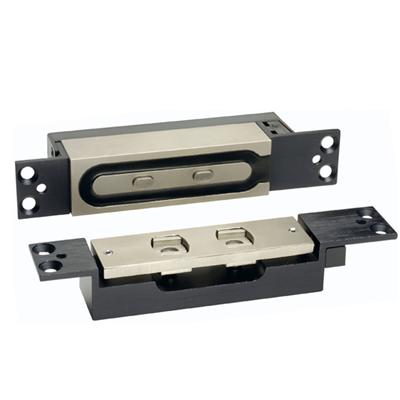

Alpro EMS1200 Small Magnetic Shear Lock

The ALPRO magnetic shear lock EMS1200 is available in mortice or surface mount models and is a small magnetic lock yet maintains a holding force of 1200kg. The shear magnet includes a built in PCB controller with switch selectable features and plug in 3 metre flying leads. Please note this is not suitable for vertical installation.

From £302.39 (Inc. VAT)


Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!



Discover the ALPRO EMS1200 shear magnetic lock at Electric Locking Systems is available in Mortice or Surface Mount models (inc. Glass Mount) and offer slimline dimensions whilst maintaining a holding force in shear of 1200kg. Other benefits include built in PCB controller with switch selectable features and plug in 3 metre flying leads.

This shear magnet offers high physical security in a compact design with versatile installation. ALPRO locks offer a 5 year guarantee with the EMS1200, which is CE approved and will work with most access control and door entry systems.  Use the maglock on single or double action doors

If you would like to order the surface mount or install the small electronic lock with glass doors please call or email us for advice on parts required before ordering, for reference please see product information.

Important note: this ALPRO lock is not suitable for vertical installation

We stock the following versions:

  • Mortice Shearlock – 12/24vDC Door Position Switch – monitored complete with on board PCB/Plug in 3m flying leads. – EMS1200M
  • Surface Mount Shearlock as above complete with Surface Mount Housing x2 – EMS1200S
  • Mortice Shearlock as above complete with Surface Mount Housing x1 – EMS1200SM

For more information about EMS1200 accessories and backup batteries, please contact us:

  • Aluminium Frameless Glass (10/12mm) Door Clamp for use with EMS1200S. One per Surface Housing e.g. 2 required for use with EMS1200S. 1 required for use with EMS1200SM – GDC1200
  • Aluminium Filler Plate 1mm thick x 1 – FP1200-1
  • Aluminium Filler Plate 2mm thick x 1 – FP1200-2
  • Aluminium Filler Plate 6mm thick x 1 – FP1200-6
  • 12v 2 Amp Power Supply Unit – IECPSU12V2AMP
  • 24v 2 Amp Power Supply Unit – IECPSU24V2AMP


  • Switch selectable adjustable time delay 0-30 secs
  • Misalignment – Multiple auto relock x100
  • Fully Monitored Hall Effect
  • Max 24v DC@1 amp
  • Door Position Switch
  • Single or Double Action Doors
  • Complete with built in transient and reverse polarity protection and continuously rated solenoid


  • Mortice and Surface Mount Model


  • 230mm (L) x 51mm (W) x 51mm (D)
  • Magnet – 163mm (L) x 30mm (W) x 35mm (D)
  • Armature – 163mm (L) x 30mm (W) x 32mm (D)

Current Consumption

  • Multiple Voltage Input
  • Any voltage from 12v DC -10% to 24v DC +15%.
  • Volts Current – Activate Current – Hold
  • 12vDC 1150mA 290mA
  • 24vDC 1550mA 160mA
  • Max Armature Pull In
  • 12v DC – 4mm
  • 24v DC – 5mm

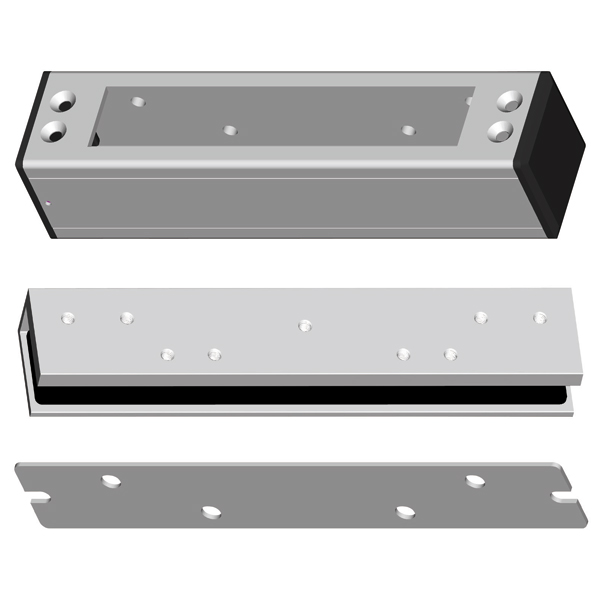

  • For use with Surface Mount Housings
  • Aluminium Glass Mount Bracket suitable for
  • 10-12mm Glass, 230mm (L) x 30mm (W) x 45mm (D)
  • Filler Plates, 225mm (L) x 1/2/6mm (W) x 38mm (D)
  • Cycle Tested
  • SGS – 500k operations

Order the EMS1200 online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
