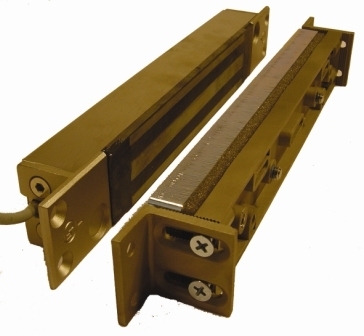

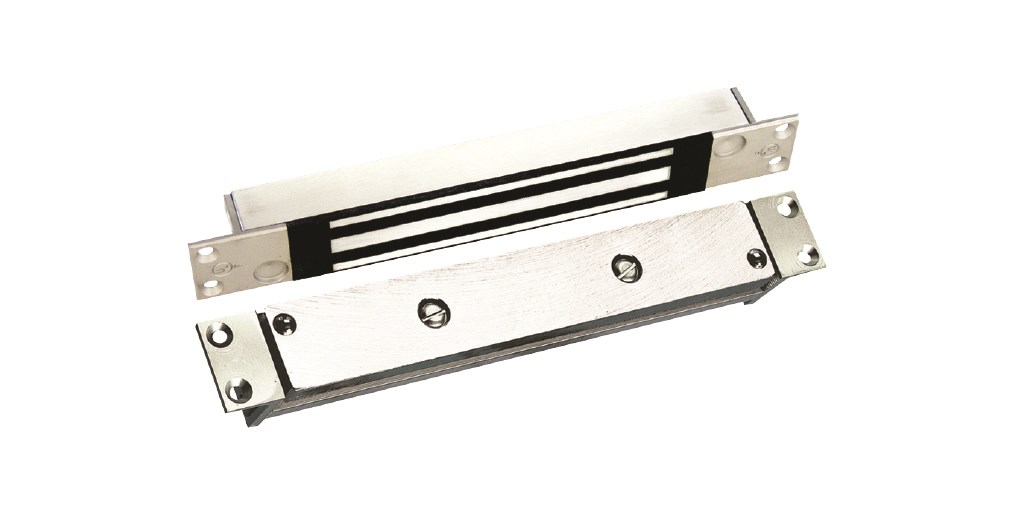

Securitron SAM Shear Magnalock

The ASSA ABLOY Securitron SAM shear magnalock is a magnetic shear lock with 1200 lbs of holding force which mounts fully concealed into wood, steel, aluminium and installed in any position on the door.

From £826.79 (Inc. VAT)

By: ,

Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!



The Securitron SAM provides hidden strength at any angle for any application. Ideal for traffic control or medium security and with its flexible mounting options solutions the most challenging door control situations. The SAM Shear Aligning Magnalock has mounting options for a single door or each leaf on a pair of doors and can be on a sliding, in-swing, out-swing or swing-through door. It mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.

The sliding door electromagnetic lock has efficient, low power usage and is fully sealed for weatherproof operations. The shear magnetic is rust resistant and is recessed for an aesthetically pleasing finish.

Please note we only supply two versions:

  • SAM Shear Magnalock – 12/24VDC, Self Aligning
  • SAMB Shear Magnalock – 12/24VDC, Self Aligning, MBS

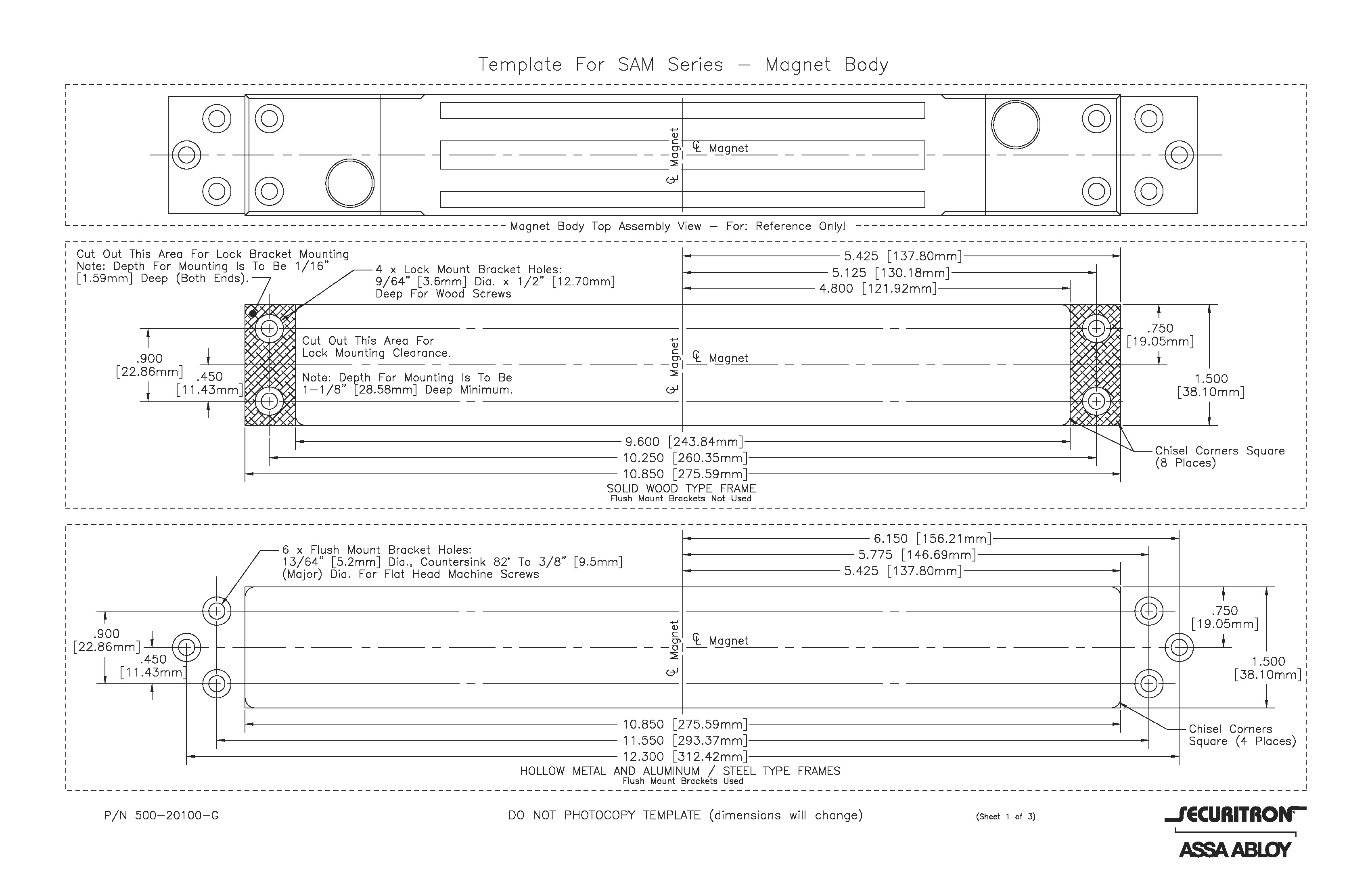

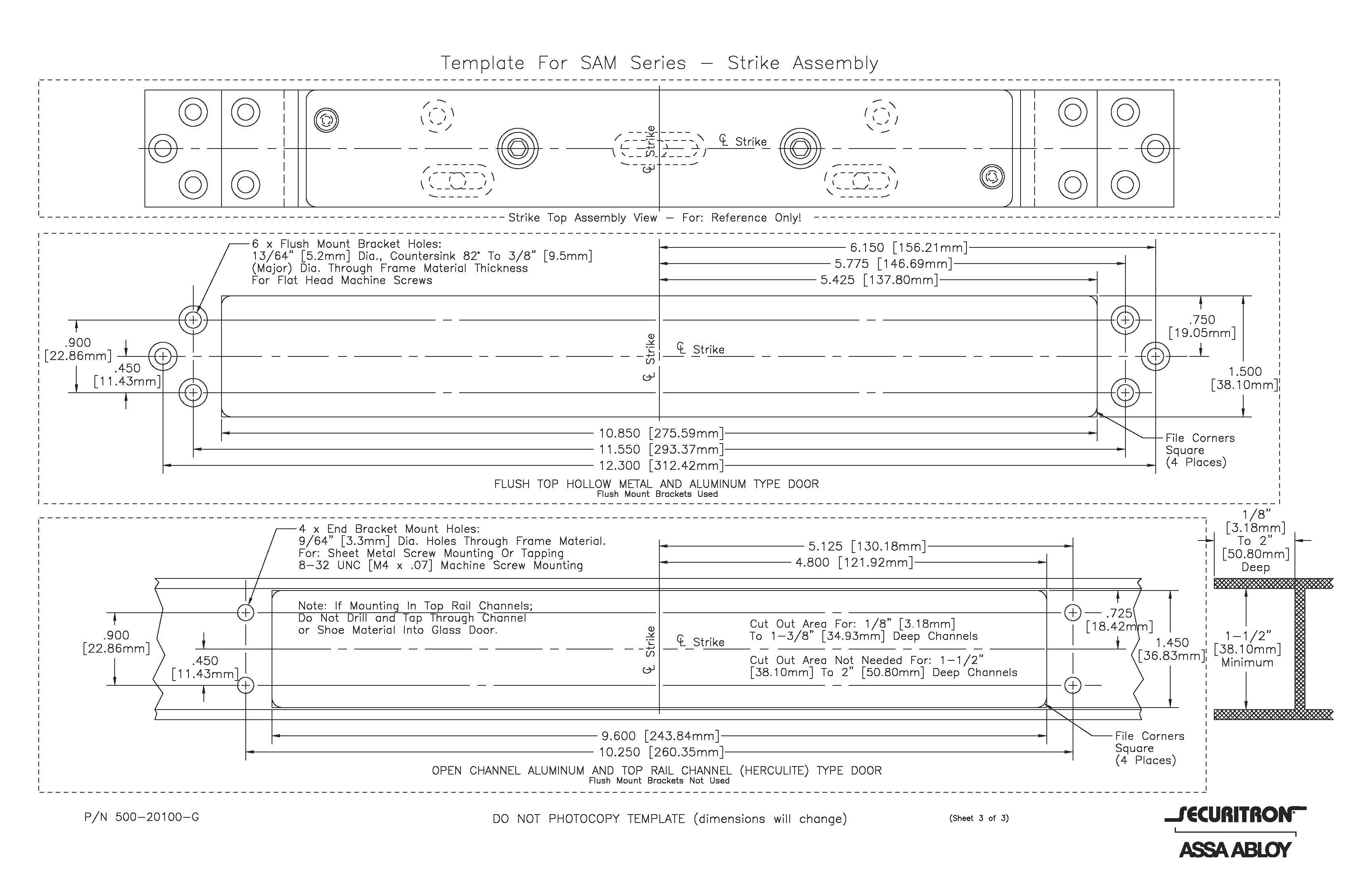

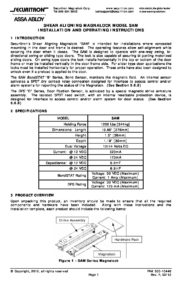

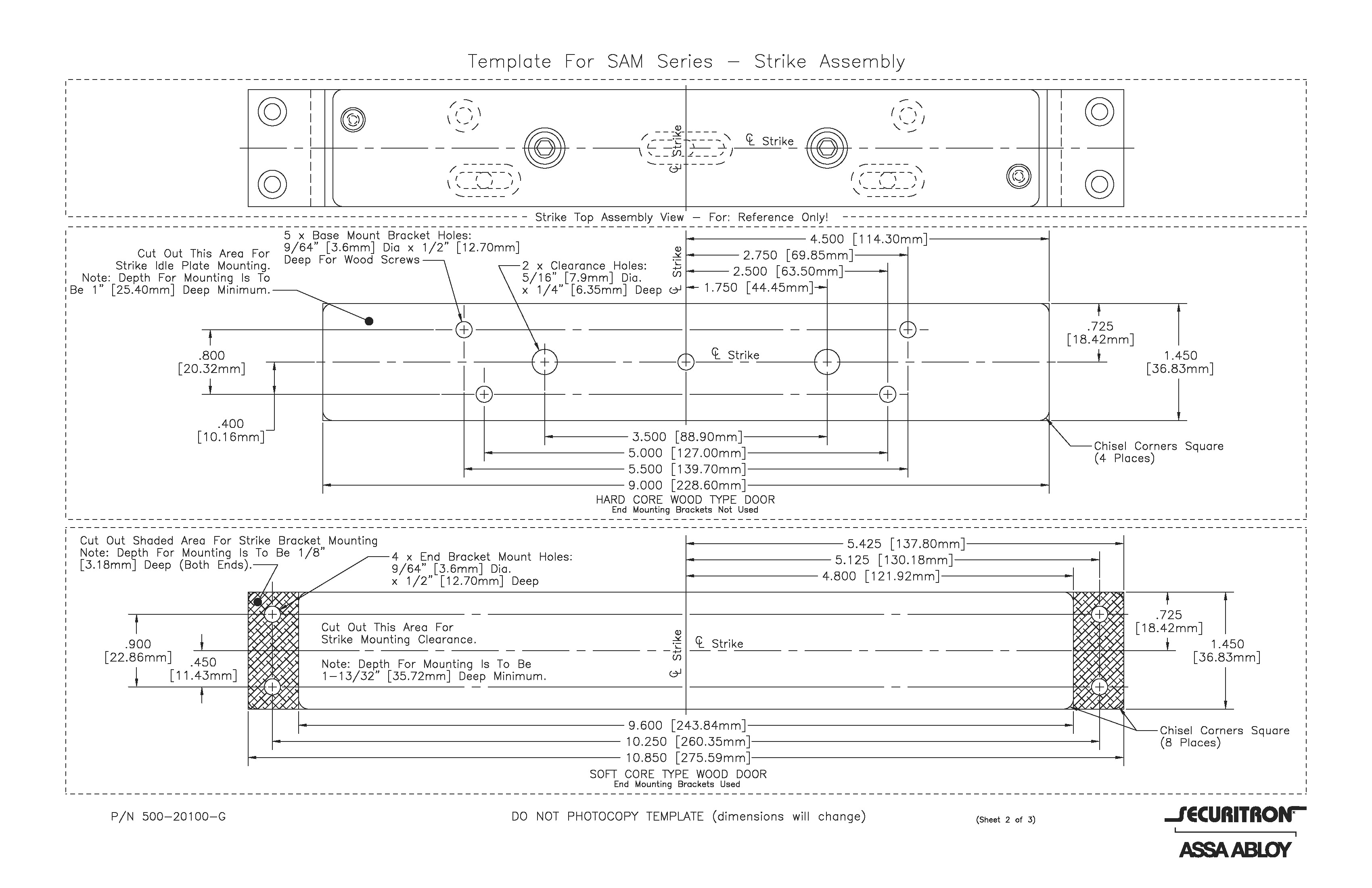

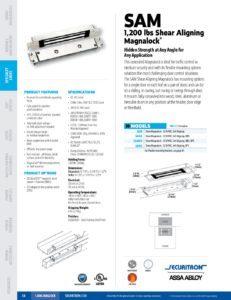

  • Please see product information tab above for more detailed product and installation information.

Please call us to learn more about how to order:

  • SAMBD Shear Magnalock – 12/24VDC, Self Aligning, MBS, DPS
  • SAMD Shear Magnalock – 12/24VDC, Self Aligning, DPS

Product Features

  • Patented instant release circuit – no residual magnetism
  • Fully sealed electronics – tamper proof and weatherproof
  • Mounted using steel machine screws
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Hardware accessories available to configure any opening type including mounting brackets
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Automatic dual voltage – no field adjustment required
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
  • UL Listed
  • MagnaCare® lifetime replacement, no fault warranty

Specification Data:

  • Holding Force: 1200 lbs. [544 kg]
  • Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC
  • Operating Temperature: -40 to +140F [-40 to +60C]
  • Shipping Weight: 6 lbs.

Order the Securitron SAM online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
