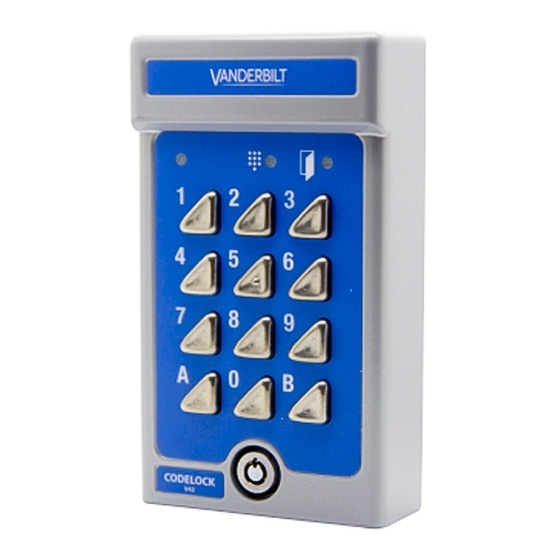

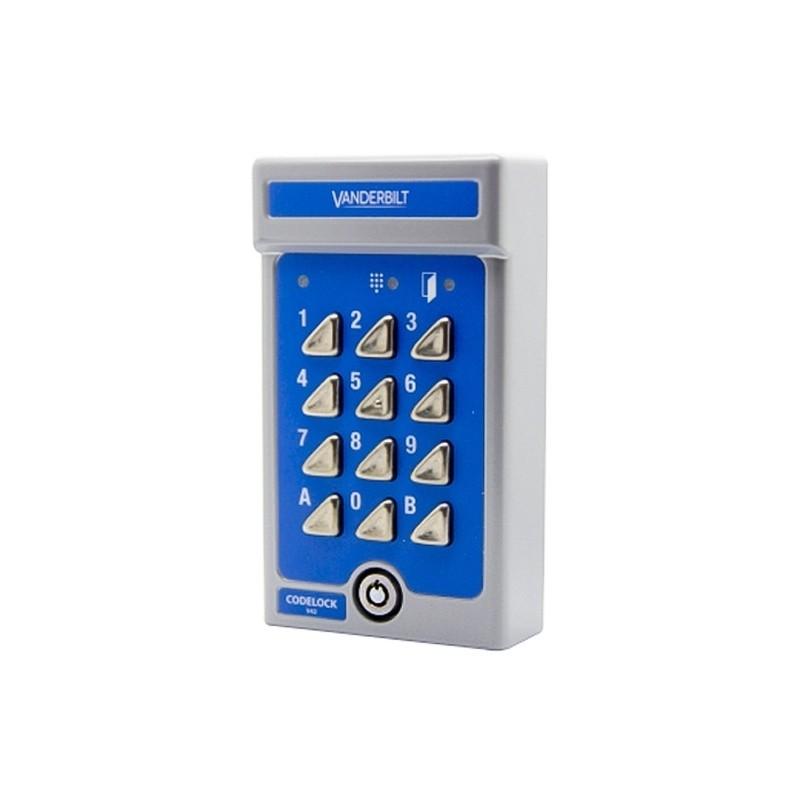

Vanderbilt V42 Keypad 12 to 24V AC/DC
View the Vanderbilt V42 keypad, formerly known as the Bewator Siemens Codelock K42, has a capacity of two four code options for indoor & outdoor mounting. Compact and easy to use, the door or gate keypad features a modern design and is known as one of the best selling keypads in the world.
By: Vanderbilt
Choose the Vanderbilt V42 keypad at Electric Locking Systems as your security keypad door entry system. Its IP55 rating, dual 12V-24V DC voltage allows 2 user codes so that one can be held my residents and another by a landlord, for example. All settings are made directly in the unit.
Features of the Vanderbilt V42 keypad:
- Operating voltage: 12 to 24 VAC/DC
- Current consumption: 8 mA in standby
- Inputs: Exit button requests with delay. Two separate for code disable.
- Outputs: Voltage-free relay contact, max. 1 A, 28 VDC.
- Opening time: 1–30 sec.
- Code capacity: Two four-digit codes
- Environment: Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
- Housing protection: IP54 design
- Housing: Cast metal with stainless steel buttons and security lock.
- Colour: Grey
- Dimensions (W x H x D): 80 x 140 x 40 mm
- Weight: 0.72 kg
- Operation temperature: -35 to +55 °C
Order the electronic access control keypad online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
