Videx 4000 Series Audio Intercom Systems with Keypad FREE UK SHIPPING!

Based on the Videx 4000 series’ modular design, this audio intercom system features a digital keypad, two-way speech, electronic call tone and lock release facility. We stock the Series 4000 1 way surface mounted Videx audio intercom system with keypads for purchase online. Please call to order 2 to 12 way and flush mounting kits with keypads.

From £274.99 (Excl. VAT)

By:



Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Surface Mount
DK4K1S
1 Way Audio/Keypad Entry with Surface Mount

Quantity

+

The Videx 4000 series audio intercom system is an excellent door entry system for flats, apartments and offices where visitors can introduce themselves and access can be granted via the handset or a pin in the digital keypad.  The door station is available surface of flush mounting with up to 12 call buttons each with a back lit name plate. We stock the Videx 4K-1S/CL one way surface mounted intercom system with keypad for direct purchase online, but can also offer the following over the phone:

  • 4K-2S/CL to 4K-12S/CL – 2 to 12 way surface mounted intercom system with
  • 4K-1/CL to 4K-12/CL – 12 way flush mounted intercom system with

An incorporated digital keypad has 3 dry contact relay outputs, timed 1-99 seconds or latching.

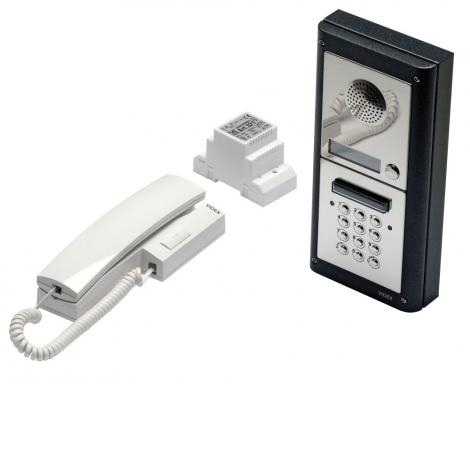

This intercom and keypad system includes:

  • 1 x V-4836-1 1 Button speaker module
  • 1 x V-4881 Surface mounting box
  • 1 x V-3011 Smart Line wall mount handset
  • 1 x V-321 Power Supply

The standard finish is a stainless steel fascia with a gun metal grey surround.  An aluminium fascia (/A) and a chrome (/C) or gold (/G) surround are also available.  The telephone is wall mount with a lock release button and a three position call tone volume control.  Up to 2 additional handsets can be connected in each apartment.

Features:

  • Audio intercom kit based on the 4000 Series
  • 1-12 call buttons available with illuminated name plate
  • Surface or flush mount door panels
  • Smart line handset with lock button and 3 position call tone volume control
  • Connect up to 3 handsets per call button
  • 3 code, 3 relay codelock module

Technical Details:

  • Number of entrances – 1
  • Of cores to telephone – 4
  • Recommended cable type – CW1308
  • Maximum No. Of telephones per call button – 3
  • Lock output – Dry contact (C NO NC)
  • Lock time – 1-99 seconds or latching
  • Telephone model – 3011 (call tone)
  • PSU model – 321 (13Vac)
  • Amplifier module – 4836
  • Codelock module – 4800M (2x PTE inputs, 1 per relay)
  • Number of codes – 3
  • Code length – 4-8

Order the Videx 4000 series audio intercom system with keypad online with worldwide delivery, same day dispatch and free technical support.
