Videx 4000 Series GSM Intercom Systems

View the Videx 4000 Series GSM audio intercom to answer calls from your door or gate via your mobile phone, so you never miss that important caller. We supply the 1 button GSM intercom kit with surface mounting and proximity GSM kit (PRO) for purchase online. Please call to order 2 to 12 button and flush mounting kits.

From £1,019.99 (Inc. VAT)

By:



Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

GSM4K-1S
1 Call Button

Quantity

+

The Videx 4000 GSM intercom system at Electric Locking Systems allows you to answer calls from your door or gate via your mobile phone. It is a self contained GSM intercom system with 1 to 12 call buttons, requiring only a SIM card – door panel, PSU and antenna are included. We offer the GSM4K-1S – 1 button surface & proximity GSM kit (PRO) for purchase directly online but can also supply and quote for:

  • GSM4K-2S to the GSM4K-12S 2 to 12 button surface and proximity GSM kit (PRO)
  • GSM4K-1 to the GSM4K-12 1 to 12 button flush and proximity GSM kit (PRO)

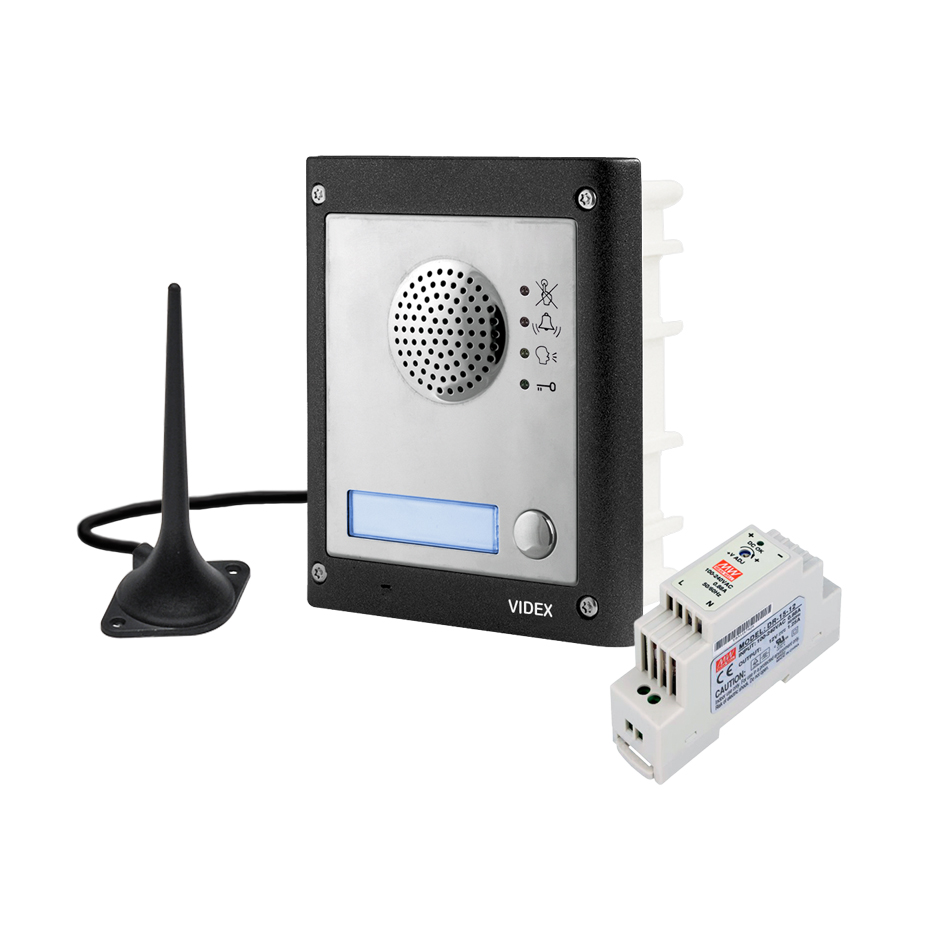

Kit Includes

  • Surface mounted 1 button panel with name windows
  • GSM antenna V-433
  • 12V DC 2A Power supply V-AMR2-12
  • Surface box V-4883

Videx 4000 GSM systems are available for single call button applications up to 50 apartments, making it an ideal door entry system for flats. All feature the facility to divert to additional numbers if the first is busy or unanswered. Programming is carried out via SMS messaging or PC software using the micro USB connection. Including an exit button input, auxiliary inputs and outputs and dry contact relay, the Videx GSM PRO can be powered using 12-24V ac/dc. Additional features include integrated proximity access (for up to 1000 users) and call progress announcement both verbally and with four call progress LED’s. An event log is maintained within the entry panel and can be integrated via the USB port and the bespoke PC software includes many features to simplify the installation and programming process.

Features:

  • Up to 50 call buttons
  • 4 telephone numbers per call button (1 primary and 3 diverts)
  • 1000 dial to open numbers
  • 1000 user integrated proximity access
  • Voice annunciation
  • 4 Call progress LED’s
  • Programming by SMS or PC software
  • Push to exit input
  • 2 auxiliary inputs
  • 2 auxiliary outputs
  • Dry contact relay
  • Micro USB connection
  • RS485 bus connection

Technical Details:

  • Number of entrances: 1
  • Lock output – Dry contact: (C, NO, NC)
  • Auxiliary outputs: 2 x Open collector
  • Auxiliary inputs: 2
  • Dial in to open numbers: 1000
  • Divert calls per button: 1 to 3 numbers each
  • Power supply: 12V-24V ac/dc
  • Programming methods: SMS or PC
  • USB connection: Yes, micro USB
  • RS485 connection: Yes (A, B, 0V)
  • Event logging: 4000 Events
  • PSU mode: DR15-12
  • Amplifier module: 4810
  • Expandable to 50 buttons

Order the Videx 4000 series GSM door and gate intercom system online with worldwide delivery, same day dispatch and free technical support.
