Videx 4000 Series Video Intercom Systems

The Videx 4000 series video intercom system is an ideal door entry system for flats with video intercom, adjustable call tone and time, camera recall and timed mute facility with LED indication. Buy the one way one button surface mount Videx 4000 video kit online or call us for pricing on the two way, two button video intercom or the flush kit.

From £902.39 (Inc. VAT)

By:



Product Specification:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

CVKC4KS
1 Call Button
Surface Mount

Quantity

+

.

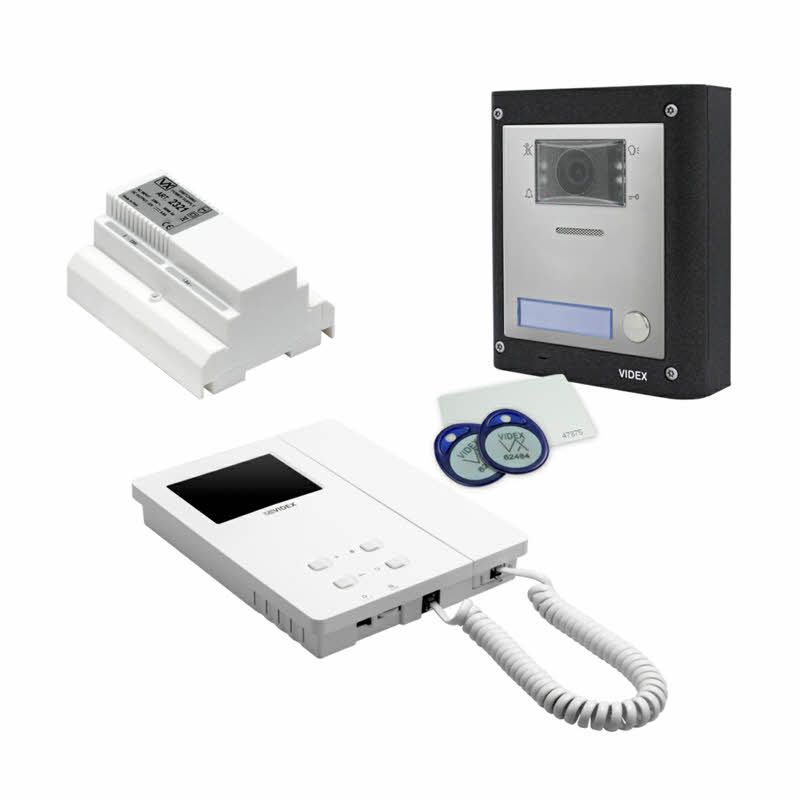

Videx ESVKX-1S/6286 4000 Series, 1-Way Surface 2-Wire Video Kit with Proximity and 6286 Monitor

The 4000 series range of True 2 wire colour video kits with proximity (ESVKX series), are available as flush or surface kits with a choice of 4 different videophone options from the 6200, 6300, 6400 and 6700 series range.

Installations could not be easier thanks to the common 2 wire BUS system (VX2300) using two non-polarity twisted pair wires (the system does not require coaxial cable). The video kits are ideal for small scale 1-to-1 installations or low-rise apartment blocks (up to a total of 12 apartments max. with the inclusion of additional 4000 series button expansion modules), but can also be expanded up to a maximum of 8 entrances where additional 2301N multiple entrance switchers are required.

The ESVKX series video kits are available as 1 or 2 button 4000 series colour video kits where the flexible design allows for up to a total of 4 videophones per call button with the facility for intercommunication between the videophones in the same apartment or intercommunication between videophones in different apartments.

Note: 1 way video kits are supplied with 1 x 955/C prox. card and 2 x 955/T prox. key fobs.



Features:

  • Available as 1 & 2 button colour video kits (however expandable up to 12 buttons)
  • Flush or surface mount door entrance panels based on the 4000 series range
  • Video kits available with either 6200 series, 6300 series, 6400 series or 6700 series videophones
  • Expandable up to 8 entrances (with additional 2301N multiple entrance switchers)
  • Call a total of up to 4 videophones per call button
  • Intercommunication between videophones in same apartment or between different apartments
  • DDA compliant call progress LED’s and reassurance tones
  • High quality colour camera with 4 illumination LEDs
  • Selectable camera recall facility (including external camera input)
  • PTE input and built-in dry contact relay (including selectable capacitor discharge)
  • Microphone, speaker volume and balance adjustments
  • Built-in proximity reader (for up to 50 users)



Technical Specifications:

  • System: VX2300 video kits
  • Power Input and PSU model: 32Vdc (0.8A); 2321 PSU
  • BUS system: True 2 wire digital BUS (32V Ñ 35Vdc)
  • No. of Entrances: 1 (expandable up to 8 max. with 1x 2301N entrance switcher per 4 entrances, 2 max.)
  • Max. No. of call buttons: 2 (expandable up to 12 buttons with additional 4000 series button expansion modules)
  • Max. No. of videophones per call button: 4
  • Videophone Options: 6286, 6388, 6488 or 6788
  • Speaker/Camera Module: 4384X-1 (1 way video kits); 4384X-2 (2 way video kits)
  • Camera: High Quality CMOS camera with 4x white illumination LEDÕs (10¡ tilt adjustment)
  • DDA Compliant: 4 call progress LEDs – BUSY, CALL, SPEAK and DOOR OPEN with call progress reassurance tones
  • Proximity: (behind nameplate window) up to 50 users max.
  • Compatible Prox. Cards/Fobs: 955/C (card), 955/T (fobs)
  • PTE Input: 1 (switched 0V push-to-make input)
  • Lock Release: dry contact relay (C, NO and NC) with selectable capacitor discharge
  • Recommended Cable: Videx CM2 or CAT5 UTP (unscreened twisted pair) Ñ note that additional cabling will be required for lock release connections and/or 3rd party devices.
  • Max. Cable Distance using CM2: up to 400m total (200m between panel and PSU and then a further 200m between PSU and videophone)
  • Max. Cable Distance using CAT5 UTP: up to 140m total (70m between panel and PSU and then a further 70m between PSU and videophone)

We stock the Videx ESVKX-1S/6286 4000 Series, 1-Way Surface 2-Wire Video Kit with Proximity and 6286 Monitor:



PLEASE CALL FOR PRICING FOR 2 WAY OR MORE SYSTEMS
