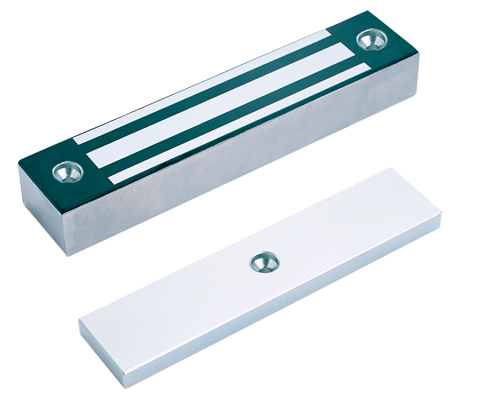

XPR IGEM 4700F Weatherproof Magnetic Lock ip rated

The IGEM 4700F weatherproof magnetic lock by XPR access control is heavy duty and finished in strong AISI 304 stainless steel for door and gate applications.

From £220.79 (Inc. VAT)


Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!



The XPR IGEM 4700F magnetic lock by Electric Locking Systems is a high quality compact external maglock with 100% protection from the elements with a completely sealed unit.

It provides higher security because of its quality, non-corrosive material and robustness. The XPR IGEM 4700F can be used as a standard indoor maglock but is mainly recommended by outdoor applications and hostile environments. The housing of the maglock is completely sealed, with the wiring and connections potted in resin to make the IGEM 4700F IP67 rated in addition to the ISO 9227 and ASTMB 117-90 norms.

The external maglock is ideal for railings and gates (motorized or not)


Mounting:Front mount
Holding force real tested (+/-10%):~ 4100 N/~ 920 lbf/~ 410 kgf
Voltage:12 V DC/24 V DC
Current:400/200 mA
Corrosion Proof:Salt spray test. ISO 9227, ASTM B-117 90
NO residual magnetism:Guaranteed No residual Magnetism. First quality of steel, resin and copper. No need armature plate push button, or electronic kick-off, to release the door instantly
Built-in MOV Surge Protection:Yes


Mechanical Features:

Dimensions (L x W x H): 220 x 47 x 32 mmWeight: ~ 3 kg
Operating temperature: -40ºC to + 60ºC* According tests of range done in independent laboratory.


Order the XPR IGEM 4700F weatherproof magnetic lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
