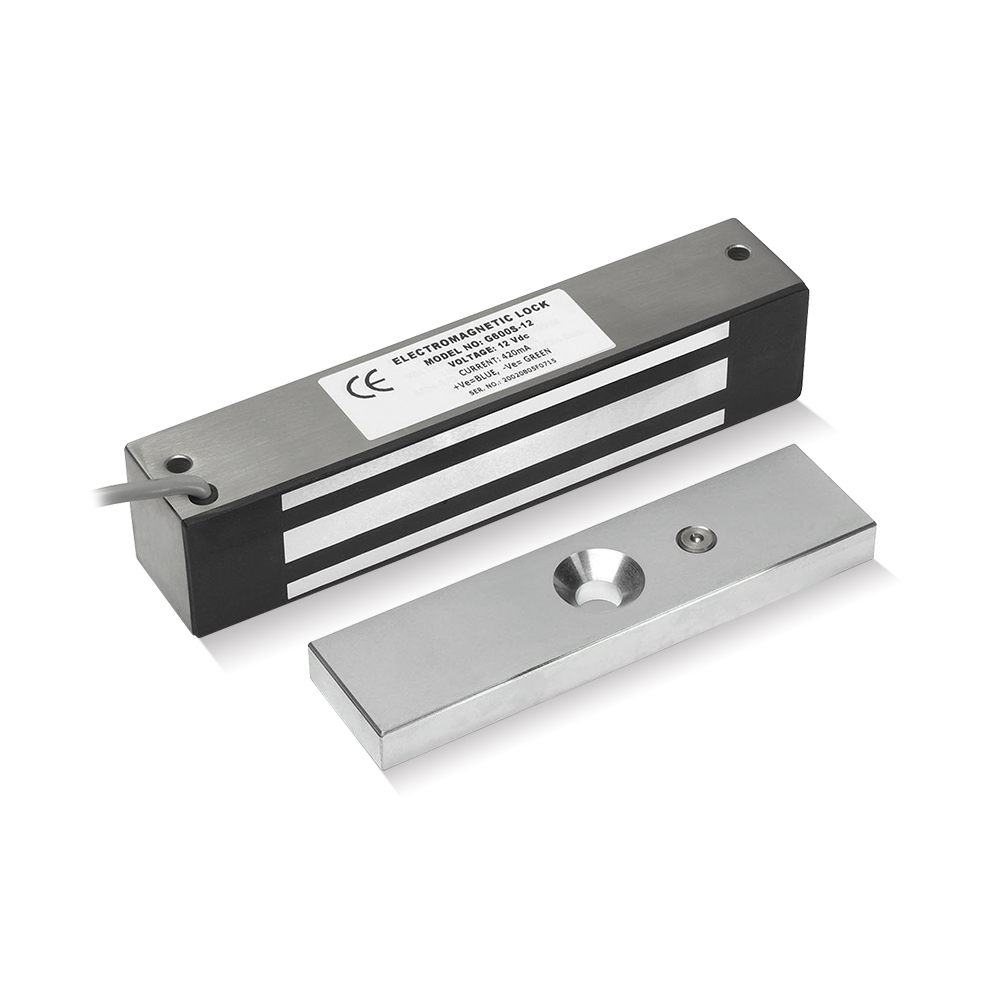

G600M Monitored Mini S/Steel External Magnet

private or restricted access perimeter GEM's highly durable external magnetic locks specifically designed for external gates either wooden / metal.

From £124.79 (Inc. VAT)

By:



Quantity

+

  • Operating voltage 12Vdc
  • Monitored
  • Stainless Steel
  • Weather resistant: IP65
  • Vandal resistant
  • Holding force up to 600lbs (272kg)
  • Voltage tolerance: ±15%.
  • Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~55°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
  • Humidity: 0~95% non-condensing.
  • Special Zinc finishes for magnet and armature plate.
  • Weight: 2.0kg (approx).

CP21-N Wiring Diagram
