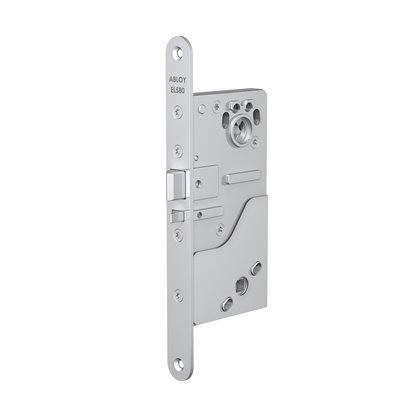

ABLOY EL580 Electric Solenoid Lock

View the ABLOY EL580 electric solenoid lock, handle controlled for wooden and solid medium traffic doors. Please note that a 65mm back set is standard but we can supply 55mm, 60mm, 80mm or 100mm – please call for prices and delivery times.

From £563.99 (Inc. VAT)

By: ,



Choose your product options:

Please refer to the product information below if you are unsure of which product to choose; alternatively please call, email or live chat us!

Quantity

+

The ABLOY EL580 electric solenoid lock with latch bolt and solid spindle at Electric Locking Systems is a handle-controlled lock for use in conjunction with access control systems, including keypads and proximity readers for door fobs or key access cards.

Application

  • For wooden or metal doors, with deadlocked latchbolt, fail locked/fail unlocked
  • Outside handle controlled
  • Bolt position and handle operation
  • For use with PBE-001 for EN1125 exit solution

Function

Handle controlled electric locks can be set to function as fail locked or as fail unlocked. In the fail locked setting, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In the fail unlocked setting, the electrical function is reversed. The locks are always automatically deadlocked when the door is closed. In ABLOY® EL580 the outside handle is electrically controlled. The lock can always be opened by inside handle or by panic bar. In order to function correctly, the handle requires a split spindle. Mechanical opening by cylinder is always possible.

If you are purchasing the ABLOY EL560 as a replacement electric lock please ensure you have ordered the correct size lockcase (backset size) as we are unable to accept returns for this reason (the backset is measured from the edge of the door to the centre of handle or cylinder). Please call if you require a different size backset to above, such as a 55mm, 60mm, 80mm or 100mm.

Order the ABLOY EL580 electric solenoid lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
